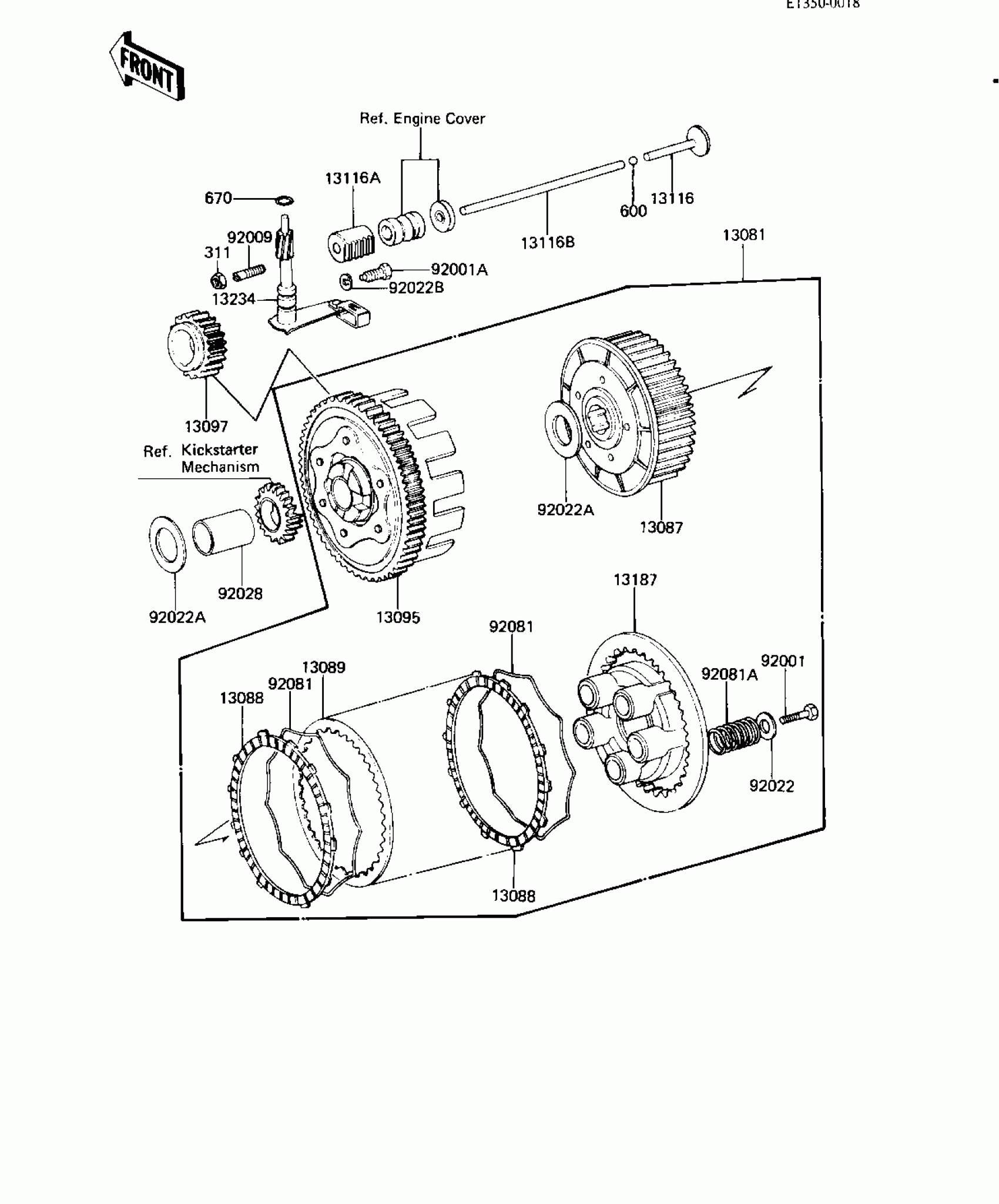

Kawasaki KE125 CLUTCH ('82-'83 A9/A10) Diagram

#

Description
Price

13081

CLUTCH-ASSY

13081-1053

Unavailable

13087

HUB,CLUTCH

13087-038

Unavailable

13088

PLATE-FRICTION

13088-1015

$20.55

13089

PLATE CLUTCH STEEL

13089-003

$14.22

13095

HOUSING CLUTCH

13095-1034

Unavailable

13097

GEAR,PRIMARY 22T

13097-1040

Unavailable

13116

PUSHER-CLTCH SPRG PLT

13116-016

Unavailable

13116A

ROD,CLTCH RELESE PUSH

13116-026

Unavailable

13116B

ROD,CLUTCH PUSH,LONG

13116-027

Unavailable

13187

PLATE-CLUTCH SPRING

13187-004

Unavailable

13234

SHAFT ASY,CLTCH RELES

13234-003

Unavailable

92001

BOLT,5X18

92003-078

Unavailable

92001A

BOLT,CLUTCH RELEASE

92003-130

$6.01

92009

SCREW,SLOTTED,6X26

92014-015

Unavailable

92022

WASHER-PLAIN,5MM

92022-167

Unavailable

92022A

WASHER,17.3X30X1.4

92022-270

$9.84

92022B

WASHER,LOCK

92031-009

$4.58

92028

BUSHING,CLUTCH

92028-138

$28.22

92081

RING-CLUTCH STEEL

13229-002

Unavailable

92081A

SPRING,CLUTCH

92081-123

$9.03

311

NUT 6MM

311B0600

$0.93

600

BALL-STEEL,7/32"

600A0700

$1.64

670

O RING,10MM

670B2010

$1.50
