1983 Kawasaki KE125 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1983 Kawasaki KE125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

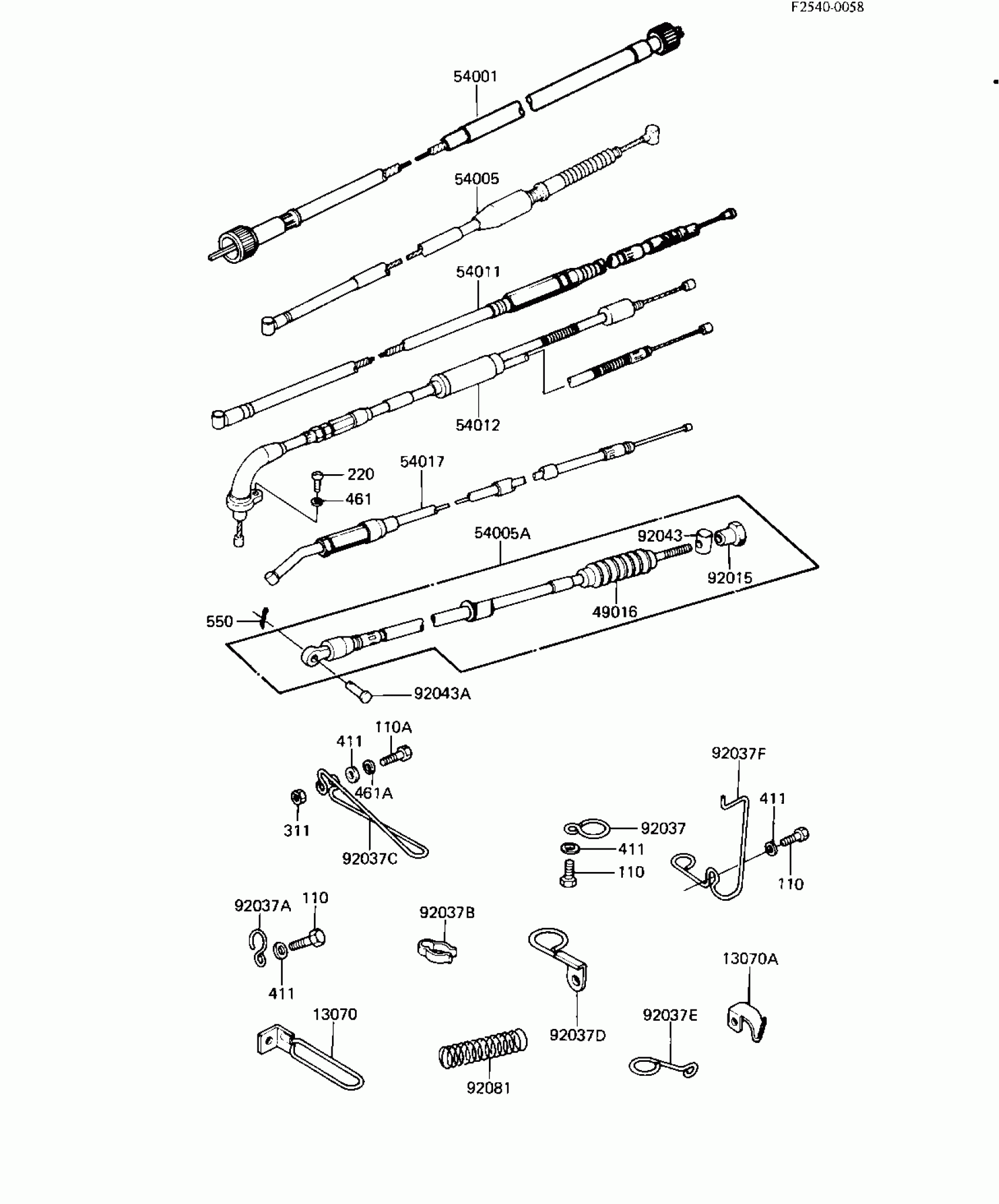

1983 Kawasaki KE125 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,CABLE

54030-011

1
Out of stock

13070A

GUIDE,CABLE

54030-012

1
Out of stock

49016

DUST COVER-BRKE CABLE

54009-007

1
Out of stock

54001

CABLE,SPEEDOMETER

54001-1035

1
Out of stock

54005

CABLE-BRAKE

54005-1032

1
Out of stock

54005A

CABLE,REAR BRAKE

54022-024

1
Out of stock

54011

CABLE,CLUTCH

54011-071

1
Out of stock

54012

CABLE,THROTTLE CNTRL

54012-1066

1
Out of stock

54017

CABLE,STARTER

54017-064

1
Out of stock

92015

NUT-BRAKE CABLE ADJST

92015-041

1
Out of stock

92037

CLAMP

92037-083

1
Out of stock

92037A

CLAMP,CABLE

92037-092

1
Out of stock

92037B

CLAMP

92037-093

1
Out of stock

92037C

CLAMP,CABLE

92037-1014

1
Out of stock

92037D

CLAMP,CABLE

92037-1015

1
Out of stock

92037E

CLAMP,CABLE

92037-1197

1
Out of stock

92037F

CLAMP,CABLE

92037-176

1
Out of stock

92043

PIN BRAKE ROD

92043-053

1
Out of stock

92043A

PIN,6X17

92043-107

1
Out of stock

92081

SPRING,CABLE SUPPORT

92081-1365

1
Out of stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

110A

BOLT-UPSET

112G0625

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
