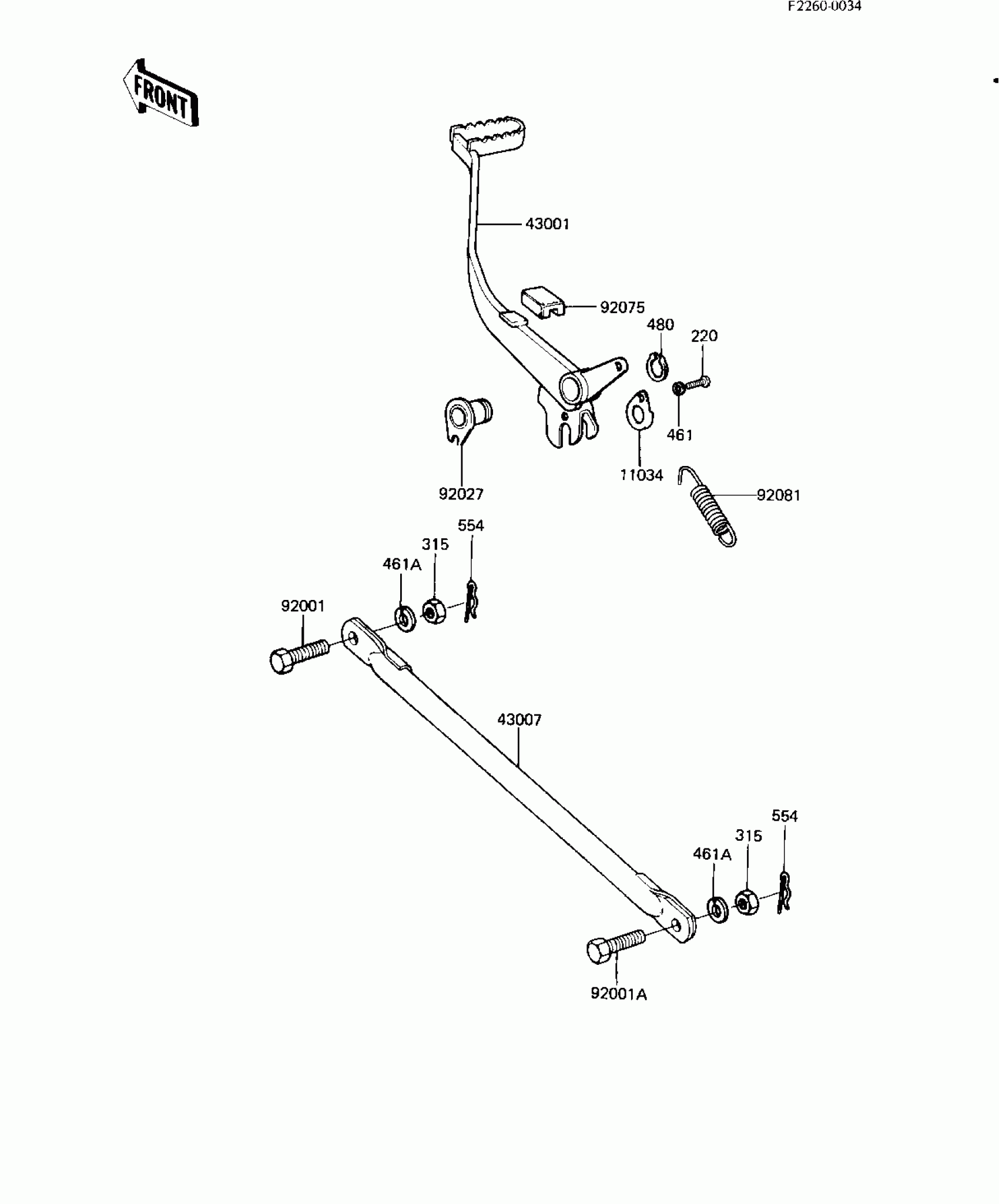

Kawasaki KE125 BRAKE PEDAL/TORQUE LINK ('82-'83 A9/A10) Diagram

#

Description

Price

11034

PLATE

43081-002

Unavailable

43001

PEDAL,BRAKE

43001-058

Unavailable

43007

TORQUE LINK,REAR BRAK

43007-048

$25.81

92001

BOLT,10X32

92003-003

$5.42

92001A

BOLT,10X25

92003-017

Unavailable

92027

COLLAR,BRAKE PEDAL

92027-210

$38.23

92075

DAMPER RUBBER,BK PDL

92075-220

Unavailable

92081

SPRING BRAKE PEDAL

43005-032

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

315

NUT-HEX-FINE,10MM

315B1000

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable

480

CIRCLIP-TYPE-C,22MM

480J2200

$3.81

554

PIN-SNAP,8MM

554A0800

Unavailable
