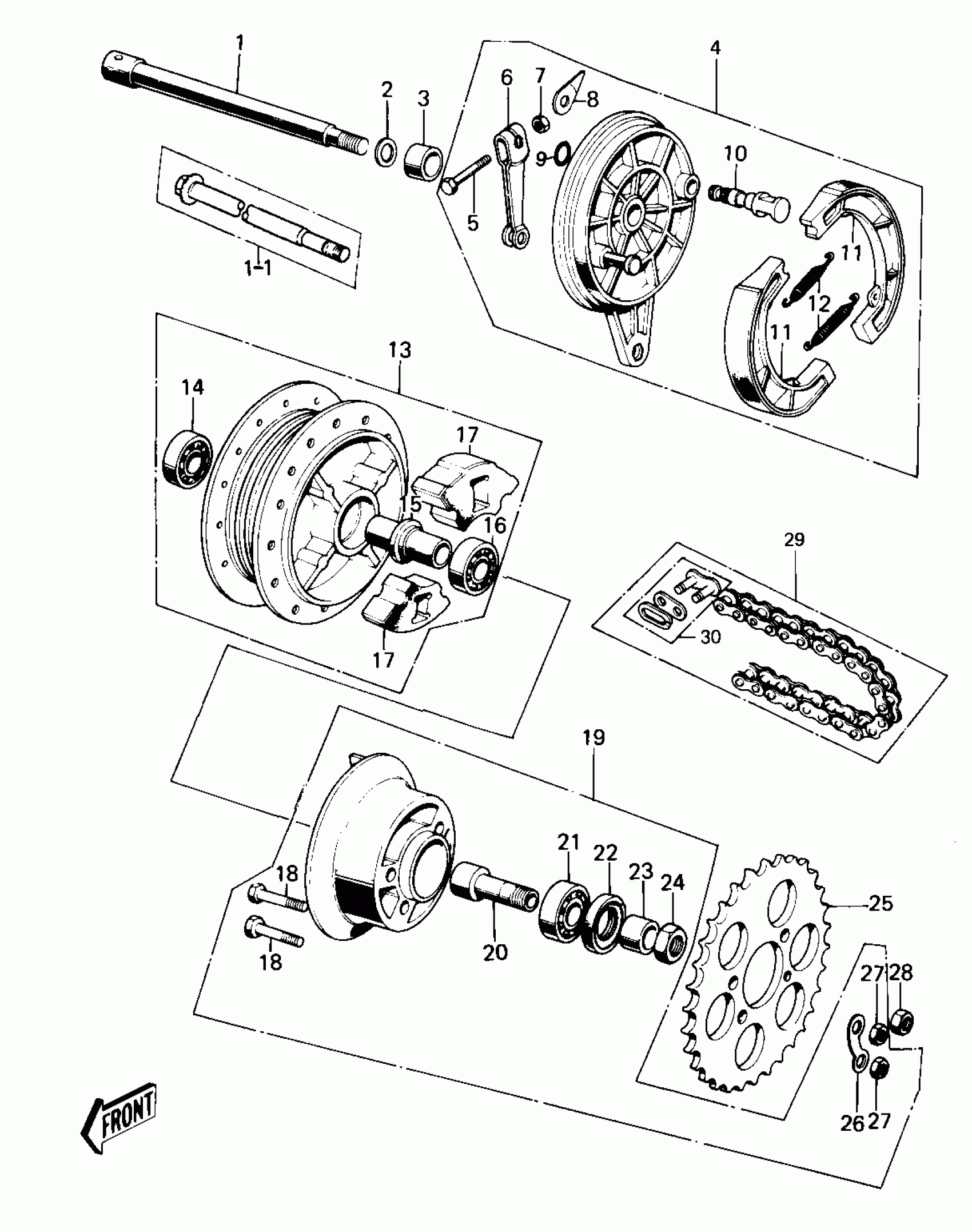

Kawasaki KE100 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

AXLE,12X215

41068-1109

$40.61

1-1

AXLE,12X215

41068-1109

$40.61

2

WASHER PLAIN 12MM

411B1200

$0.93

2

WASHER PLAIN 12MM

411B1200

$0.93

3

COLLAR,12.2X22X28.5

42032-006

Unavailable

4

PANEL-ASY,RR BRK,BUFF

42006-066-80

$120.68

5

BOLT-UPSET

112G0630

$1.36

6

LEVER-BRAKE CAM

42029-020

$35.71

7

NUT,6MM

41072-007

$3.92

8

INDICATOR,BRAKE SHOE

41085-003

$14.51

10

CAM-BRAKE

42026-018

$33.87

11

SHOE-BRAKE

41048-1085

$22.53

12

SPRING,BRAKE SHOE

92081-1766

$8.03

13

DRUM ASSY,RR BRK,BUFF

42005-031-80

$211.80

14

BEARING BALL #6301Z

601B6301Z

$14.46

15

COLLAR,L=58

42010-005

$12.76

16

BEARING-BALL,#6201C3

601B6201

$10.98

17

DAMPER,RR HUB SHOCK

42014-016

$18.41

18

BOLT,HUB SPROCKET,10X36

92001-082

$2.98

19

COUPLING ASSY-RR HUB

42033-014

$117.57

20

SLEEVE,RR HUB COUPLING

42036-013

$39.30

21

BEARING-BALL,#6203C3

601B6203

$14.12

22

SEAL-OIL,COUPLING

92052-003

$13.38

23

COLLAR,17X25X12.5

42037-003

$13.71

24

NUT,16MM

42045-004

$8.60

25

REAR SPROCKET 42T

42041-076

Unavailable

25

RR SPROCKET 39T (OPT)

42041-104

Unavailable

25

SPROCKET-HUB,40T

42041-1095

Unavailable

26

WASHER,LOCK

92088-011

$5.11

27

NUT-HEX-FINE,10MM

315B1000

$0.58

28

NUT,10MM

42045-005

$7.98

29

CHAIN,DRIVE,EK428-G

92057-1085

Unavailable

30

JOINT-CHAIN,EK428-G

92058-1014

$6.60
