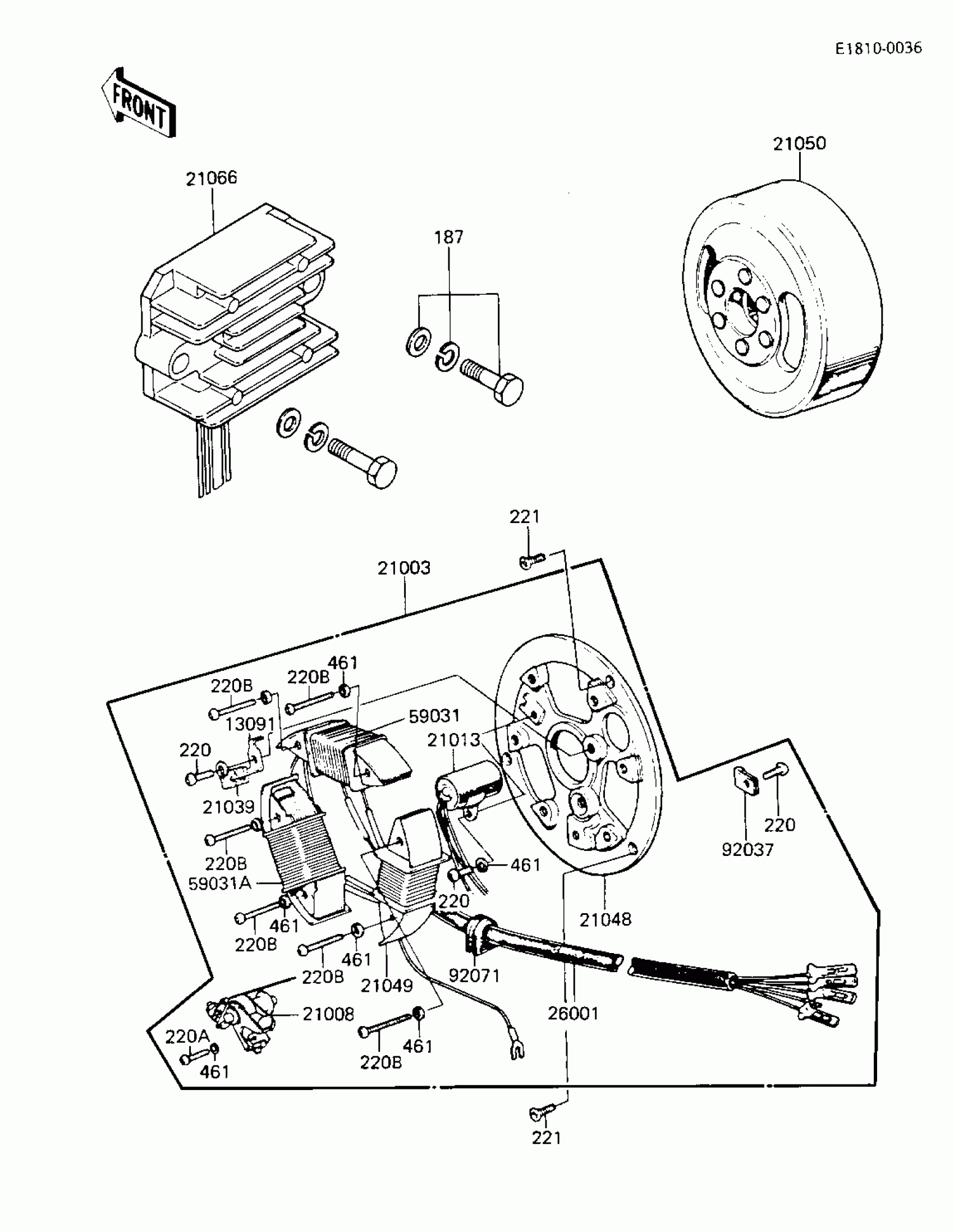

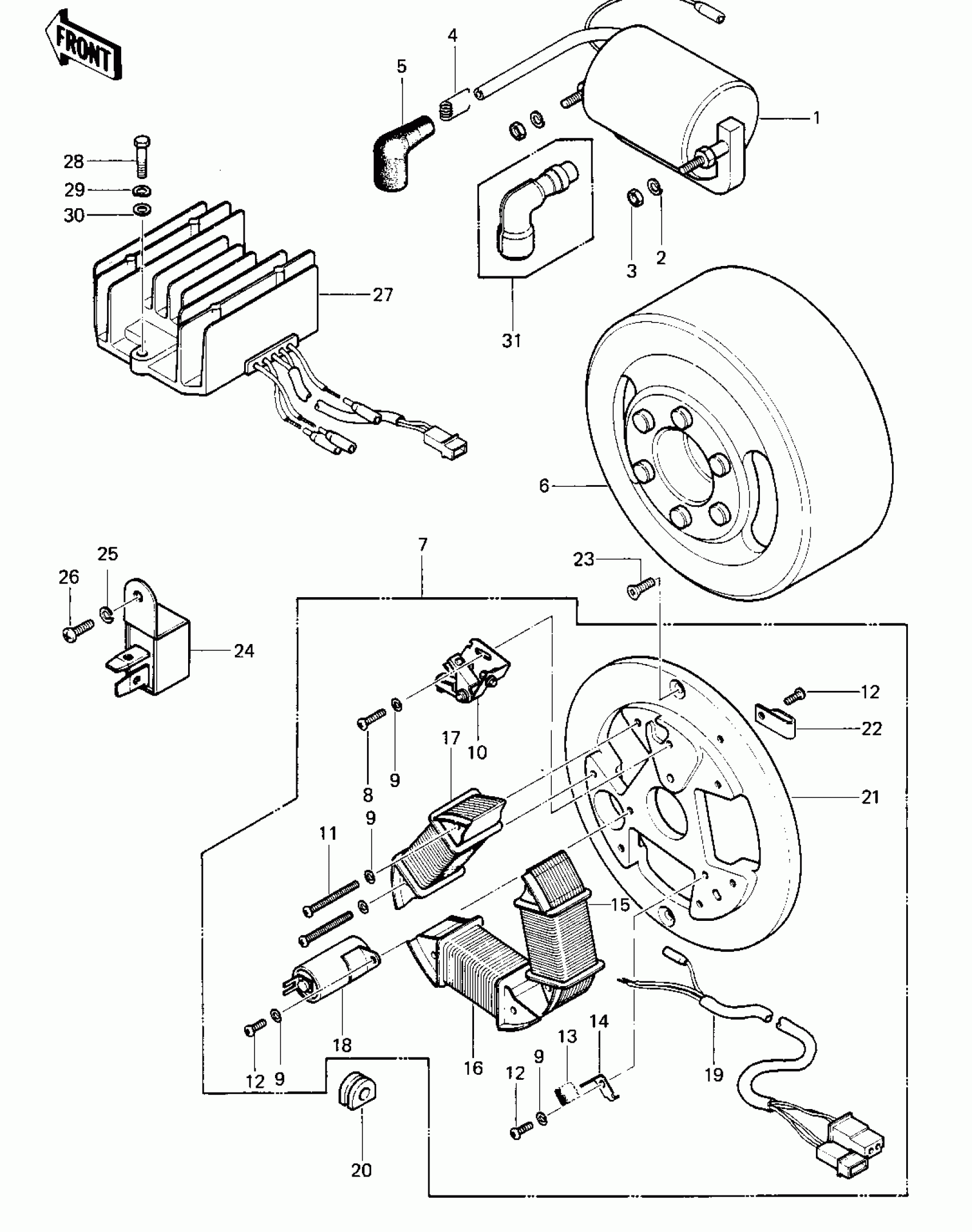

Kawasaki KE100 IGNITION/GENERATOR/REGULATOR Diagram

#

Description
Price

1

COIL,IGNITION

21121-1047

Unavailable

2

WASHER SPRING 6MM

461F0600

$0.69

3

NUT 6MM

311B0600

$0.93

3

NUT,LOCK,6MM

92019-008

$4.26

3

NUT,FLANGED,6MM

92015-1078

Unavailable

4

TERMINAL,SPARK PLUG CAP

92101-001

$1.69

5

CAP-SPARK PLUG

21130-009

$22.10

6

FLYWHEEL

21050-016

$625.88

6

FLYWHEEL,MAGNETO

21050-1009

$368.51

7

STATOR ASSY

21003-025

$293.79

7

STATOR

21003-1014

Unavailable

8

SCREW-PAN-CRSOSS,4X1

220B0412

$0.21

9

WASHER SPRING 4MM

461F0400

Unavailable

10

BREAKER,CONTACT

21008-006

$49.36

11

SCREW-PAN-CROS

220E0430

$2.95

12

SCREW PAN HEAD 4X6

220B0406

$1.67

13

BRUSH,OIL

21019-005

$5.39

14

HOLDER,OIL FELT

21038-002

Unavailable

15

COIL,LIGHTING

21047-1007

$84.77

15

COIL,LIGHTING

21047-1007

$84.77

15

COIL-CHARGING,B

59031-1002

Unavailable

16

COIL A LIGHTING

21047-019

$175.51

16

COIL-CHARGING,A

59031-1001

$94.39

17

COIL-EXCITING

21049-1004

Unavailable

17

COIL-EXCITING

21049-1004

Unavailable

18

CONDENSER

21013-006

$29.01

19

WIRING HARNESS,MAGNT

21029-028

Unavailable

19

HARNESS,MAGNETO

26001-1077

$66.67

20

GROMMET

21017-002

$5.17

21

PLATE-COIL,MAGNETO

21048-1002

$69.95

22

CLAMP,WIRING HARNESS

21037-002

Unavailable

23

SCREW-CSK-CROS,6X14

221B0614

$3.46

24

RECTIFIER

21061-015

Unavailable

25

WASHER SPRING 5MM

461F0500

$0.69

26

SCREW PAN HEAD 5X10

220B0510

$0.69

27

REGULATOR-VOLTAGE

21066-1012

Unavailable

27

REGULATOR-VOLTAGE

21066-1012

Unavailable

28

BOLT-UPSET

112G0625

$3.62

29

WASHER SPRING 6MM

461F0600

$0.69

30

WASHER PLAIN 6MM

411B0600

$2.84

31

CAP-ASSY-PLUG

21160-005

$51.69
