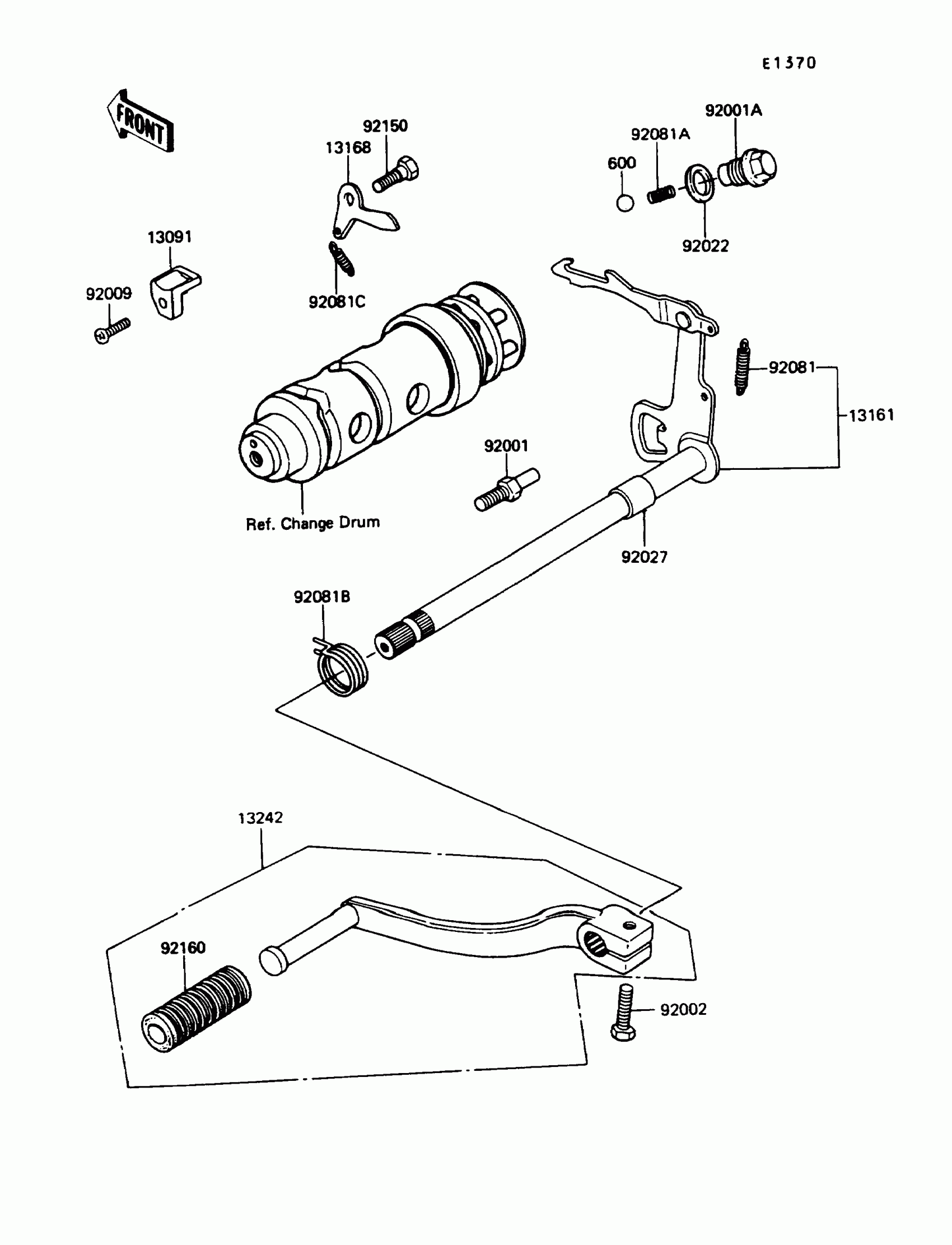

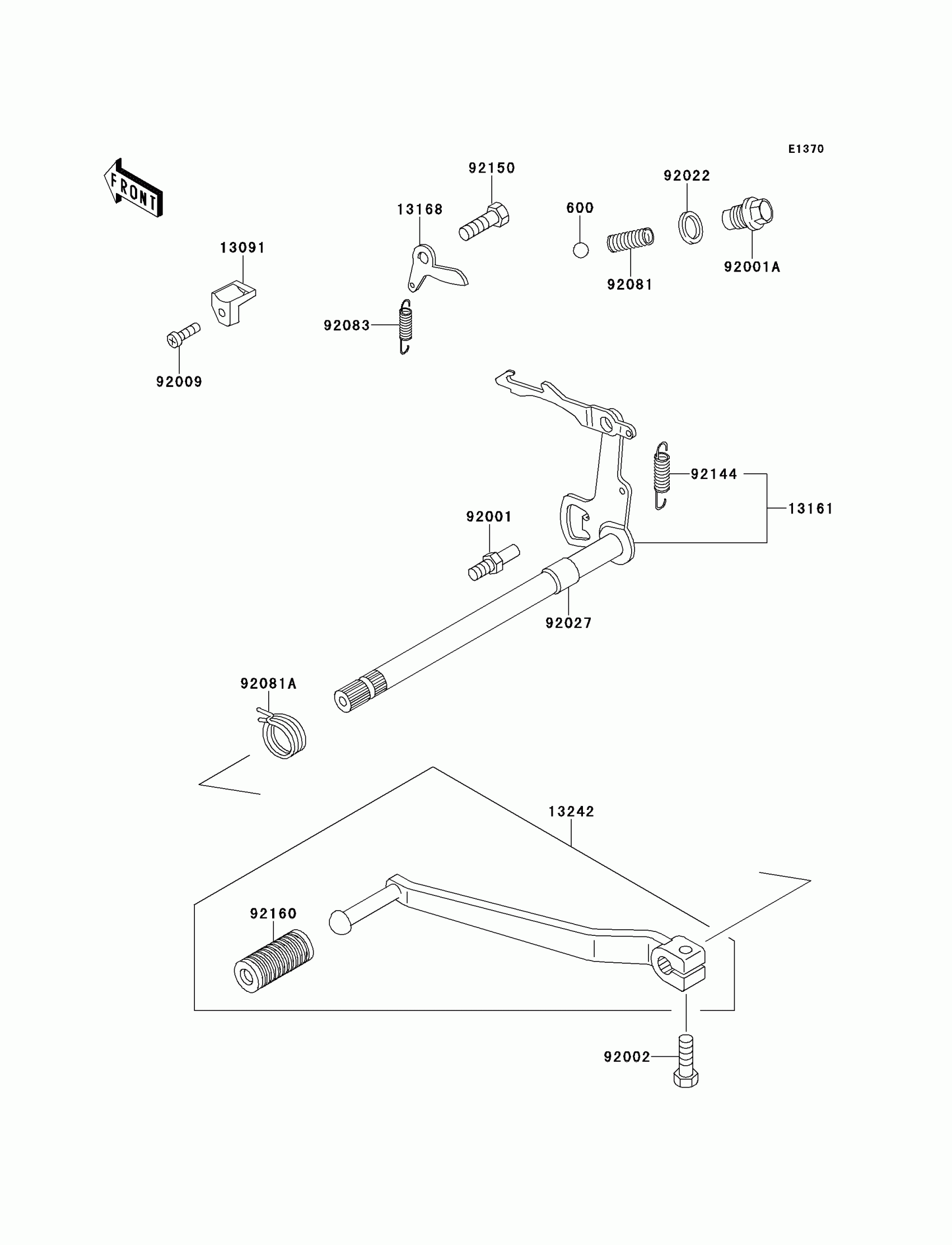

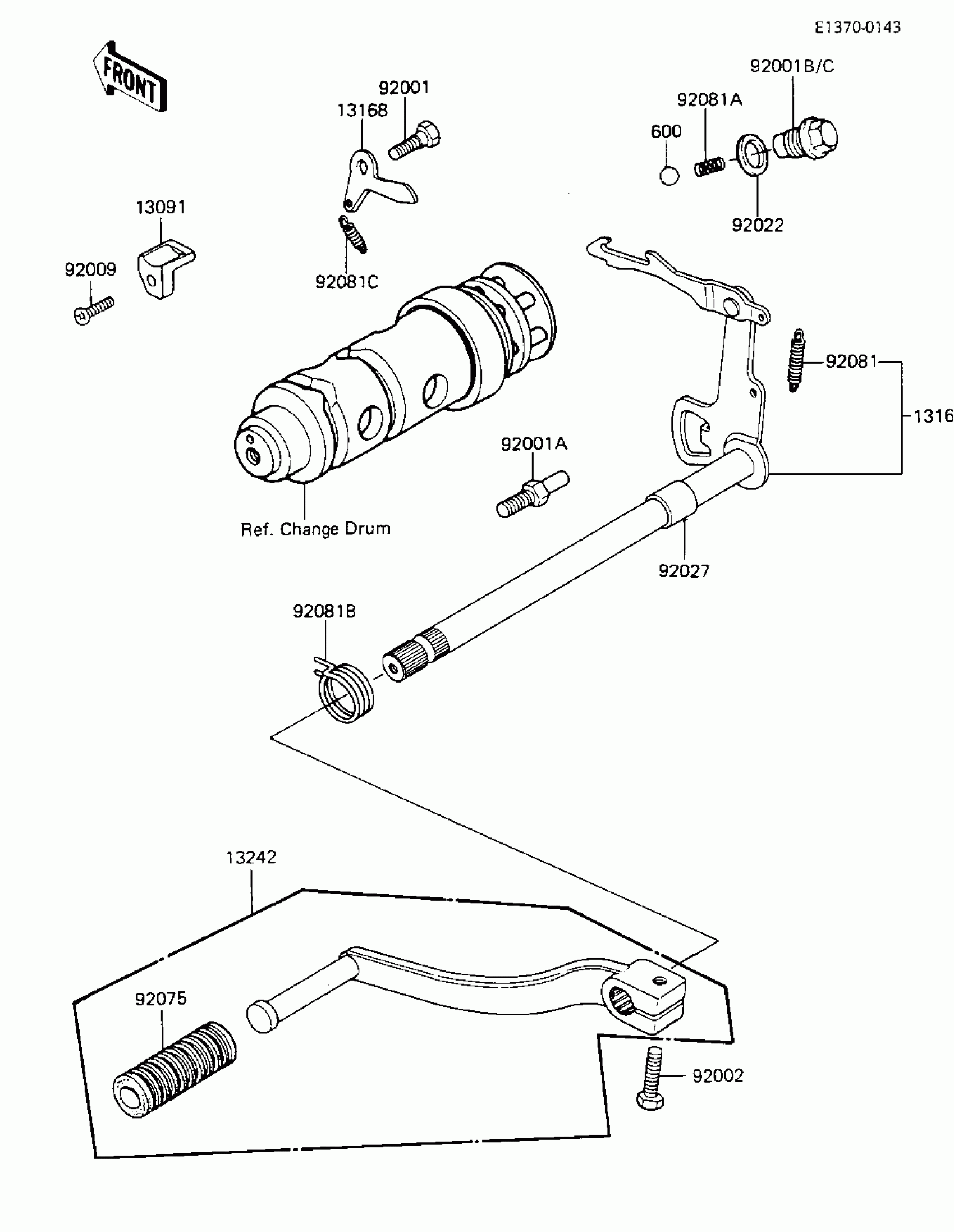

Kawasaki KE100 Gear Change Mechanism Diagram

Description

Price

13091

HOLDER

13091-1350

$14.51

13161

LEVER-COMP-CHANGE SHAFT

13161-1026

Unavailable

13168

LEVER,GEAR CHANGE DRUM

13168-1046

$5.71

13242

LEVER-ASSY-CHANGE

13242-004

$40.04

92001

BOLT,RETURN SPRING

92001-1455

$4.69

92001A

BOLT,16X28.5

92001-1934

Unavailable

92002

BOLT,6X20

92002-1237

$4.31

92009

SCREW-PAN-CROS,6X16

92009-1266

$4.31

92022

WASHER,16.5X23X2

92022-324

$5.23

92027

COLLAR,12X18X11.5

92027-121

$9.23

92081

SPRING,CHANGE LEVER

92081-011

$4.74

92081A

SPRING

92081-112

$6.16

92081B

SPRING,TENSION

92081-1129

$9.43

92081C

SPRING,CHANGE DRUM LEVER

92083-012

$4.65

92150

BOLT,CHANGE DRUM LEVER

92150-1450

$5.35

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05

600

BALL-STEEL,13/32"

600A1300

$0.94
