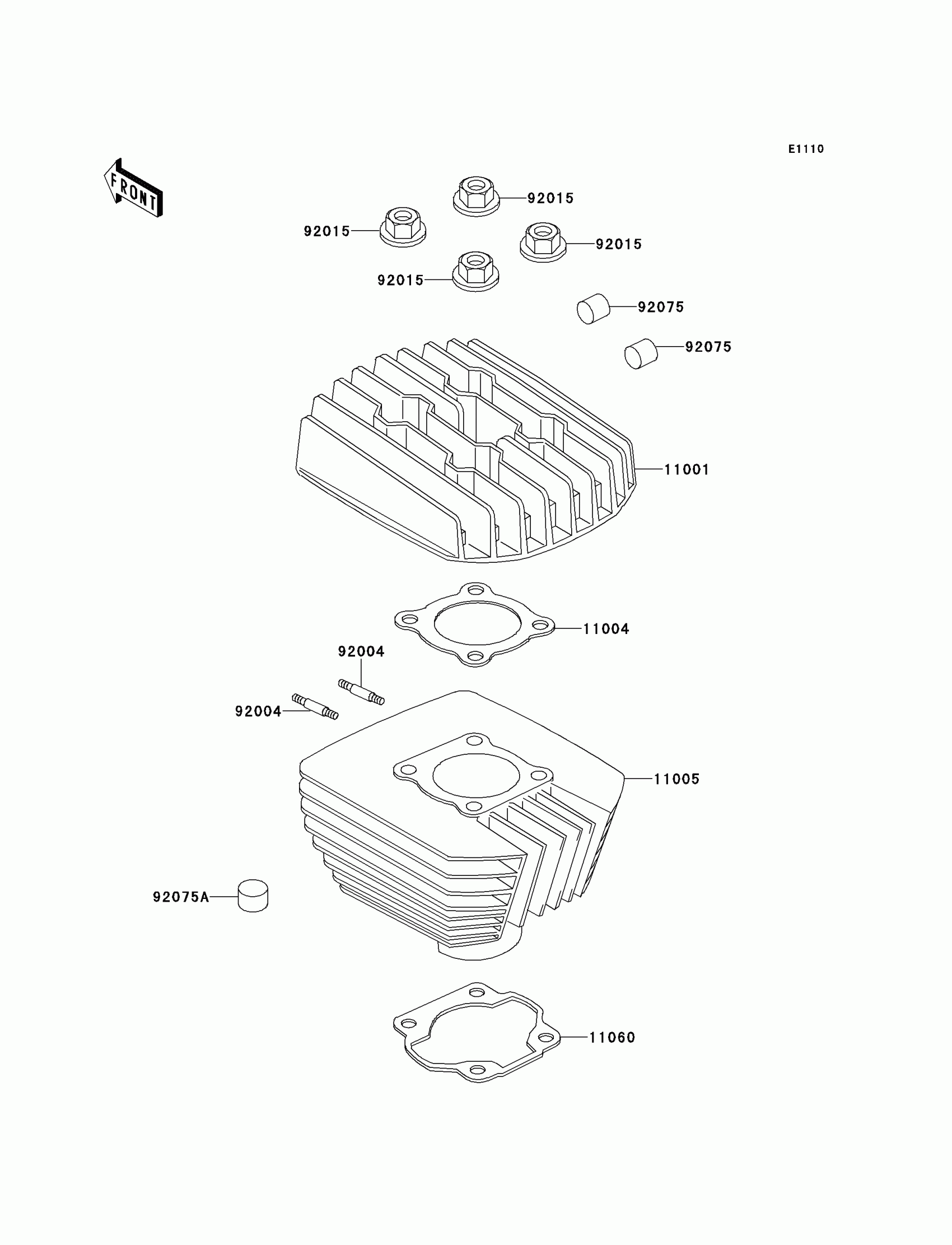

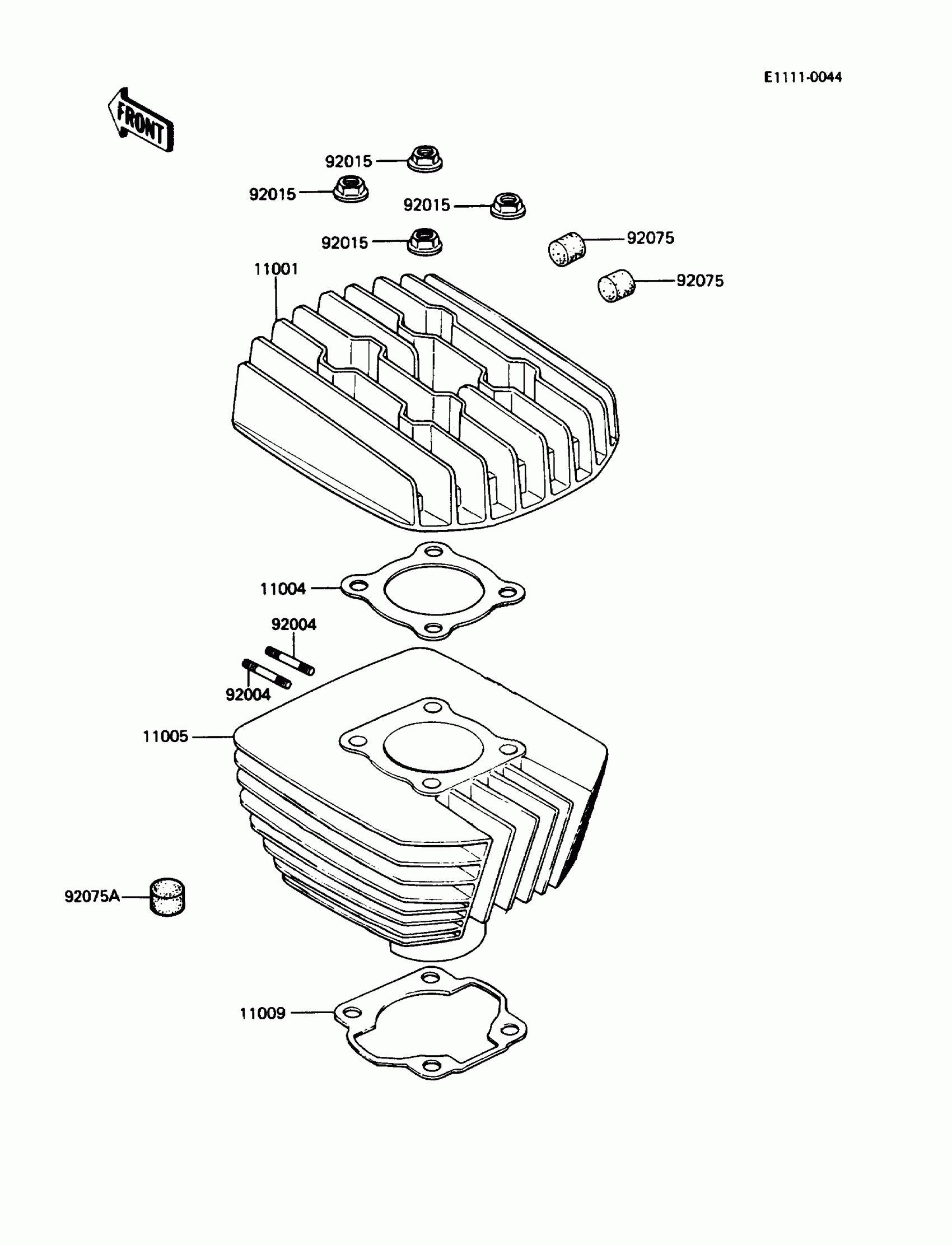

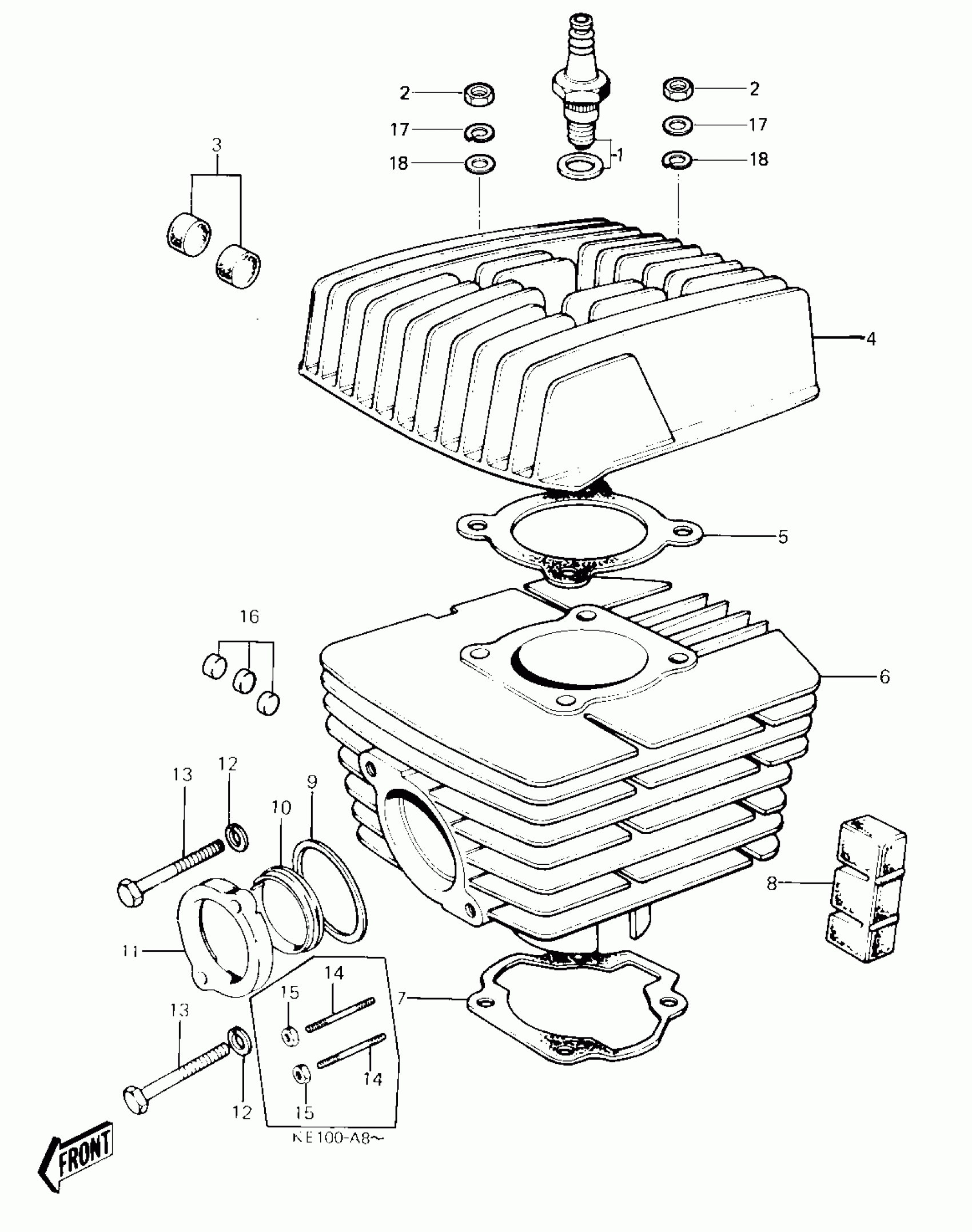

Kawasaki KE100 CYLINDER HEAD/CYLINDER Diagram

#

Description
Price

1

SPARK PLUGS B8HC

92070-010

Unavailable

1

SPARK PLUG B8ES

B8ES

$3.62

2

NUT,8MM

311B0800

$0.67

2

NUT,FLANGED,8MM

92015-1022

$0.48

3

DAMPER RUBBER

92075-074

Unavailable

3

DAMPER,13X13.8

92075-075

$5.23

4

CYLINDER HEAD,BLACK

11001-075-21

Unavailable

4

HEAD-CYLINDER

11001-1018

Unavailable

4

CYLINDER HEAD

11001-1008

Unavailable

4

HEAD-CYLINDER

11001-1018

Unavailable

5

GASKET-HEAD,CYLINDER

11004-033

$18.21

6

CYLINDER,BLACK

11005-1027

Unavailable

6

CYLINDER,BLACK

11005-1027

Unavailable

6

CYLINDER-ENGINE,ELECTRO-FUSE

11005-1006

$588.05

6

CYLINDER

11005-1082

Unavailable

7

GASKET,CYLINDER BASE

11060-1200

$8.96

8

DAMPER RUBBER,CYLIND

92075-170

Unavailable

9

GASKET,EXHAUST PIPE

11009-1992

$7.82

9

GASKET,EXHAUST PIPE

11009-1992

$7.82

10

COLLAR,EXHAUST PIPE HOLDER

18070-008

Unavailable

11

HOLDER-EXHAUST PIPE

18069-048

Unavailable

12

WASHER SPRING 6MM

461F0600

$0.69

13

BOLT-UPSET

112G0625

$3.62

14

STUD

92004-029

$5.90

15

NUT,LOCK 6MM

92017-014

$7.51

15

NUT,FLANGED,6MM

92015-1078

Unavailable

16

DAMPER,CYLINDER HEAD/CYLINDER

92075-109

$4.26

17

WASHER SPRING 8MM

461F0800

$0.40

18

WASHER PLAIN 8MM

410B0800

$0.93
