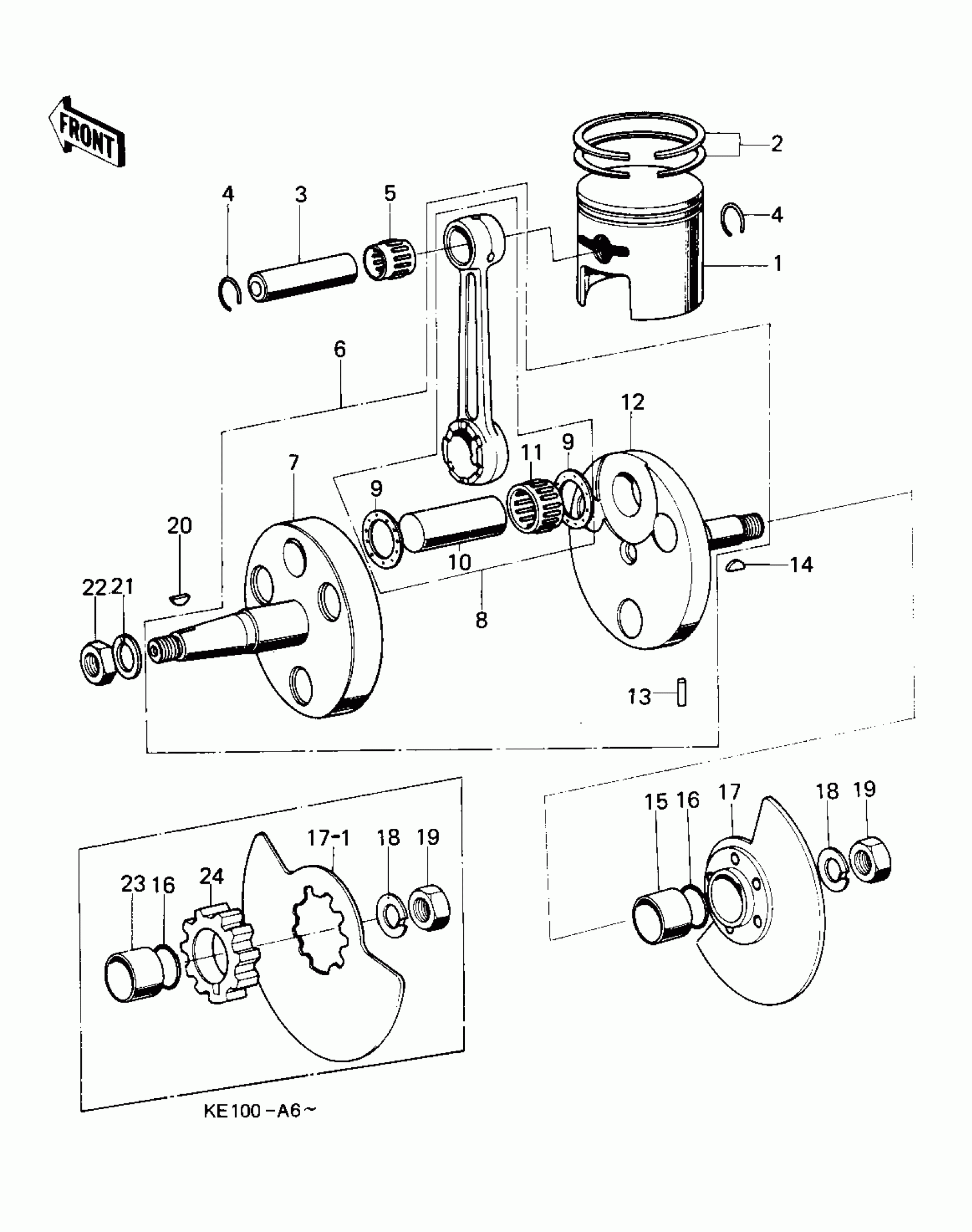

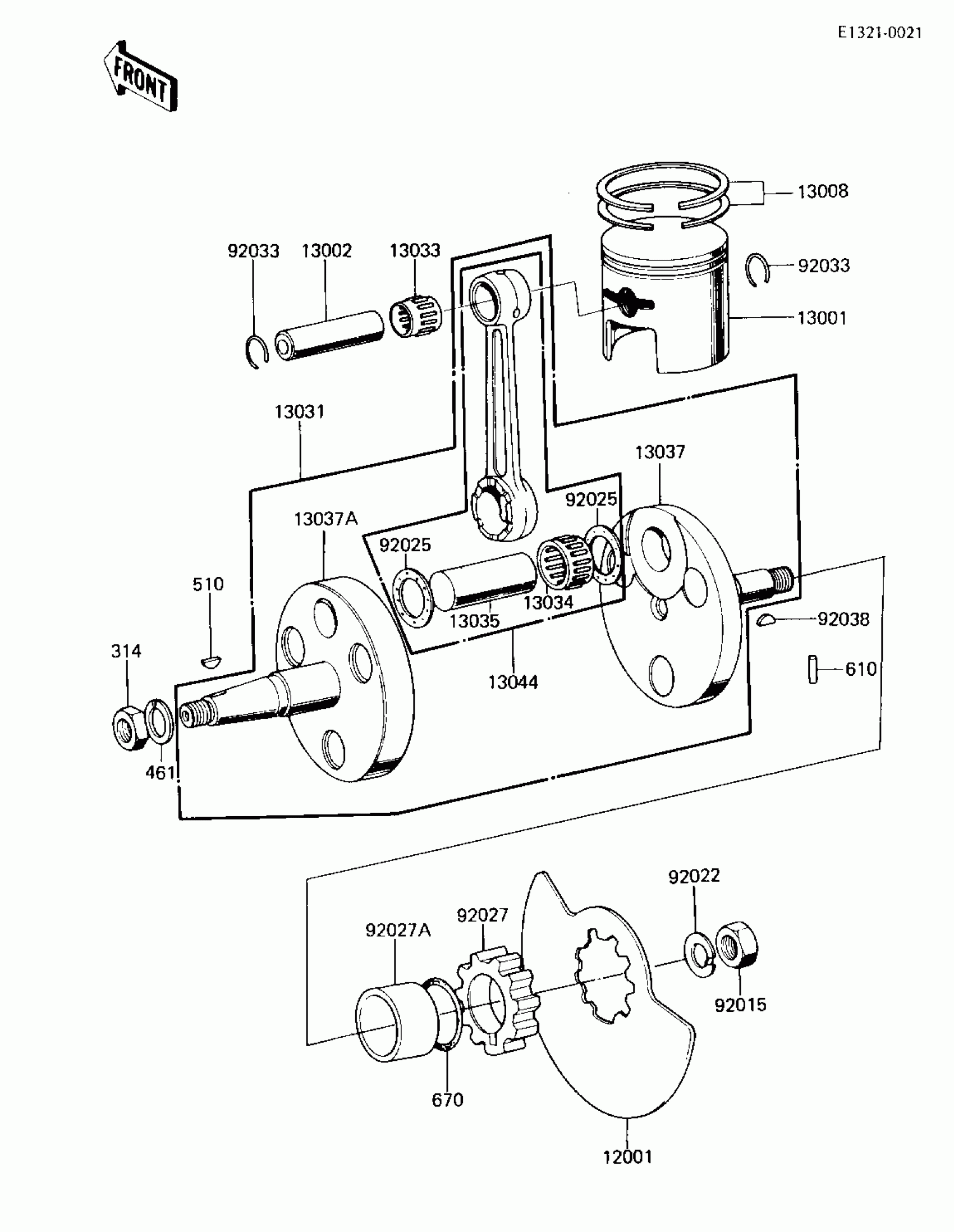

Kawasaki KE100 CRANKSHAFT/PISTON/ROTARY VALVE Diagram

Description

Price

12001

VALVE-ROTARY

12002-030

$21.47

13001

PISTON-ENGINE,STD

13001-057

Unavailable

13002

PIN-PISTON

13002-003

$16.11

13008

RING-SET-PISTON,STD

13008-5009

$60.64

13031

CRANKSHAFT-COMP

13036-043

$408.49

13033

BEARING-NEEDLE,KTV141817

13033-030

$27.43

13034

BEARING-NEEDLE,KT192814

13034-034

$32.05

13035

PIN-CRANK

13035-025

Unavailable

13037

CRANKSHAFT,RH

13037-1135

Unavailable

13037A

CRANKSHAFT,LH

13037-1136

Unavailable

13044

SET-CONNECTING ROD

13044-5015

$172.92

92015

NUT,12MM

92015-006

$5.59

92022

WASHER,CLAW,12.5X25X0.8

92024-003

$4.78

92025

SHIM,T=1.0

92025-047

$8.18

92027

COLLAR,ROTARY VALVE

92027-1245

$26.05

92027A

COLLAR,20X25X9.5

92027-285

$11.49

92033

RING-SNAP,PISTON PIN

92036-003

$0.65

92038

KEY,WOODRUFF

92038-003

$5.37

314

NUT-HEX-FINE,10MM

314B1000

$0.67

461

WASHER SPRING 10MM

461F1000

$0.67

510

KEY-WOODRUFF

510A3200

$2.70

610

ROLLER,4X10

610A0410

$4.31

670

O RING,16MM

670B2016

$1.36
