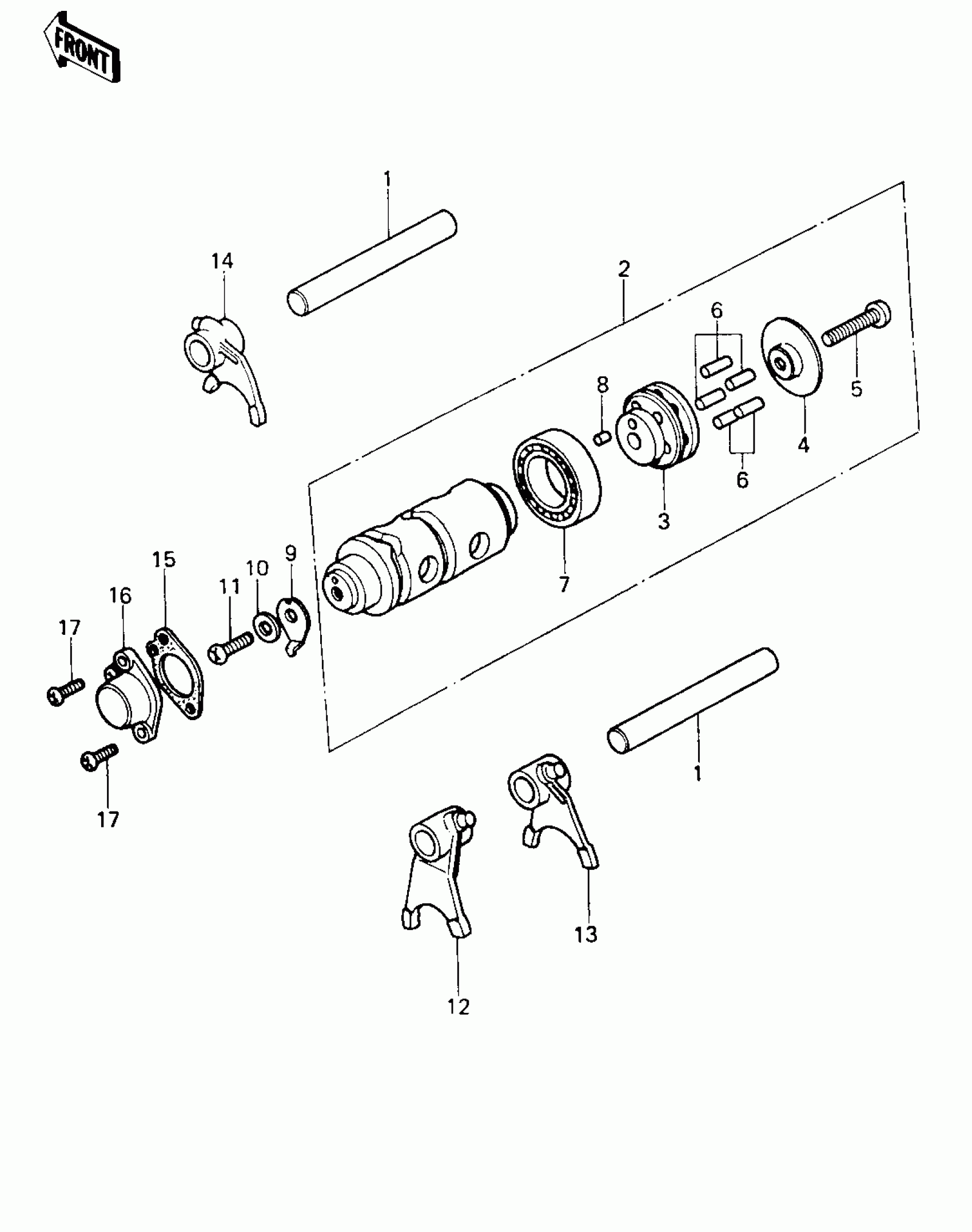

Kawasaki KE100 GEAR CHANGE DRUM & FORKS (KE100-A9/A10) Diagram

#

Description
Price

1

ROD-SHIFT,10X80

13209-014

Unavailable

2

DRUM-ASSY-CHANGE

13239-5001

Unavailable

2

DRUM-ASSY-CHANGE

13239-1034

$143.27

3

HOLDER,GEAR CHANG DRM

13091-1059

Unavailable

3

HOLDER,CHANGE DRUM

13091-1077

$38.21

4

PLATE CHANGE DRUM PIN

13142-008

Unavailable

4

HOLDER,CHANGE DRUM PIN

13142-014

$20.34

5

SCREW PAN HEAD 6X30

220B0630

Unavailable

5

BOLT-SOCKET,6X30

120P0630

Unavailable

6

PIN,DOWEL,4X14.8

92042-042

$4.08

7

BEARING-BALL,#6905

92045-036

$24.62

7

BEARING-BALL,#6004C3

601B6004

$9.84

8

ROLLER,4X6

610A0406

$3.43

9

ROTOR,TOP & NEUTRAL

21007-1003

$7.97

10

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

11

SCREW-PAN-CROS,6X16

220B0616

Unavailable

12

FORK-SHIFT,LOW&2ND

13140-1026

$89.95

13

FORK-SHIFT,3RD

13140-1027

$103.50

14

FORK-SHIFT,4TH&TOP

13140-1028

Unavailable

15

GASKET,NEUTRAL SWITCH

13146-002

$4.14

16

SWITCH-COMP,NEUTRAL

13151-1002

$15.86

17

SCREW-PAN-CROS,6X16

220B0616

Unavailable
