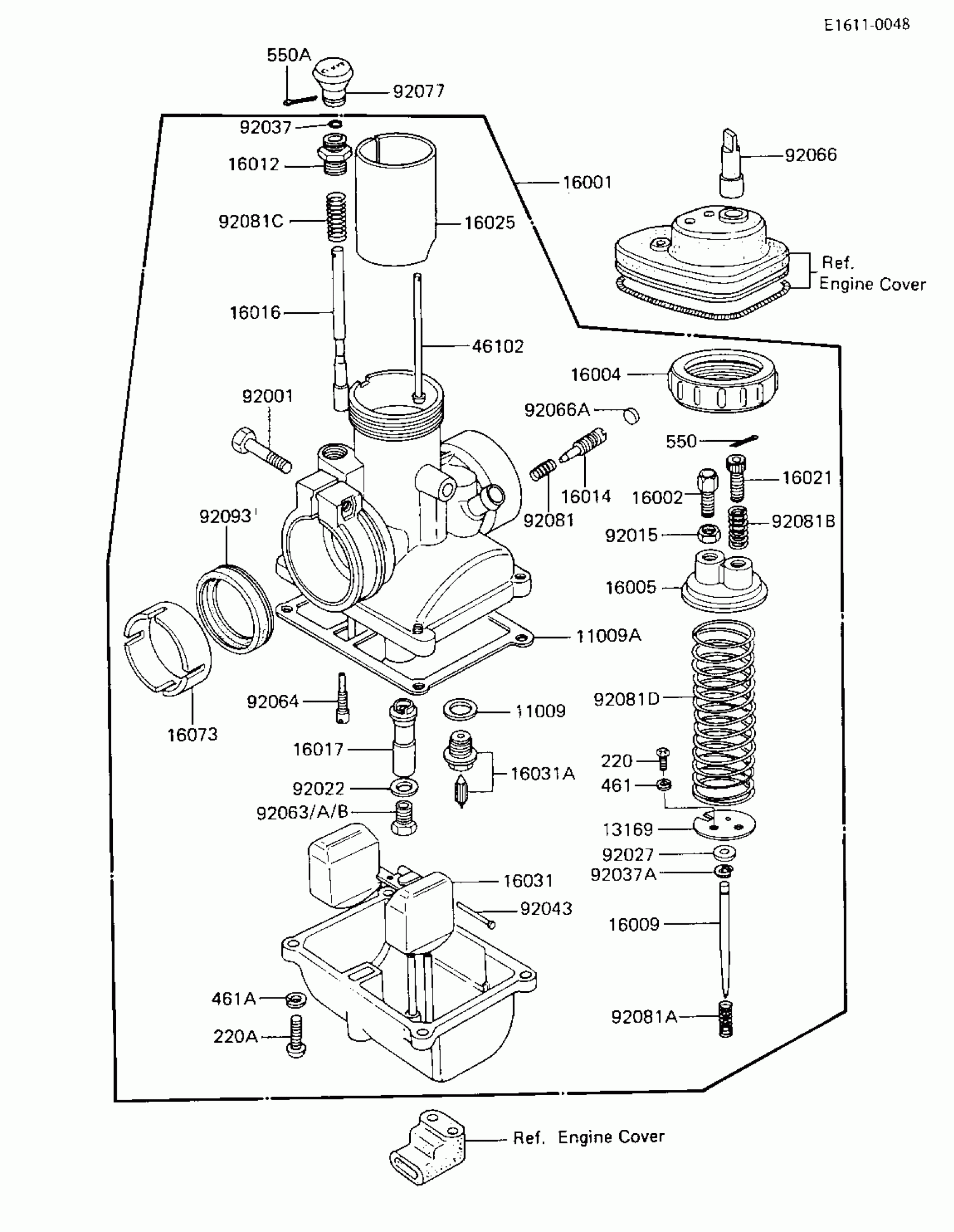

Kawasaki KE100 CARBURETOR (KE100-B1/B2/B3/B4) Diagram
#
11009
GASKET,FLOAT VALVE
11009-1160
$5.69
11009A
GASKET,FLOAT CHAMBER
11009-1174
Unavailable
13169
SPRING SEAT,THR VALVE
13169-1223
Unavailable
16001
CARBURETOR ASSY
16001-1185
Unavailable
16002
CABLE ADJUSTER
16002-1004
Unavailable
16004
CAP,MIXING CHAMBER
16004-1007
Unavailable
16005
TOP,MIXING CHAMBER
16005-1010
Unavailable
16009
JET NEEDLE,#4D21
16009-1043
$51.24
16012
CAP,STARTER PLUNGER
16012-1007
Unavailable
16014
SCREW,PILOT AIR ADJST
16014-1022
Unavailable
16016
PLUNGER,STARTER
16016-1010
$31.50
16017
NEEDLE JET,#80
16017-1043
Unavailable
16021
THROTTLE ADJUSTER
16021-1021
Unavailable
16025
VALVE,THROTTLE CA.3.0
16025-1036
$78.48
16031
FLOAT
16031-1009
Unavailable
16031A
FLOAT VALVE ASSY
16031-1010
Unavailable
16073
INSULATOR,CARBURETOR
16073-1010
Unavailable
46102
ROD,THR VALVE STOP
46102-1014
Unavailable
92001
BOLT,CARB MOUNT
92001-1304
Unavailable
92015
NUT,CABLE ADJSTR LOCK
92015-1092
Unavailable
92022
WASHER,PLAIN
92022-1167
Unavailable
92027
RING,JET NEEDLE
92027-1236
$3.11
92037
CLAMP
92037-1166
Unavailable
92037A
CIRCLIP
92037-1167
$3.80
92043
PIN
92043-1066
Unavailable
92063
MAIN JET,#82
92063-1045
Unavailable
92063A
MAIN JET,#80
92063-1065
$22.19
92063B
MAIN JET,#84
92063-1066
Unavailable
92064
PILOT JET,#38
92064-1027
Unavailable
92066
PLUG,12X40
16147-001
$5.17
92066A
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92077
KNOB,CARBURETOR
92077-022
$10.64
92081
SPRING,PILOT AIR SCRW
92081-1202
Unavailable
92081A
SPRING,JET NEEDLE
92081-1203
Unavailable
92081B
SPRING,THROTTLE ADJST
92081-1232
Unavailable
92081C
SPRING,STARTER PLUNGR
92081-1233
Unavailable
92081D
SPRING,THROTTLE VALVE
92081-1234
$3.01
92093
SEAL,INSULATOR
92093-1060
Unavailable
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
SCREW-PAN-CROS
220B0414
$4.28
461
WASHER SPRING 3MM
461F0300
$0.46
461A
WASHER SPRING 4MM
461F0400
Unavailable
550
PIN COTTER 1.2X10
550D1210
$2.65
550A
PIN-COTTER,1.6X15
550D1615
$2.51
