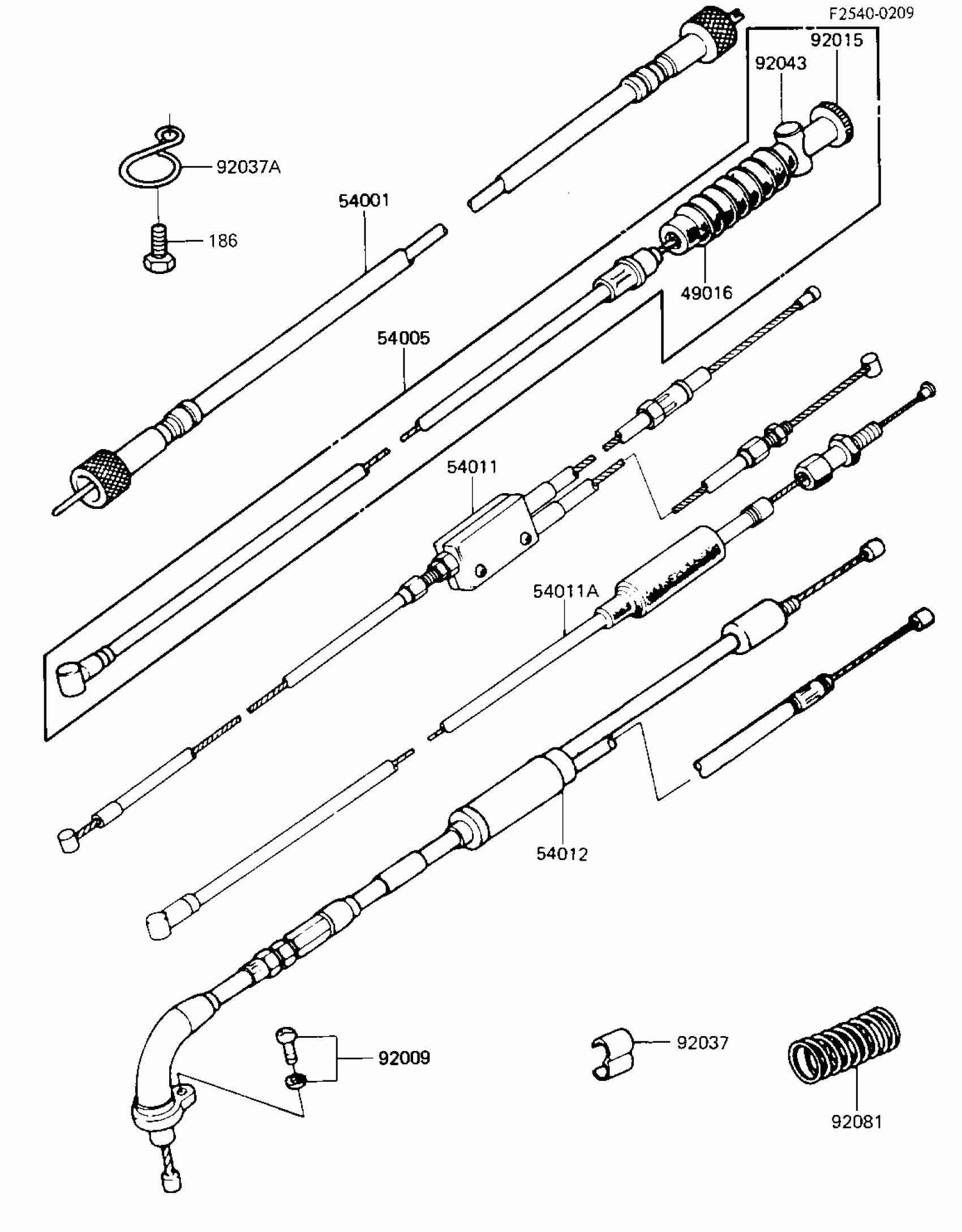

Kawasaki KE100 CABLES Diagram

Description

Price

49016

COVER-SEAL

54009-008

$5.54

54001

CABLE-SPEEDOMETER

54001-032

$24.35

54005

CABLE-BRAKE

54005-1035

$29.22

54011

CABLE-CLUTCH

54011-1054

$56.13

54012

CABLE-THROTTLE

54012-1104

Unavailable

92009

SCREW-PAN-WS-CROS

223B0510

$0.43

92015

NUT,CABLE ADJUSTER LOCK

92015-052

$12.76

92037

CLAMP-CABLE

92037-069

$5.45

92037A

CLAMP,CABLE

92037-046

$4.97

92043

PIN,BRAKE CABLE

92043-082

$5.59

92081

SPRING,CABLE

54025-004

$14.51

186

BOLT-UPSET-WP

186B0612

$0.89
