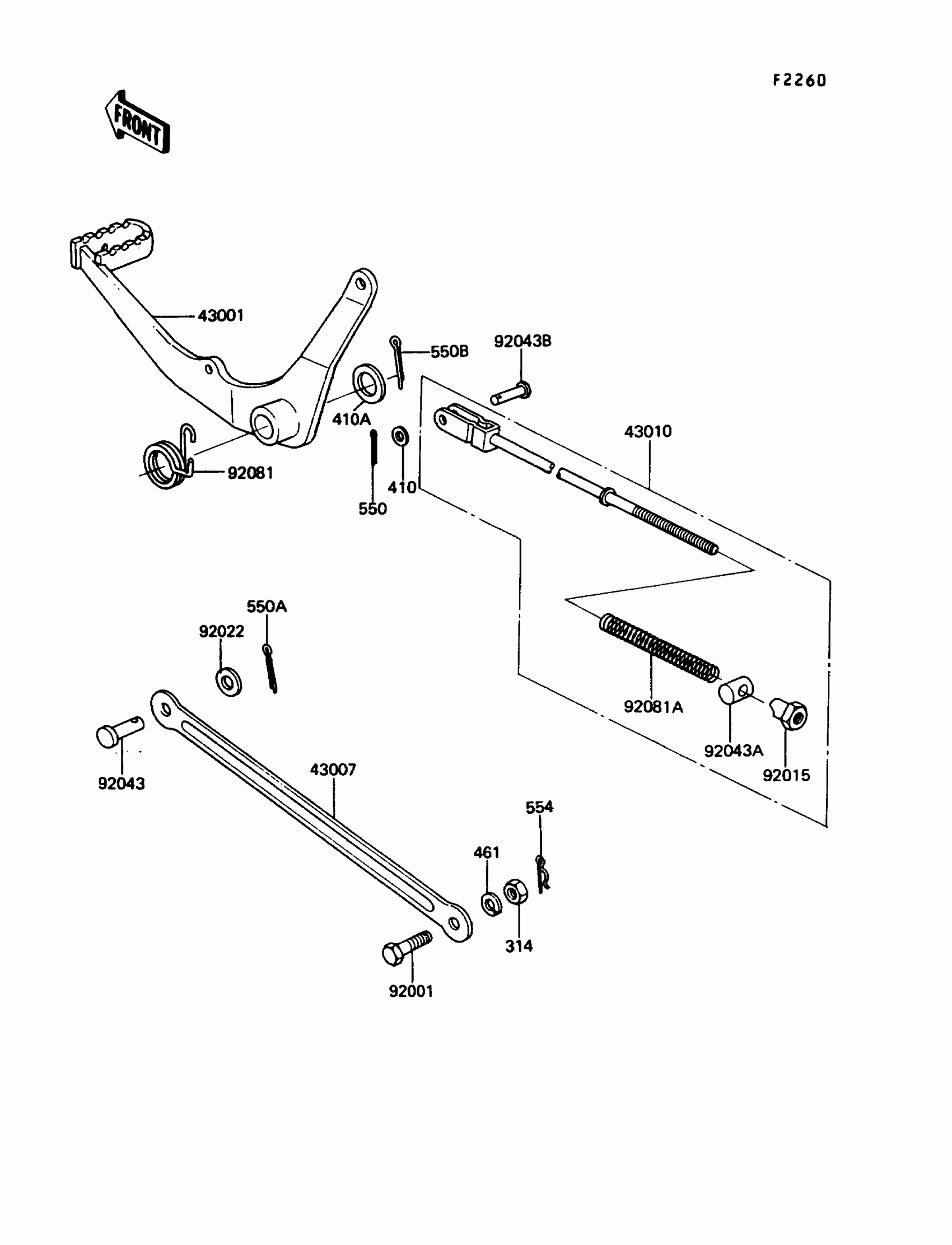

Find the part on the Brake Pedal diagram for your 1991 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

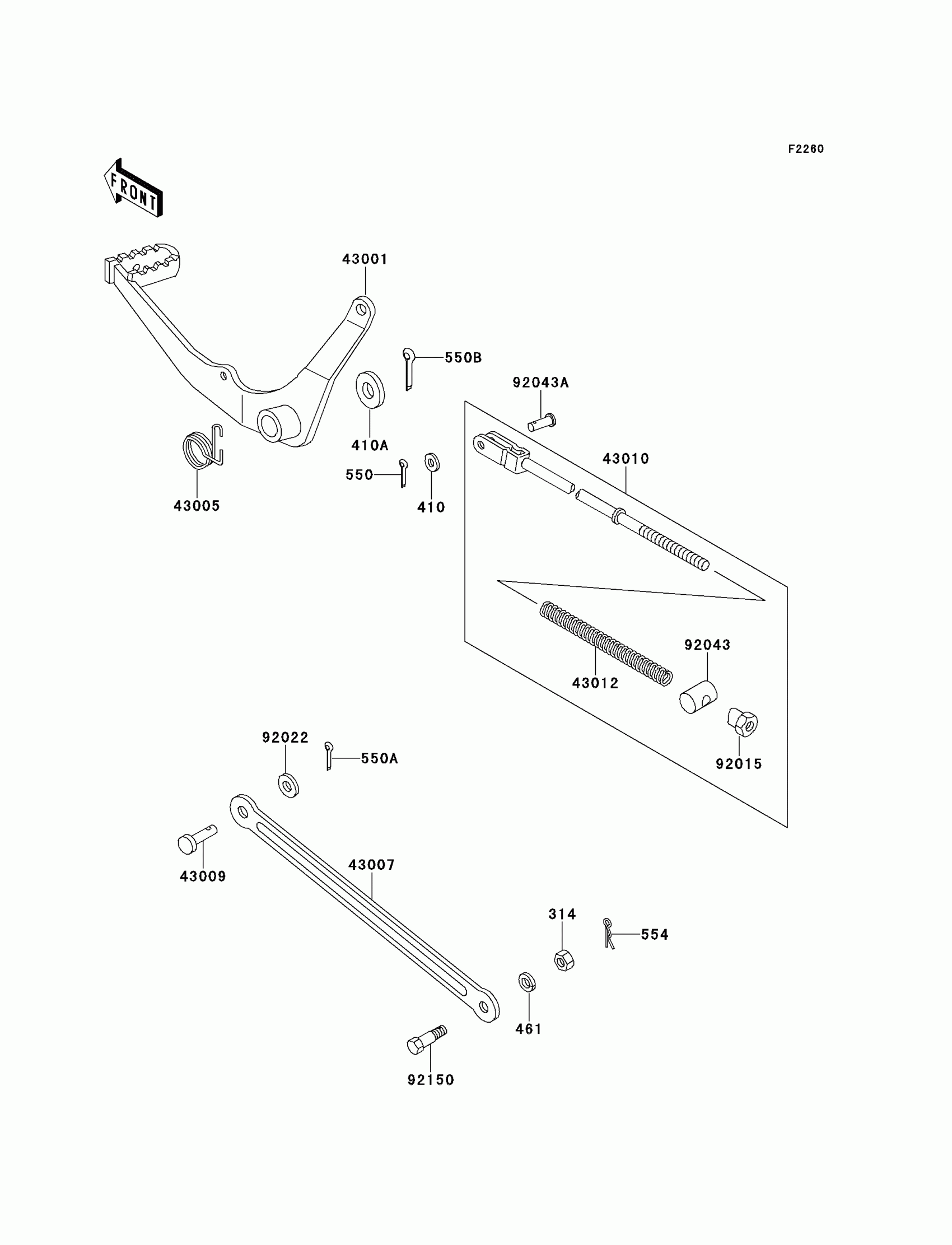

1991 Kawasaki KE100 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-056

1
Out of stock

43007

ROD-TORQUE,RR

43007-028

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-5001

1
Out of stock

92001

BOLT,10X32

92001-1671

1

$5.42

In stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92022

WASHER,10.5X18X1.6

92022-1539

1

$0.63

In stock

92043

PIN,SPRING,10X12

43009-001

1
Out of stock

92043A

PIN,BRAKE ROD

92043-039

1

$5.06

In stock

92043B

PIN,6X17

92043-064

1

$3.72

In stock

92081

SPRING,BRAKE PEDAL

43005-007

1
Out of stock

92081A

SPRING,BRAKE ROD

43012-001

1

$3.69

In stock

314

NUT-HEX-FINE,10MM,BLACK

314C1000

1
Out of stock

410

1

$1.19

In stock

410A

WASHER-PLAIN-SMALL,14MM,BLACK

410F1400

1
Out of stock

461

WASHER-SPRING,10MM,BLACK

461K1000

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

550A

1

$0.51

In stock

550B

1

$2.08

In stock

554

PIN-SNAP,8MM

554A0800

1
Out of stock
