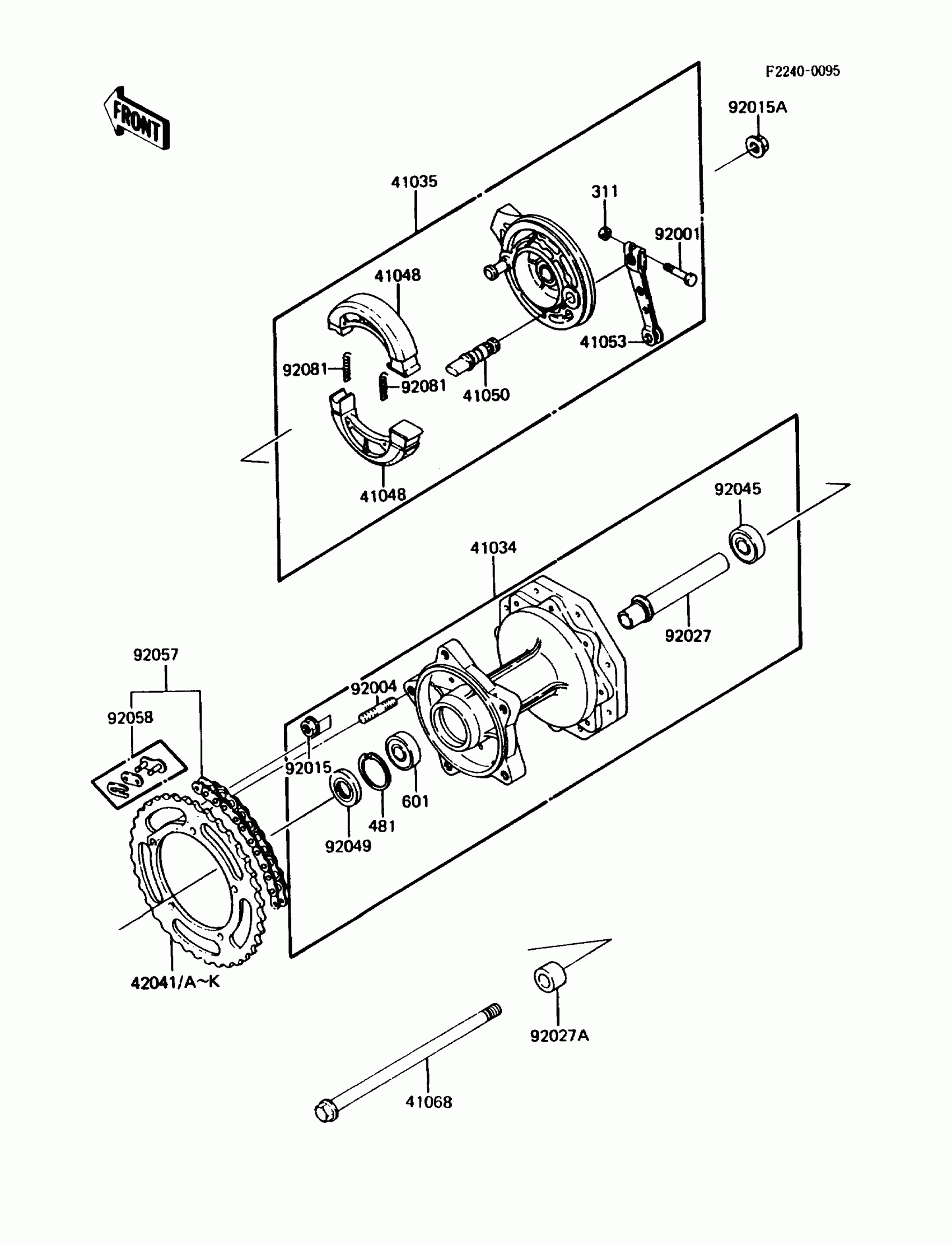

Kawasaki KDX80 Rear Hub Diagram
#
Description
Price
41034
DRUM-ASSY,RR
41034-1105
$390.21
41035
PANEL-ASSY-BRAKE,RR
41035-1154
$243.16
41048
SHOE-BRAKE
41048-1022
$22.01
41050
CAM-BRAKE
41050-1031
$25.72
41053
LEVER-BRAKE CAM,RR
41053-1058
$54.65
41068
AXLE,L=206
41068-1167
Unavailable
42041
SPROCKET-HUB,44T
42041-1114
$67.22
42041A
SPROCKET-HUB,43T
42041-1116
$67.22
42041B
SPROCKET-HUB,45T
42041-1117
$67.22
42041C
SPROCKET-HUB,49T
42041-1121
$75.04
42041D
SPROCKET-HUB,48T
42041-1122
$67.22
42041E
SPROCKET-HUB,50T
42041-1123
$75.04
42041F
SPROCKET-HUB,47T
42041-1129
$75.04
42041G
SPROCKET-HUB,48T,AL
42041-1169
$131.65
42041H
SPROCKET-HUB,49T,AL
42041-1170
$138.16
42041I
SPROCKET-HUB,47T,AL
42041-1177
$138.16
42041J
SPROCKET-HUB,46T
42041-1178
$75.04
42041K
SPROCKET-HUB,51T
42041-1181
$75.04
92001
BOLT,5X25
92001-1695
$4.69
92004
STUD,8X16
92004-1053
Unavailable
92015
NUT,8MM
92015-1143
$0.65
92015A
NUT,FLANGED,12MM
92015-1156
Unavailable
92027
COLLAR,REAR DRUM,L=115
92027-1471
$22.79
92027A
COLLAR,REAR AXLE,L=14.5
92027-1473
$20.77
92045
BEARING-BALL,TMB201LLUC3/2A
92045-1062
$26.08
92049
SEAL-OIL,DD20377
92049-1096
$16.94
92057
CHAIN,DRIVE,DID420MX118L
92057-1154
$65.94
92058
JOINT-CHAIN
92058-1053
Unavailable
92081
SPRING,BRAKE SHOE
92081-1766
$8.03
311
NUT-HEX
311G0500
$4.31
481
CIRCLIP-TYPE-C,37MM
481J3700
$3.04
601
BEARING-BALL,#6301UUC3
601B6301UU
$25.54
