Description

Price

41034

DRUM-ASSY,FR

41034-1104

$170.16

41035

PANEL-ASSY-BRAKE,FR

41035-1153

$105.86

41048

SHOE-BRAKE,FR

41048-1023

$29.61

41050

CAM-BRAKE,FR

41050-1032

$25.91

41053

LEVER-BRAKE CAM,FR

41053-1027

$47.49

41068

AXLE,FRONT,10X181

41068-1077

$36.35

92001

BOLT,5X25

92001-1695

$4.69

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92027

COLLAR,FRONT DRUM,L=54

92027-1470

$14.23

92027A

COLLAR,FRONT AXLE,L=14.5

92027-1472

$14.23

92049

SEAL-OIL,DD20357

92049-1095

$16.94

92081

SPRING,BRAKE SHOE

92081-1564

$5.46

311

NUT-HEX

311G0500

$4.31

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

601

BEARING-BALL,#6200UUC3

601B6200UU

$19.07

601A

BEARING-BALL,#6300UUC3

601B6300UU

$24.90

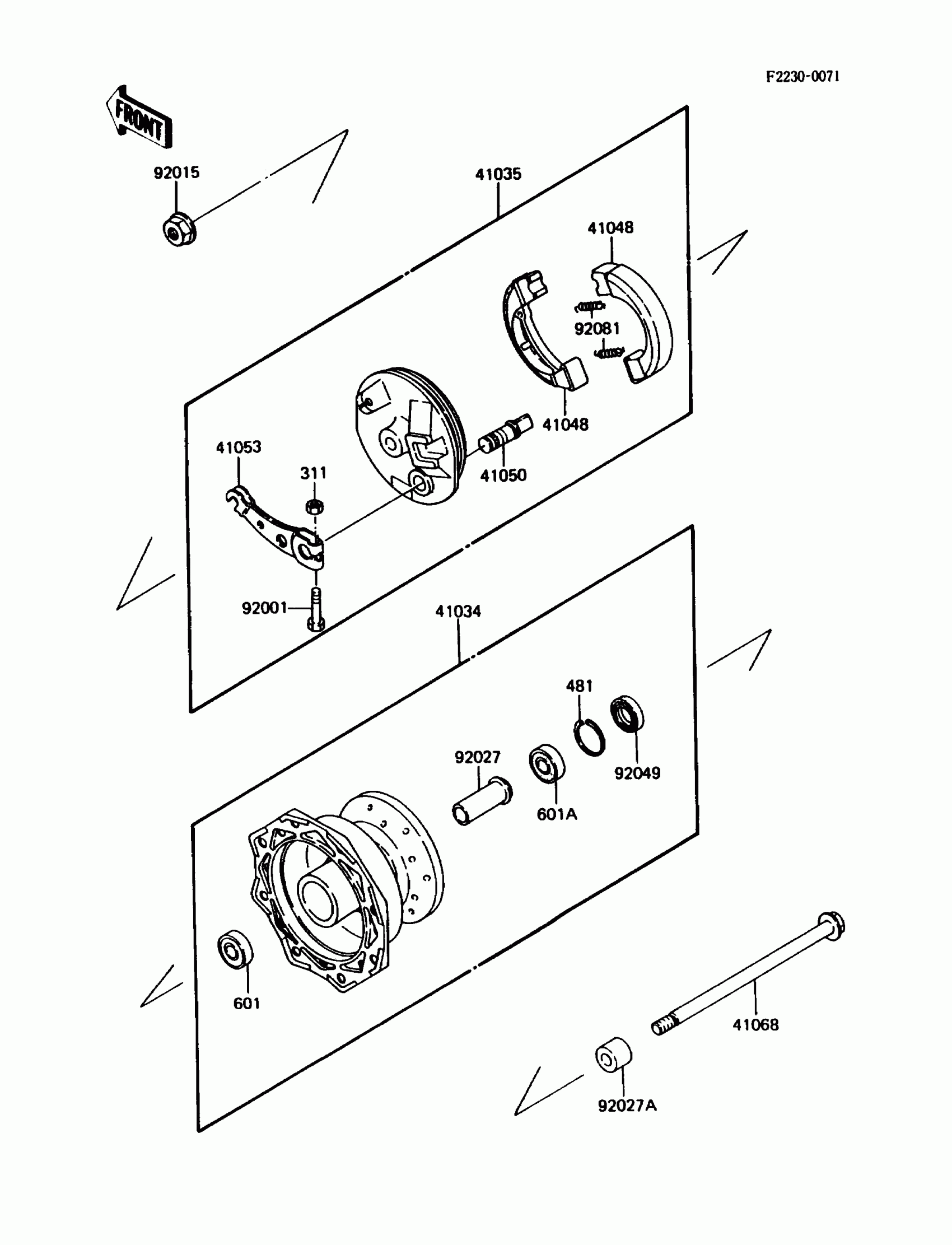

Kawasaki KDX80 Front Hub Diagram
