1988 Kawasaki KDX80 Brake Pedal Diagram

← All diagrams

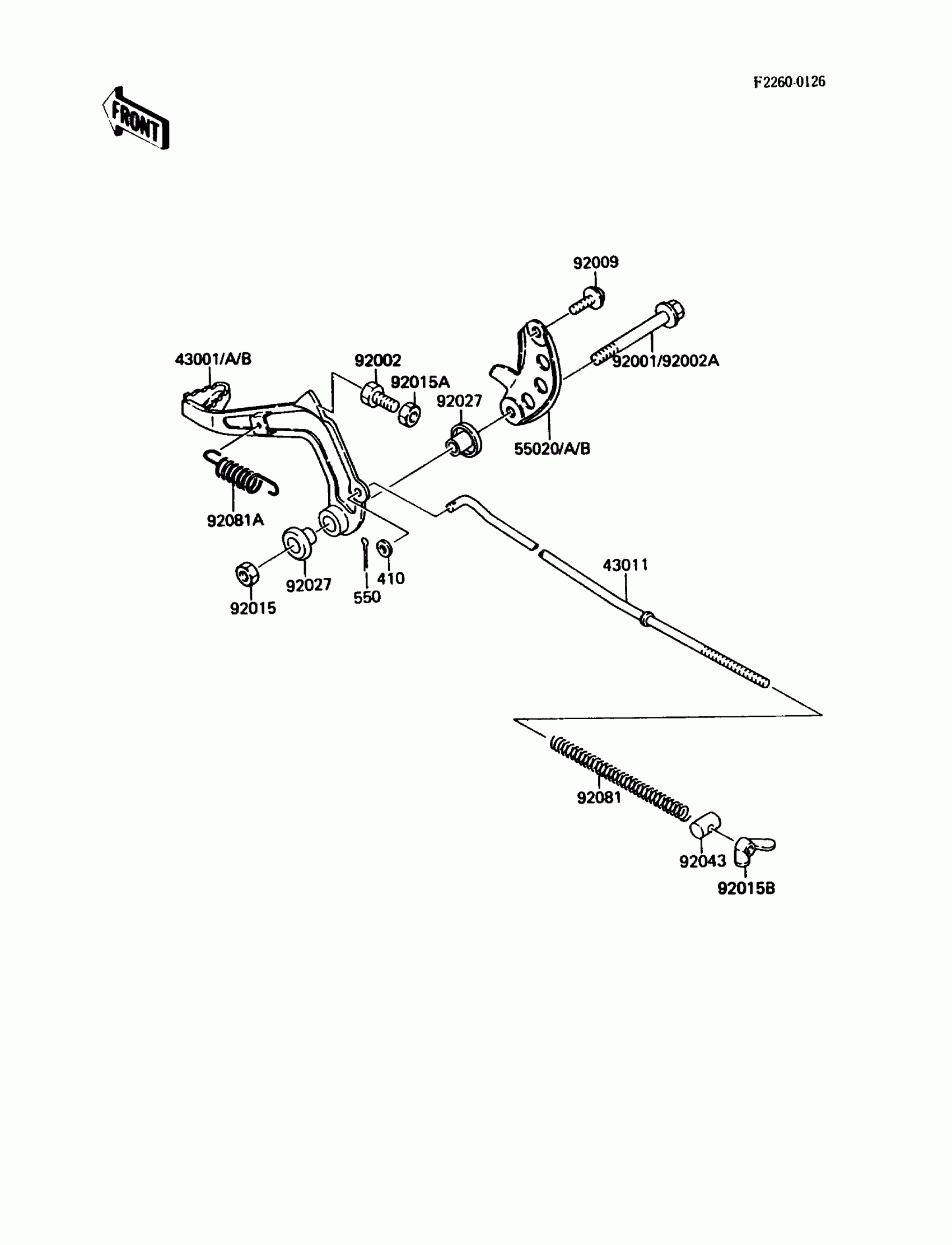

Find the part on the Brake Pedal diagram for your 1988 Kawasaki KDX80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KDX80 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001B

LEVER-BRAKE,PEDAL

43001-1244

1

$75.79

In stock

43011

ROD-BRAKE

43011-1104

1
Out of stock

55020B

GUARD,BRAKE PEDAL

55020-1288

1

$8.85

In stock

92002

BOLT,6X20

92002-1373

1

$3.92

In stock

92002A

BOLT,FLANGED,8X40

92002-1838

1
Out of stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,8MM

92015-1134

1
Out of stock

92015A

NUT,6MM

92015-1391

1

$2.05

In stock

92015B

NUT,WING,6MM

92015-4004

1

$5.81

In stock

92027

COLLAR,BRAKE PEDAL

92027-1497

1

$12.73

In stock

92043

PIN,BRAKE ROD

92043-039

1

$5.06

In stock

92081

SPRING,BRAKE ROD

92081-1688

1

$3.69

In stock

92081A

SPRING,RETURN

92081-1839

1
Out of stock

410

1

$1.19

In stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
