Description

Price

13070

GUIDE,CLUTCH BALL

13070-S014

$12.91

13087

HUB-CLUTCH

13087-S004

$34.41

13088

PLATE-FRICTION

13088-S005

$16.09

13089

PLATE-CLUTCH

13089-S004

$5.15

13089A

PLATE-CLUTCH,CLUTCH INNER

13089-S005

$12.24

13089B

PLATE-CLUTCH,OUTER

13089-S006

$7.40

13089C

PLATE-CLUTCH,CLUTCH PRESSURE

13089-S007

$9.32

13095

HOUSING-COMP-CLUTCH

13095-S007

$104.97

13102

RELEASE-COMP-CLUTCH

13102-S004

$8.65

13102A

RELEASE-COMP-CLUTCH

13102-S005

$24.88

13271

PLATE,CLUTCH BALL

13271-S055

$23.32

13280

HOLDER,CLUTCH PUSH

13280-S029

$12.91

16171

LINK,RELEASE ARM

16171-S001

$33.90

21187

ARM-ASSY,CLUTCH RELEASE PLATE

21187-S006

$27.61

92026

SPACER,DRIVEN GEAR

92026-S056

$14.16

92026A

SPACER,RELEASE PLATE SPRING

92026-S112

$4.29

92033

RING-SNAP,CLUTCH SLEEVE HUB

92033-S043

$2.88

92033A

RING-SNAP,RELEASE PLATE ARM

92033-S044

$1.84

92046

BEARING-NEEDLE

92046-S022

$11.70

92140

BALL,OIL CHECK VALVE

92140-S003

$2.42

92145

SPRING

92145-S114

$4.26

92145A

SPRING,CLUTCH RELEASE PLATE

92145-S115

$2.42

92153

BOLT

92153-S013

$1.92

92153A

BOLT,8X17

92153-S316

$4.20

92172

SCREW

92172-S012

$1.92

92200

WASHER,DRIVEN GEAR

92200-S085

$3.92

92200A

WASHER,CLUTCH

92200-S087

$2.53

92200B

WASHER,8X16X1.0

92200-S165

$2.42

92210

NUT

92210-S001

$1.92

92210A

NUT

92210-S116

$3.34

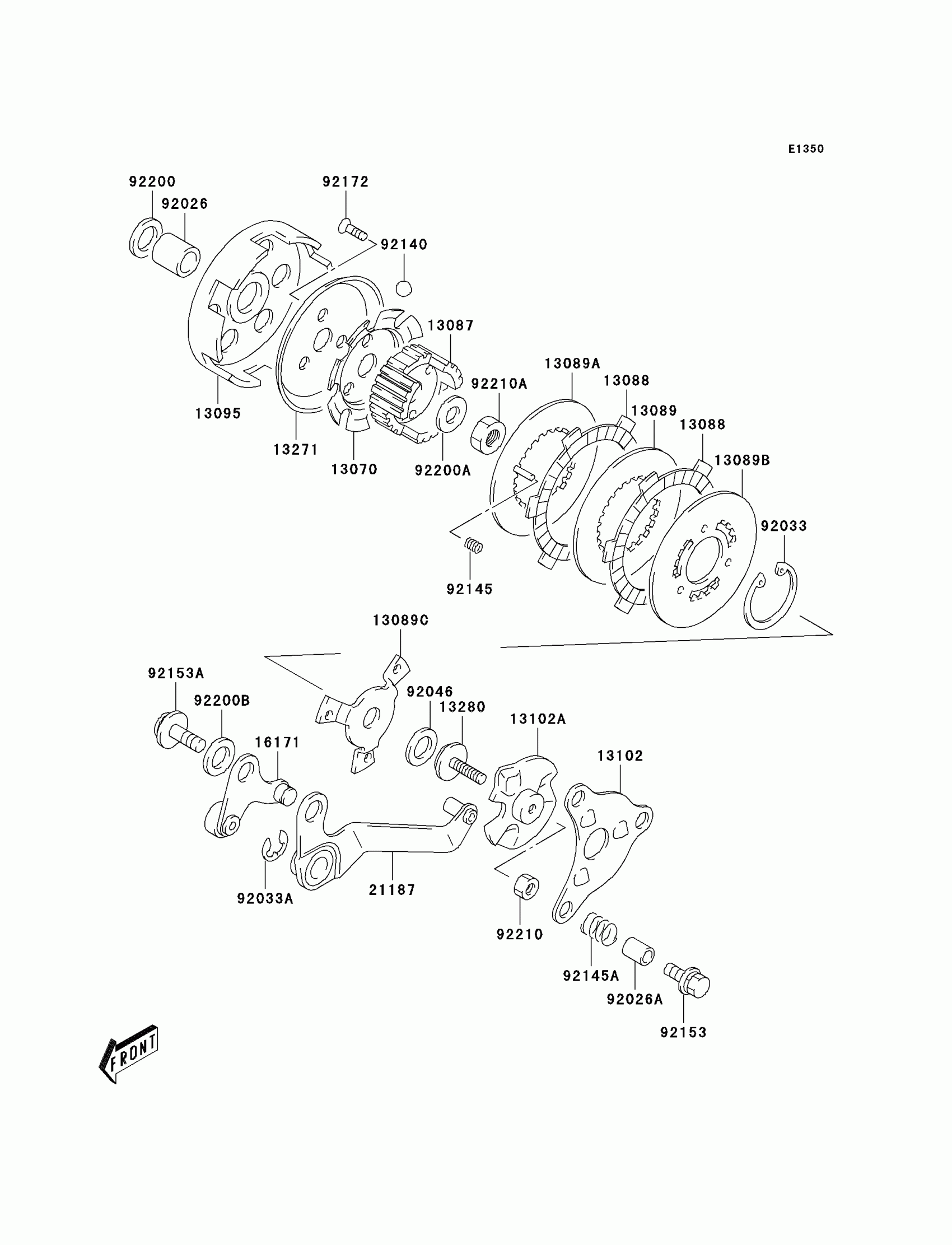

Kawasaki KDX50 Clutch Diagram

GUIDE,CLUTCH BALL

HUB-CLUTCH

PLATE-FRICTION

PLATE-CLUTCH

PLATE-CLUTCH,CLUTCH INNER

PLATE-CLUTCH,OUTER

PLATE-CLUTCH,CLUTCH PRESSURE

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE,CLUTCH BALL

HOLDER,CLUTCH PUSH

LINK,RELEASE ARM

ARM-ASSY,CLUTCH RELEASE PLATE

SPACER,DRIVEN GEAR

SPACER,RELEASE PLATE SPRING

RING-SNAP,CLUTCH SLEEVE HUB

RING-SNAP,RELEASE PLATE ARM

BEARING-NEEDLE

BALL,OIL CHECK VALVE

SPRING

SPRING,CLUTCH RELEASE PLATE

BOLT

BOLT,8X17

SCREW

WASHER,DRIVEN GEAR

WASHER,CLUTCH

WASHER,8X16X1.0

NUT

NUT
