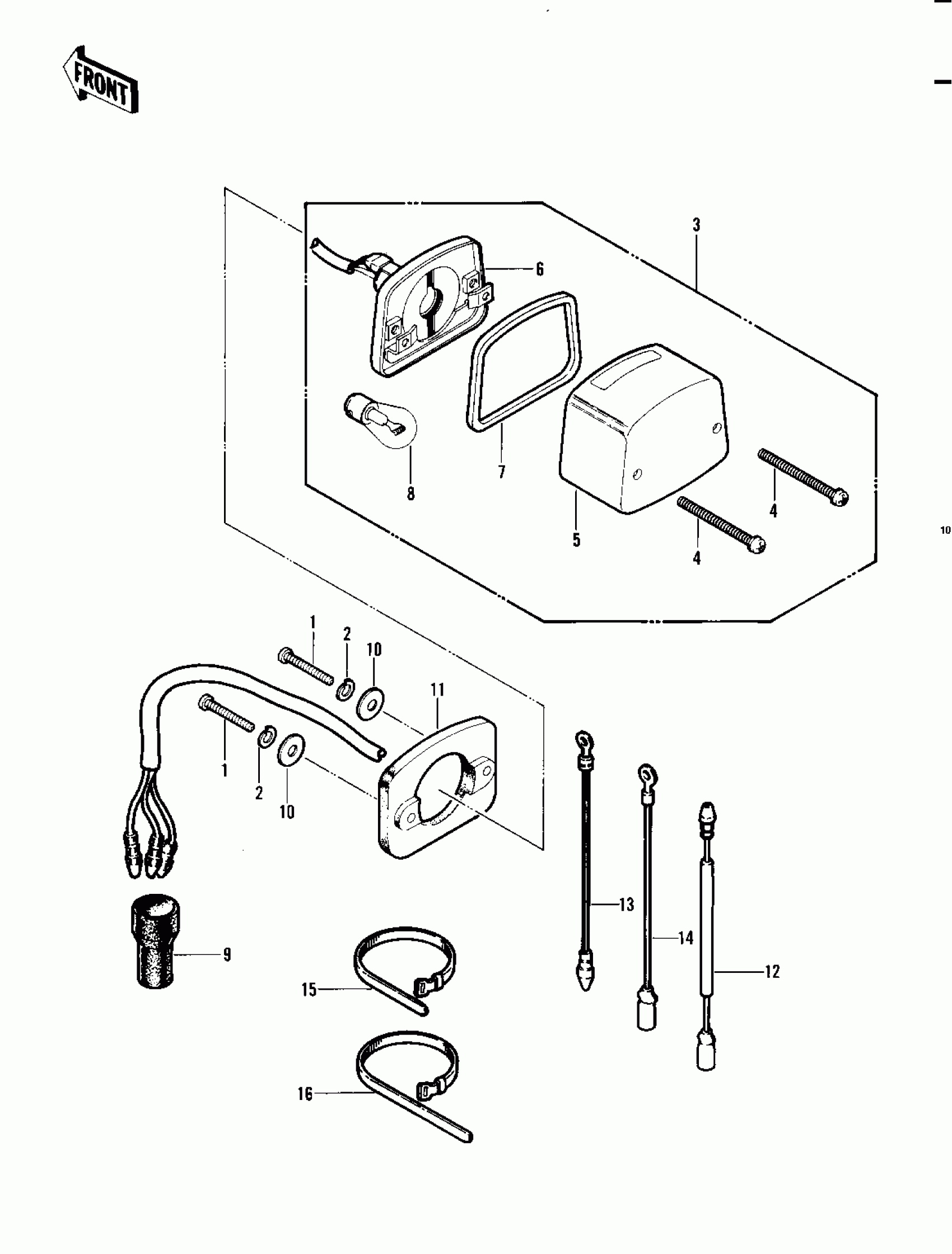

Kawasaki KDX450 TAILLIGHT/CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

SCREW-PAN-CROS

220B0520

$0.68

2

WASHER SPRING 5MM

461F0500

$0.69

3

LAMP,TAIL

23025-075

Unavailable

4

SCREW-PAN-CROS

220B0330

$1.73

5

LENS,TAIL LAMP

23026-040

Unavailable

6

CASE,TAIL LAMP

23027-044

$83.51

7

GASKET,TAIL LIGHT

23028-020

Unavailable

8

BULB,6V 17/5.3W

92069-028

$9.63

9

BOOT,HARNESS COVER

49006-1048

Unavailable

10

WASHER,5.2X16X1.2

92022-263

$1.66

11

DAMPER RUBBER

92075-4014

Unavailable

12

WIRE, TAILLAMP

26011-4001

Unavailable

13

WIRE, GROUND HEADLAMP

26011-4002

Unavailable

14

WIRE, GROUND TAILLITE

26011-4003

Unavailable

15

BAND

92072-3505

Unavailable

16

BAND,L=292.1

92072-3509

Unavailable
