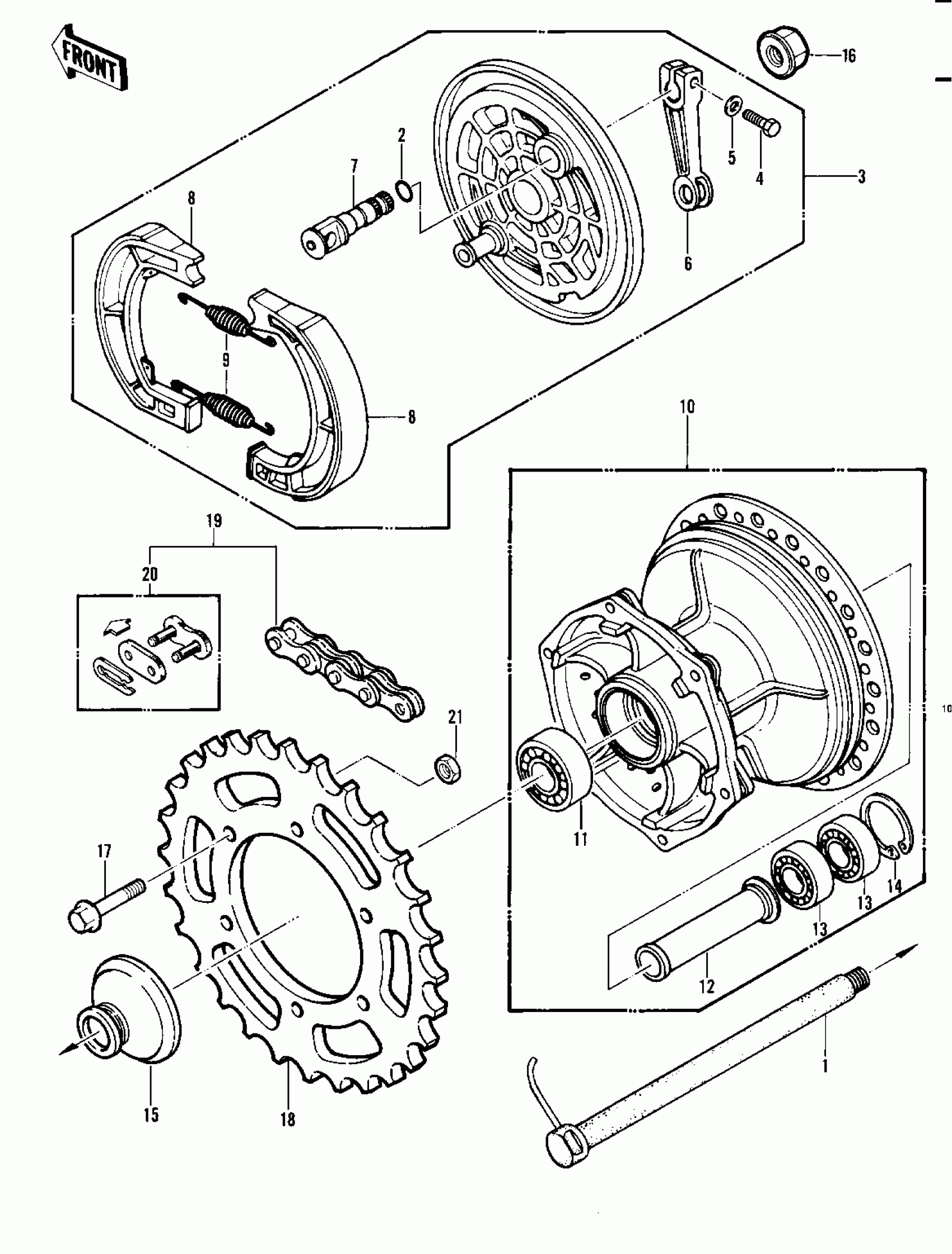

Kawasaki KDX450 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

AXLE,REAR

41068-4002

$164.39

2

O RING,15MM

670B2015

$1.08

3

PANEL-ASY,RR BRK

41035-1047

$308.85

4

BOLT-UPSET

112G0622

Unavailable

5

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

6

LEVER BRAKE CAM

41053-1022

Unavailable

7

CAME-BRAKE

41050-1018

$23.36

8

SHOE-BRAKE

41048-1018

$38.11

9

SPRING,BRAKE SHOE

42020-004

$6.48

10

DRUM-ASSY,RR BRK

41034-1019

$495.88

11

BEARING-BALL,6204UUC3

601B6204UU

$26.51

12

COLLAR,REAR BRAKE

92027-1207

$46.56

13

BEARING-BALL,#6003UC3

601B6003U

$20.98

14

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

15

COLLAR

92027-4013

Unavailable

16

NUT,16MM

92015-1015

Unavailable

17

BOLT,FLANGED,8X36

92001-1041

$9.54

18

REAR SPROCKET,50T STD

42041-1006

Unavailable

18

REAR SPROCKET,48T

42041-1022

Unavailable

18

REAR,SPROCKET,52T

42041-1008

Unavailable

19

CHAIN-DRIVE

92057-4009

$84.36

20

JOINT-CHAIN

92058-4001

$2.63

21

NUT,8MM

92015-1134

$7.98
