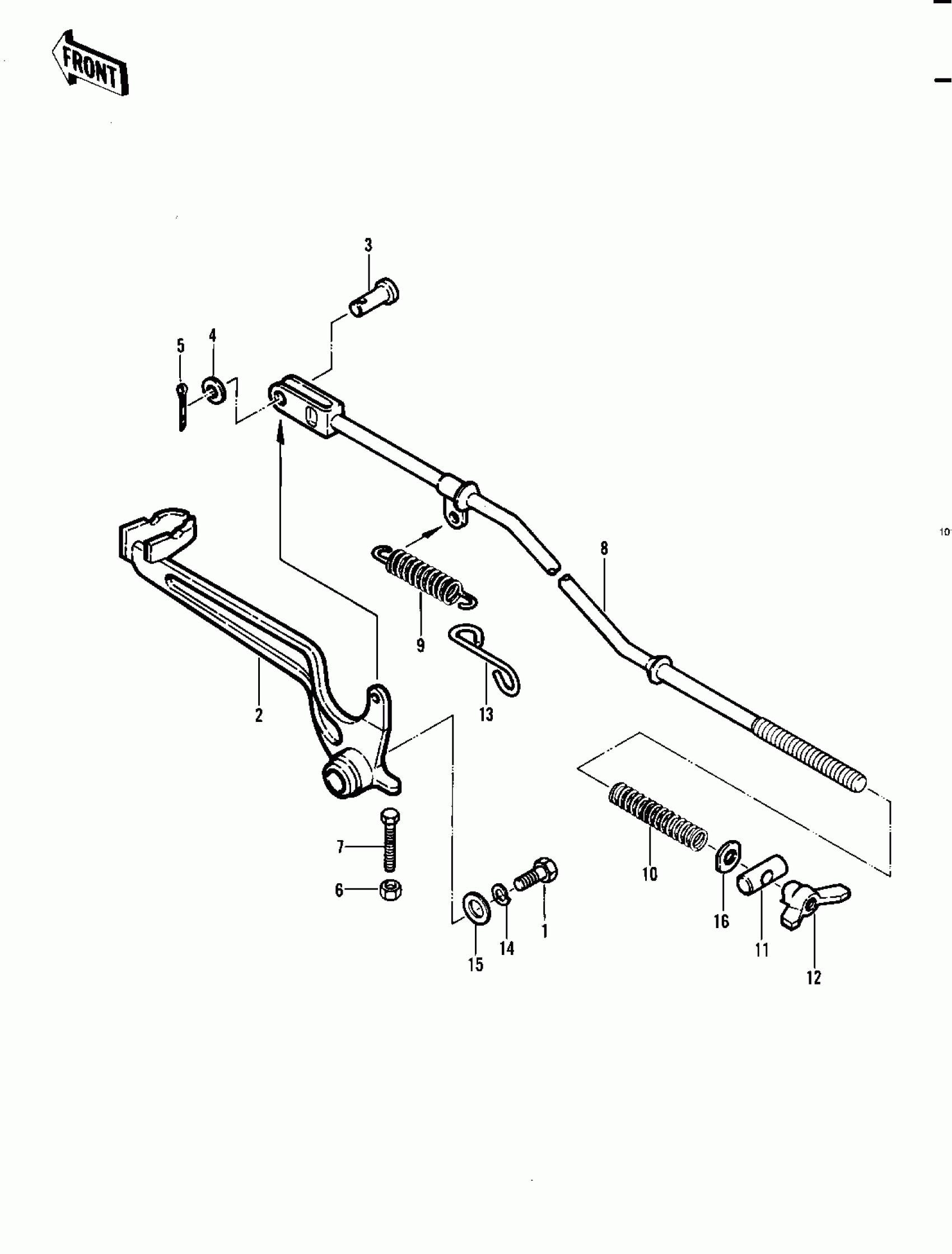

Kawasaki KDX450 BRAKE PEDAL Diagram

#

Description
Price

1

BOLT SMALL

114G0812

Unavailable

2

LEVER-BRAKE,PEDAL

43001-4007

$77.83

3

PIN,6X17

92043-064

$3.57

4

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

5

PIN COTTER 2.0X15

550D2015

Unavailable

6

NUT 6MM

311B0600

Unavailable

7

BOLT 6X22

112B0622

Unavailable

8

ROD-BRAKE

43011-4004

Unavailable

9

SPRING RETURN

92081-1059

Unavailable

10

SPRING,BRAKE ROD

43012-001

$3.54

11

PIN,BRAKE

92043-1024

$10.44

12

NUT,WING,6MM

92015-4004

$5.58

13

HOOK

27012-4001

$0.42

14

WASHER SPRING 8MM

461F0800

Unavailable

15

WASHER,8.5X20X1.6

92022-1561

$3.29

16

WASHER, BRAKE ROD

92022-4003

Unavailable
