Description

Price

1

CHOKE PLATE

13169-4008

Unavailable

2

BODY-COMP-MUFFLER

18002-1191

$507.71

3

BODY-COMP-MUFFLER

18002-1192

$123.67

4

CHOKE PIPE

32032-4015

$12.75

5

NUT,LOCK,8MM

92015-1124

$5.42

6

WASHER,8.5X35X2.3

92022-298

Unavailable

7

COLLAR,FUEL TANK FITT

92027-1134

$10.28

8

CLAMP

92037-177

Unavailable

9

"0" RING,55MM,MUFFLER

92055-1057

$17.72

10

DAMPER,MUFFLER FITING

92075-1060

Unavailable

11

DAMPER,MUFFLER

92075-1196

Unavailable

12

SPRING-CONNECTOR

18071-003

$11.49

13

SEAL,MUFFLER

92093-1014

Unavailable

14

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

15

BOLT,FLANGED,8X30

130G0830

$1.92

16

WASHER PLAIN 8MM

410B0800

$0.93

17

WASHER SPRING 8MM

461F0800

$0.40

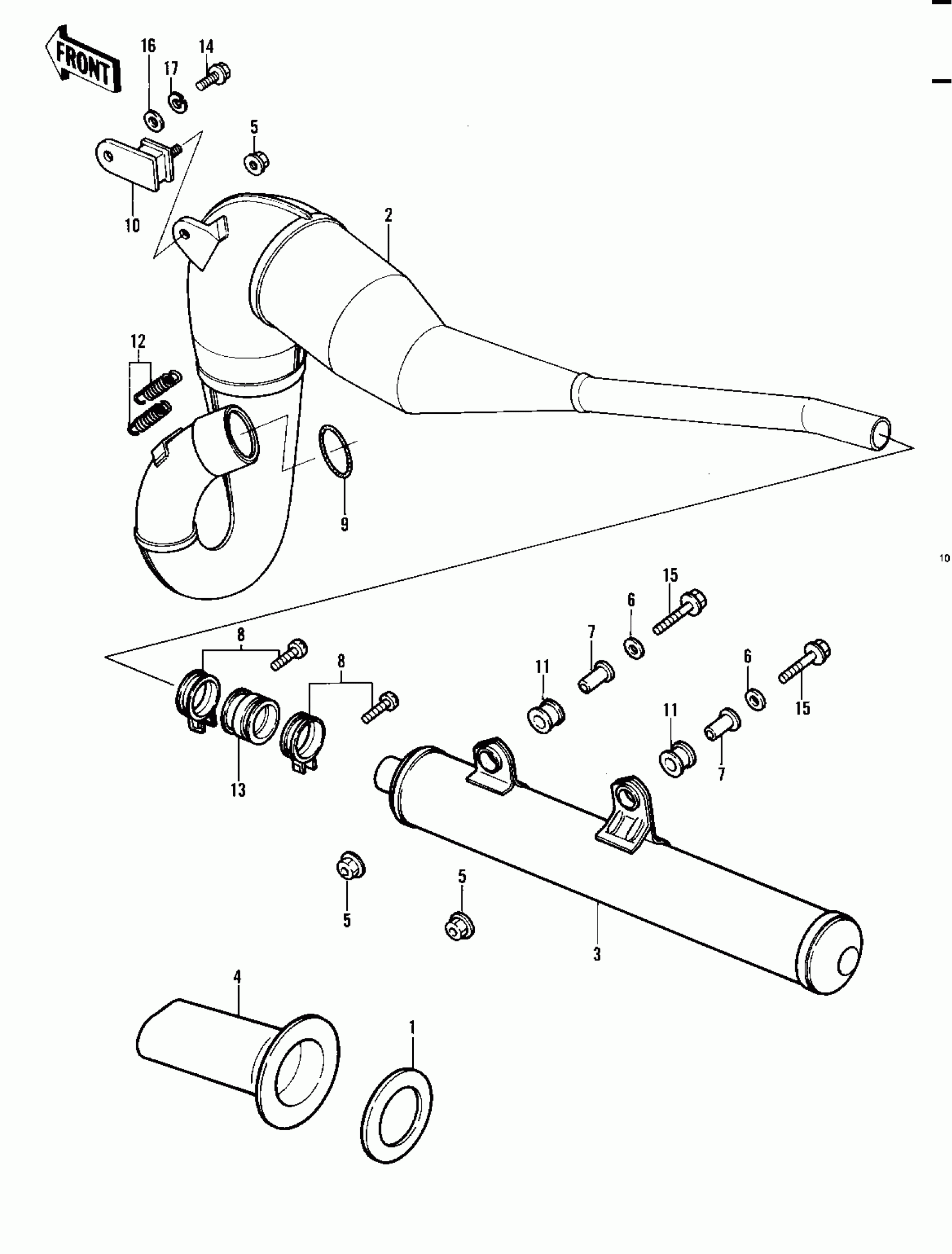

Kawasaki KDX450 MUFFLER Diagram

CHOKE PLATE

BODY-COMP-MUFFLER

BODY-COMP-MUFFLER

CHOKE PIPE

NUT,LOCK,8MM

WASHER,8.5X35X2.3

COLLAR,FUEL TANK FITT

CLAMP

"0" RING,55MM,MUFFLER

DAMPER,MUFFLER FITING

DAMPER,MUFFLER

SPRING-CONNECTOR

SEAL,MUFFLER

BOLT-SMALL-UPSET 8X25

BOLT,FLANGED,8X30

WASHER PLAIN 8MM

WASHER SPRING 8MM
