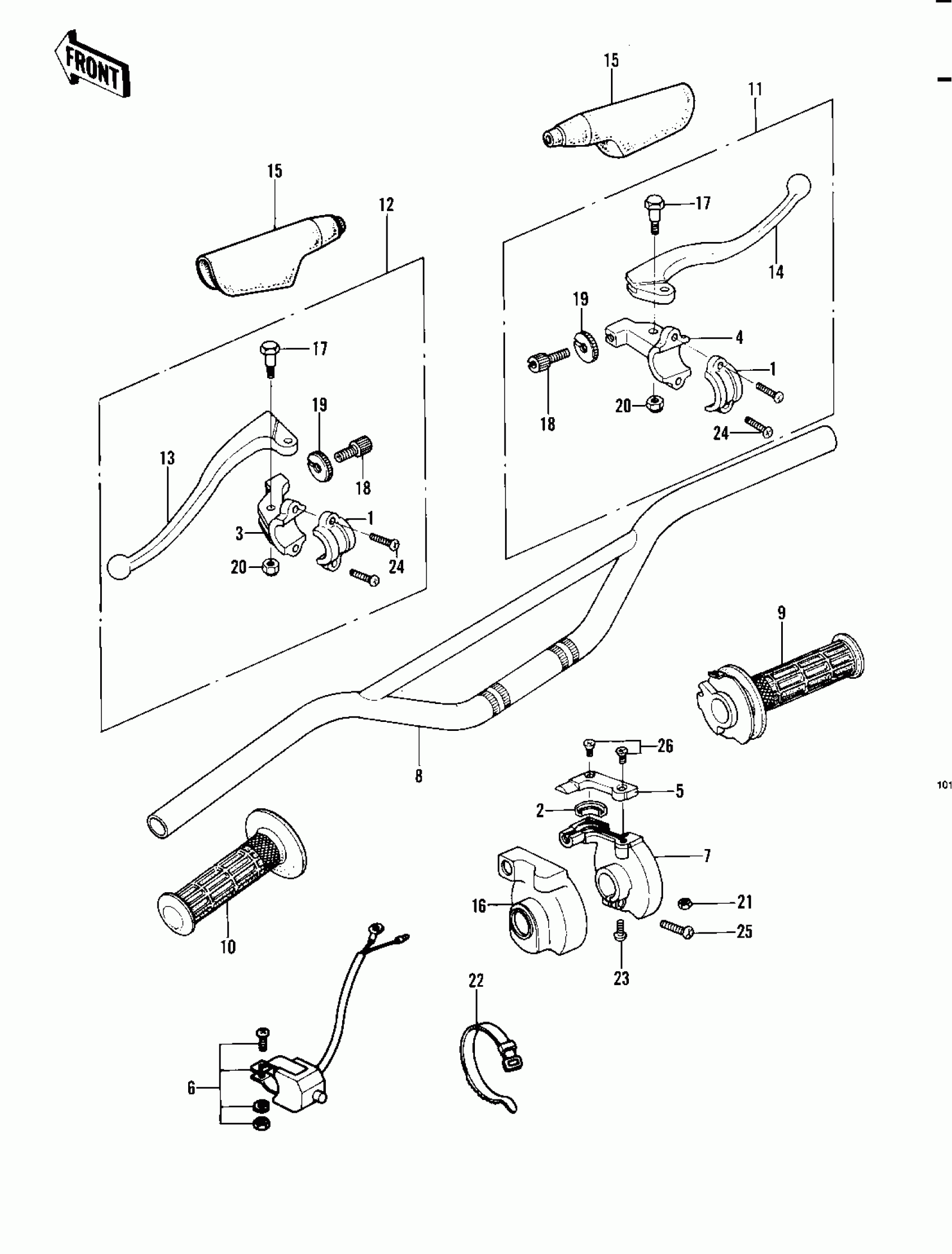

Kawasaki KDX450 HANDLEBAR Diagram

#

Description
Price

1

BRACKET-A,LEVER HOLDER

11036-1297

Unavailable

2

GUIDE,THROTTLE PEACE

13070-1053

Unavailable

3

HOLDER,CLUTCH LEVER

13091-1131

$46.92

4

HOLDER,BRAKE LEVER

13091-1135

Unavailable

5

COVER,THROTTLE UPP,R

14025-1392

Unavailable

6

SWITCH,ASSY,ENG STOP

27010-1018

Unavailable

7

CASE,THROTTLE LWR,RH

32099-1024

$41.86

8

HANDLEBAR

46003-4001

Unavailable

9

GRIP-ASSY,THROTTLE

46019-1020

Unavailable

10

GRIP,LH

46075-1024

$25.66

11

LEVER-ASSY-GRIP

46076-1120

Unavailable

12

LEVER-ASSY-GRIP,CLUTCH

46076-1023

$61.32

13

LEVER-GRIP,CLUTCH

46092-1110

$26.28

14

LEVER-GRIP,BRAKE

46092-1109

Unavailable

15

DUST COVER

46071-003

Unavailable

16

BOOT,THROTTLE CASE,R

49006-1082

$29.95

17

BOLT,HEX HEAD,6MM

92001-140

Unavailable

18

SCREW,CABLE ADJUST,8MM

46055-009

$19.07

19

NUT,CABLE ADJUST

46056-006

$8.94

20

NUT,LOCK,6MM

92019-008

$4.26

21

NUT,LOCK,6MM

92019-008

$4.26

22

BAND

92072-3505

Unavailable

23

SCREW PAN HEAD 4X8

220B0408

$0.67

24

SCREW-PAN-CROS

220B0514

$4.04

25

SCREW-PAN-CROS

220B0520

$0.68

26

SCREW-CSK-RD-CROS,4X12

222E0412

$2.63
