1982 Kawasaki KDX450 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1982 Kawasaki KDX450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

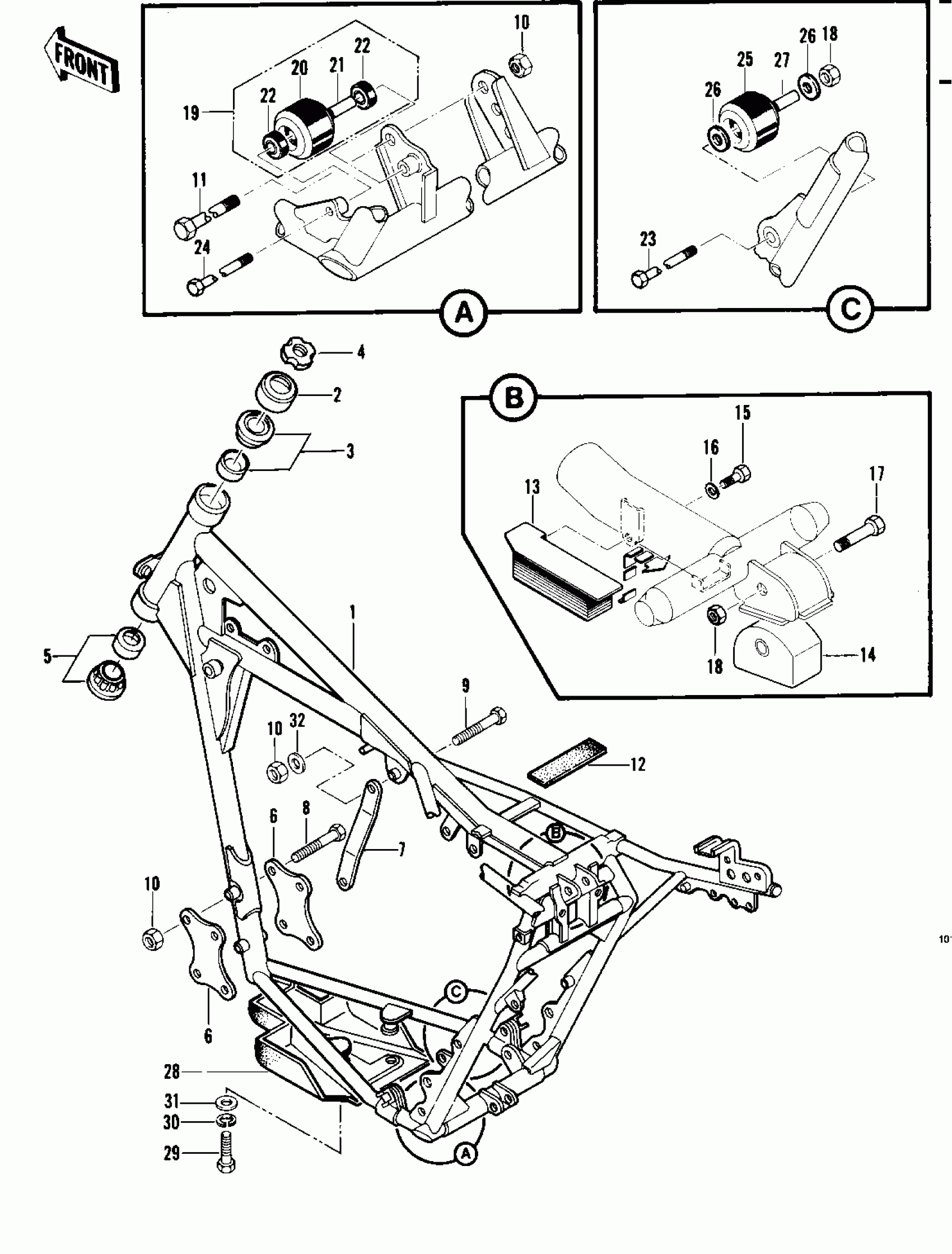

1982 Kawasaki KDX450 Frame/frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

32002-1332

1
Out of stock

2

CAP,STEERING STEM

46098-015

1
Out of stock

3

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

4

NUT,25MM,T=12

92015-1546

1
Out of stock

5

BEARING-ROLLER,LWR,32006JR RS

92116-1008

1
Out of stock

6

BRACKET,ENGINE

32029-1116

1
Out of stock

7

BRACKET,ENGINE

32029-4010

1
Out of stock

8

BOLT HEX HEAD,10X66.5

92001-1033

1
Out of stock

9

BOLT

92001-1412

1
Out of stock

10

NUT,LOCK,10MM

92019-021

1
Out of stock

11

BOLT,HEX HEAD,10X127

92001-4001

1
Out of stock

12

SEAL

92093-1039

1
Out of stock

13

DAMPER,REAR SHOCK

92075-1249

1
Out of stock

14

DAMPER

92075-1348

1
Out of stock

15

BOLT SMALL

114G0812

1
Out of stock

16

WASHER SPRING 8MM

461F0800

1
Out of stock

17

BOLT-SMALL-UPSET

115G0845

1
Out of stock

18

NUT,LOCK,8MM

92015-1124

1
Out of stock

19

ROLLER,CHAIN ADJUST

92122-4004

1
Out of stock

20

ROLLER

92122-1014

1
Out of stock

21

SPACER,CHN GDE ROLLER

92027-4007

1
Out of stock

22

BEARING-BALL,608LLU/2A

92045-1009

1
Out of stock

23

BOLT-SMALL-UPSET

115G0855

1
Out of stock

24

BOLT HEX HEAD 8X70

114B0870

1
Out of stock

25

ROLLER

92122-4002

1
Out of stock

26

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

27

COLLAR

92027-4012

1
Out of stock

28

SKID PLATE

55020-4003

1
Out of stock

29

BOLT-UPSET,6X16

112G0616

1
Out of stock

30

WASHER SPRING 6MM

461F0600

1
Out of stock

31

WASHER-PLAIN,7MM

92022-240

1
Out of stock

32

WASHER-PLAIN,10MM

411B1000

1
Out of stock
