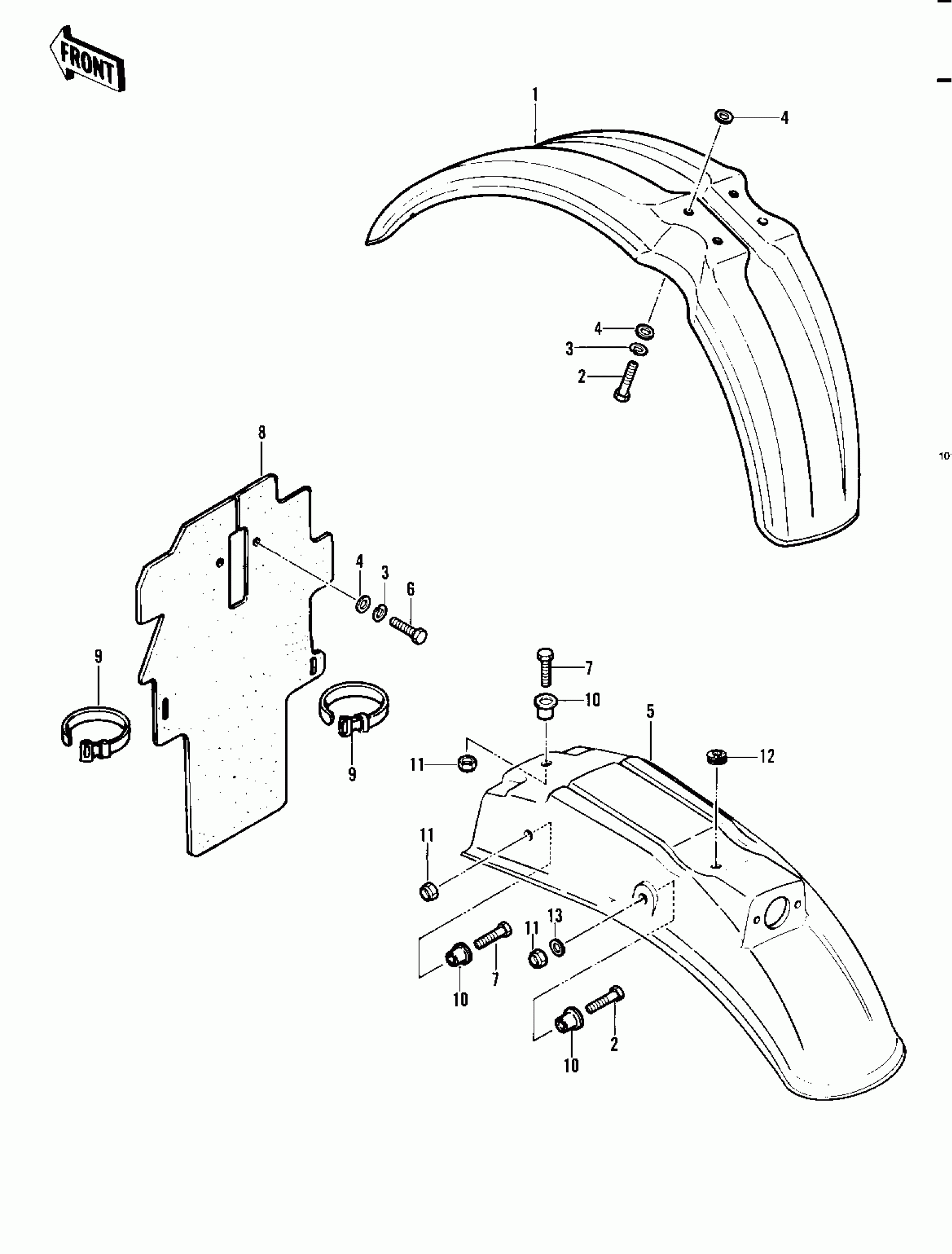

Kawasaki KDX450 FENDERS Diagram

#

Description

Price

1

FENDER-FRONT,L.GREEN

35004-1233-6W

Unavailable

2

BOLT-UPSET,6X16

112G0616

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

WASHER,6.5X20X1.6

92022-125

$1.08

5

FENDER-RR,L.GREEN

35022-1068-6W

Unavailable

6

BOLT-UPSET,6X12

112G0612

Unavailable

7

BOLT-UPSET 6X14

112B0614

Unavailable

8

FLAP

35019-1013

Unavailable

9

BAND

92072-3505

Unavailable

10

COLLAR,L=5.1

92027-1260

$4.67

11

NUT,LOCK,6MM

92019-008

$3.12

12

GROMMET

92071-024

$4.14

13

WASHER PLAIN 6MM

411B0600

Unavailable
