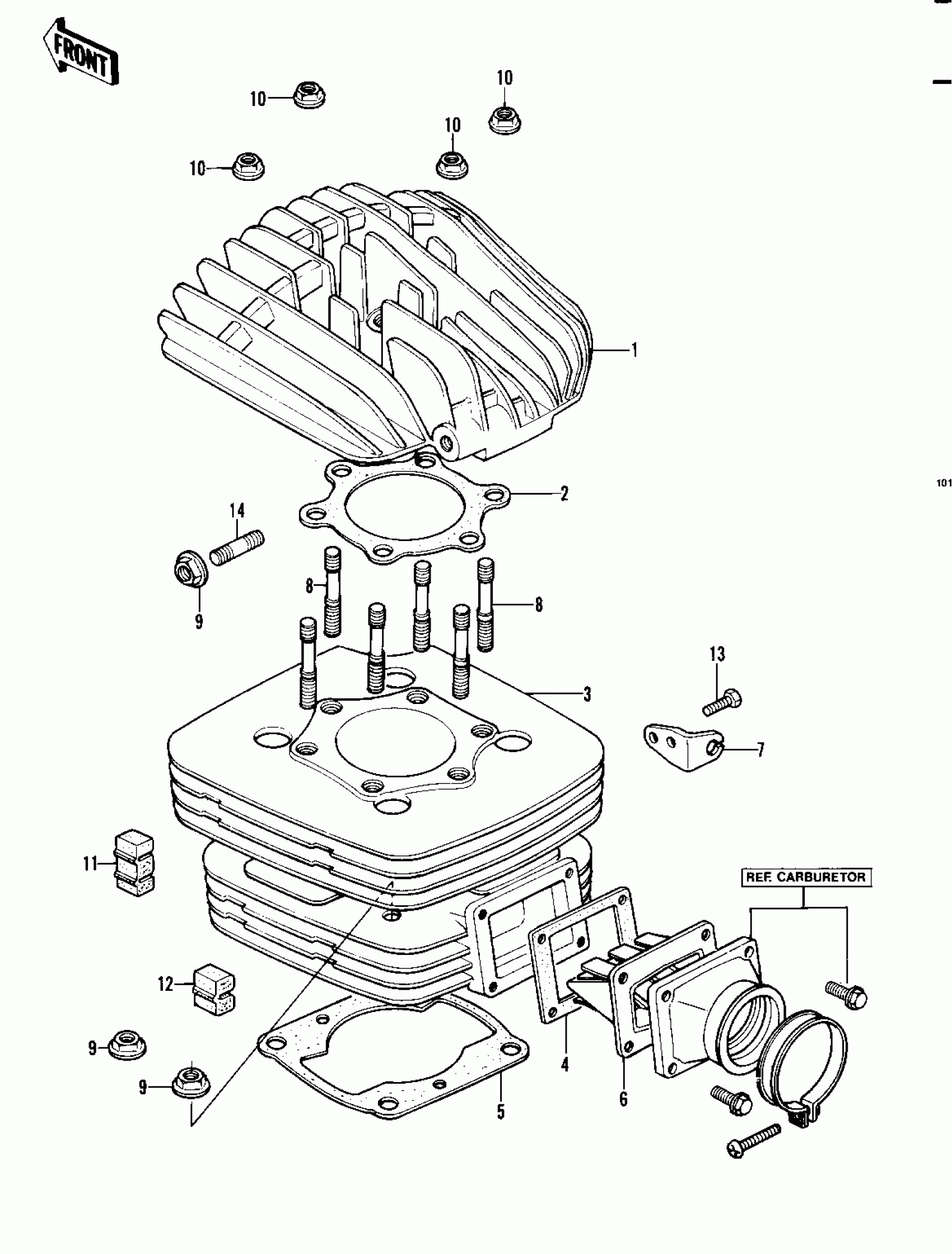

Kawasaki KDX450 CYLINDER HEAD/CYLINDER/REED VALVE Diagram

#

Description

Price

1

HEAD,CYLINDER,F.BLACK

11001-1030

Unavailable

2

GASKET,HEAD,CYLINDER

11004-1015

Unavailable

3

CYLINDER-ENGINE

11005-1149

Unavailable

4

GASKET,REED VALVE

11009-1018

Unavailable

5

GASKET,CYLINDER BASE

11009-1130

Unavailable

6

VALVE ASSY,REED

12021-1007

Unavailable

7

HOLDER

13091-1119

Unavailable

8

STUD,CYLINDER

92004-1022

Unavailable

9

NUT,FLANGED,10MM

92015-1415

$4.69

10

NUT,FLANGED,8MM

92015-1014

$0.65

11

DAMPER,CYLINDER

92075-1160

Unavailable

12

DAMPER,CYLINDER

92075-1161

Unavailable

13

BOLT-UPSET

112G0618

$1.01

14

STUD,10X18

175G1018

$3.61
