Description

Price

1

PISTON-ENGINE

13001-1075

Unavailable

2

PIN-PISTON

13002-031

Unavailable

3

RING SET,PISTON

13008-5030

Unavailable

4

CRANKSHAFT-COMP

13031-1060

Unavailable

5

BEARING-SMALL END,KTV192425

13033-1055

$30.91

6

BEARING N,KT263322EGS

13034-1012

Unavailable

7

PIN,CRANK,12X26X62

13035-1003

Unavailable

8

CRANKSHAFT,RH

13037-1113

Unavailable

9

CRANKSHAFT

13037-1116

Unavailable

10

CONNECTING ROD ASSY

13044-5011

Unavailable

11

GEAR,PRIMARY,26T

13097-1019

Unavailable

12

NUT,18MM

92015-019

$7.22

13

WASHER LOCK 18MM

92024-015

Unavailable

14

WASHER,CONROD SIDE

92026-093

$26.41

15

RING-SNAP,PISTON PIN

92036-008

$0.49

16

RING-O,30MM

92055-1047

$8.46

17

WASHER,LOCK,18M/M

464H1800

$3.34

18

WOODRUFF KEY

510A5100

$2.70

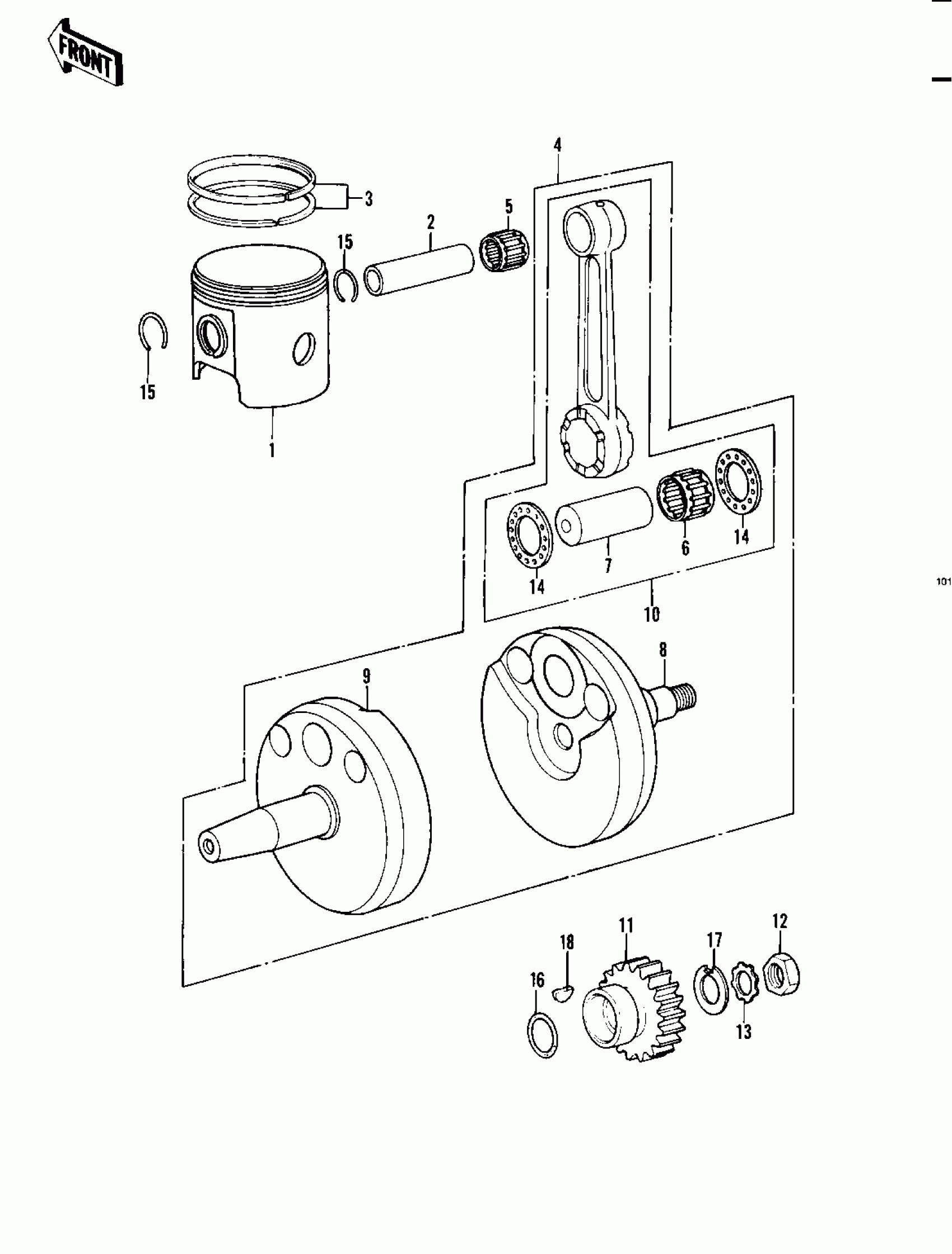

Kawasaki KDX450 CRANKSHAFT/PISTON Diagram

PISTON-ENGINE

PIN-PISTON

RING SET,PISTON

CRANKSHAFT-COMP

BEARING-SMALL END,KTV192425

BEARING N,KT263322EGS

PIN,CRANK,12X26X62

CRANKSHAFT,RH

CRANKSHAFT

CONNECTING ROD ASSY

GEAR,PRIMARY,26T

NUT,18MM

WASHER LOCK 18MM

WASHER,CONROD SIDE

RING-SNAP,PISTON PIN

RING-O,30MM

WASHER,LOCK,18M/M

WOODRUFF KEY
