Description

Price

1

GASKET,10.5X16X1

92065-058

$3.96

2

SET-CRANKCASE

14001-5106

Unavailable

3

PLATE,POSITION,DRIVE

14014-1012

Unavailable

4

BREATHER

14069-003

$10.29

5

STUD,10X72

92004-1023

$8.22

6

BUSHING,CASE PIVOT

92028-1123

$29.15

7

BUSHING,26X35X14

92028-131

$38.06

8

BUSHING,23X30X13

92028-132

$38.06

9

CLAMP

92037-1073

Unavailable

10

PIN,DOWEL,10X14

92043-1037

$0.74

11

BEARING,BALL

92045-1006

Unavailable

12

BEARING-BALL,#6305

92045-1011

$38.42

13

BEARING-BALL,6306SH2,9TC

92045-1027

$61.39

14

BEARING,NEEDLE,344012

92046-040

Unavailable

15

OIL SEAL,ACJ386210

92049-1046

Unavailable

16

SEAL-OIL

92050-057

$23.48

17

SEAL-OIL

92050-082

$8.58

18

SEAL-OIL,TC32457

92049-1159

$8.60

19

TUBE,6X9X500

92059-1125

$18.63

20

PLUG,DRAIN,10X12

92067-001

$4.41

21

SCREW-PAN-CROS,6X14

220B0614

$1.48

22

SCREW PAN HEAD 6X50

220B0650

$1.25

23

SCREW PAN HEAD 6X70

220B0670

$3.84

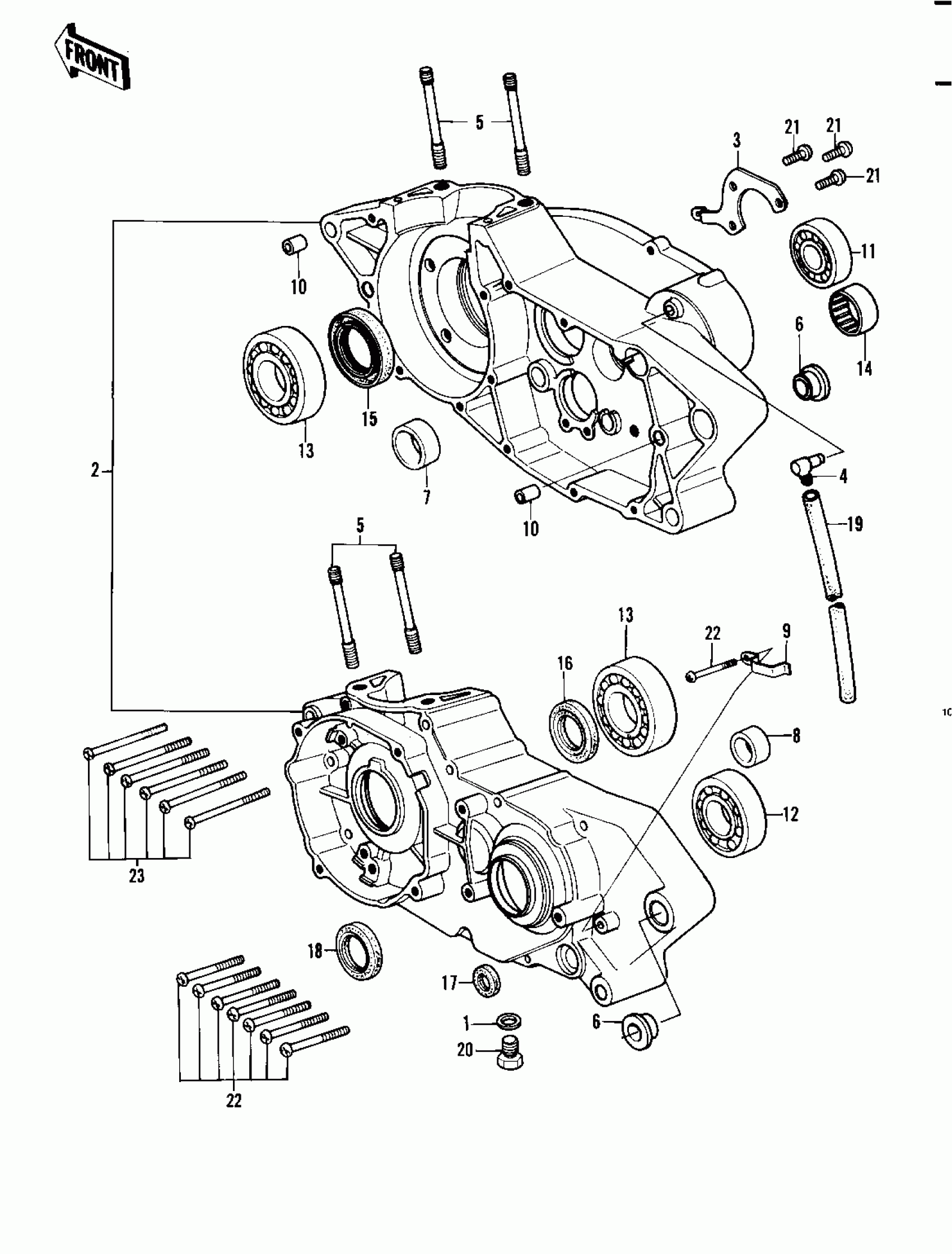

Kawasaki KDX450 CRANKCASE Diagram

GASKET,10.5X16X1

SET-CRANKCASE

PLATE,POSITION,DRIVE

BREATHER

STUD,10X72

BUSHING,CASE PIVOT

BUSHING,26X35X14

BUSHING,23X30X13

CLAMP

PIN,DOWEL,10X14

BEARING,BALL

BEARING-BALL,#6305

BEARING-BALL,6306SH2,9TC

BEARING,NEEDLE,344012

OIL SEAL,ACJ386210

SEAL-OIL

SEAL-OIL

SEAL-OIL,TC32457

TUBE,6X9X500

PLUG,DRAIN,10X12

SCREW-PAN-CROS,6X14

SCREW PAN HEAD 6X50

SCREW PAN HEAD 6X70
