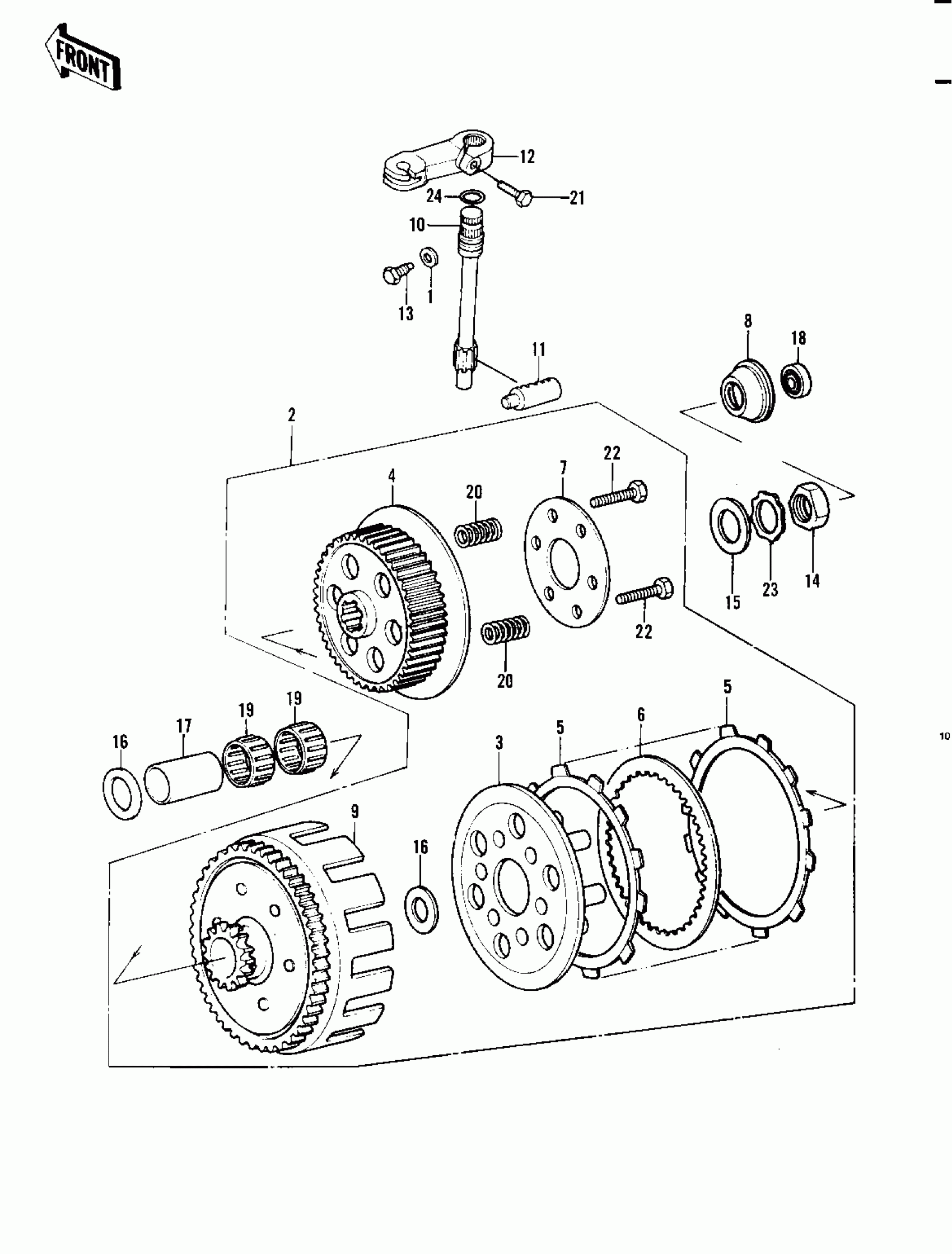

Kawasaki KDX450 CLUTCH Diagram

#

Description
Price

1

GASKET,6X14X0.8

92065-092

$4.34

2

CLUTCH-ASSY

13081-1027

Unavailable

3

WHEEL,CLUTCH

13086-016

Unavailable

4

HUB,CLUTCH

13087-1012

Unavailable

5

PLATE,CLUTCH FRICTION

13088-041

Unavailable

6

PLATE,CLUTCH STEEL

13089-025

Unavailable

7

PLATE,CLUTCH SPRING

13091-016

Unavailable

8

HOLDER,CLUTCH PUSHER

13091-1134

$14.10

9

HOUSING,CLUTCH

13095-1017

Unavailable

10

SHAFT,CLUTCH RELEASE

13106-008

Unavailable

11

ROD,CLUTCH PUSH

13116-025

Unavailable

12

LEVER

13168-1102

Unavailable

13

BOLT,CLUTCH RELEASE

92003-130

$6.01

14

NUT,16M/M

92015-1016

$5.28

15

WASHER,16.8X32X1.6

92022-1277

Unavailable

16

WASHER,CLUTCH THRUST

92022-282

Unavailable

17

BUSHING,CLUT,20X25X40

92028-1067

$33.89

18

BEARING-BALL,#627

92045-026

$19.97

19

BEARING,NEEDLE

92046-1003

$14.10

20

SPRING,CLUTCH

92081-1151

Unavailable

21

BOLT-UPSET

112G0618

$1.01

22

BOLT-UPSET,6X20

112G0620

$2.12

23

WASHER,LOCK,16MM

464H1600

$3.89

24

O RING,10MM

670B2010

$1.50
