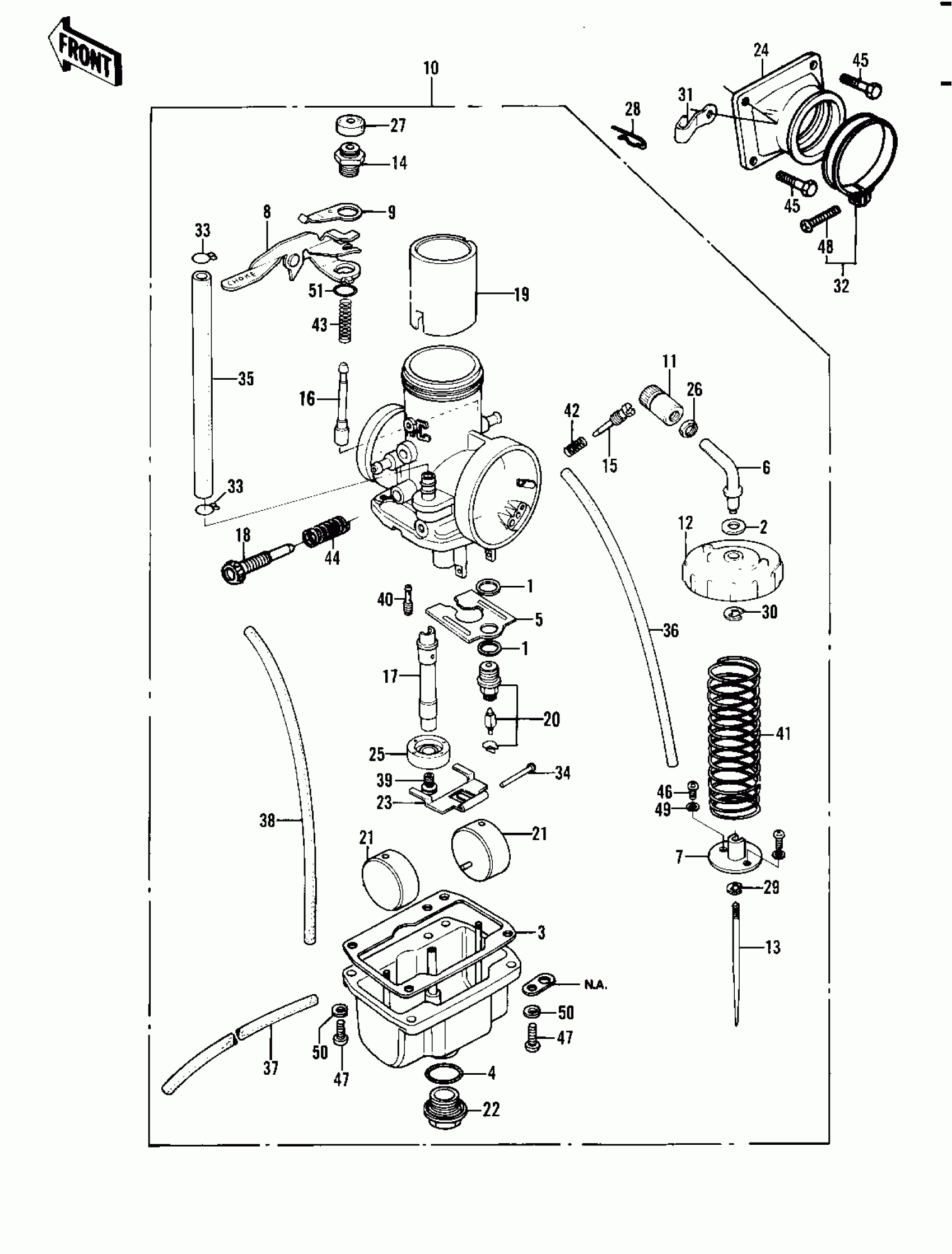

Kawasaki KDX450 CARBURETOR Diagram

#

Description
Price

1

GASKET,FLOAT VALVE

11009-1076

Unavailable

2

GASKET,CABLE GUIDE

11009-1191

Unavailable

3

GASKET,FLOAT CHAMBER

16019-028

Unavailable

4

GASKET,MAIN JET COVER

16038-009

Unavailable

5

BAFFLE-CARB

16038-019

$18.24

6

GUIDE,CABLE

13070-1014

Unavailable

7

CONNECTOR,THROTTLE

13159-1010

Unavailable

8

LEVER,STARTER PLUNGER

13168-1048

Unavailable

9

SPRING PLATE,STARTER

13169-1052

Unavailable

10

CARBURETOR

16001-1490

$221.66

11

ADJUSTER-CABLE

16002-1006

Unavailable

12

TOP,MIXING CHAMBER

16004-1010

$36.19

13

NEEDLE-JET,6G03

16009-1109

Unavailable

14

CAP-STARTER PLUNGER

16012-019

$21.09

15

SCREW

16014-006

$17.15

16

PLUNGER ASSY,STARTER

16016-1008

$24.34

17

NEEDLE JET,R-2

16017-1066

$20.08

18

SCREW,THROTTLE STOP

16021-1034

Unavailable

19

VALVE-THROTTLE,CA3.0

16025-1066

$89.72

20

VALVE-FLOAT,3.3

16030-1027

$39.98

21

FLOAT

16031-029

$64.25

22

COVER-MAIN JET

16049-1004

$12.86

23

ARM-FLOAT

16055-009

Unavailable

24

HOLDER,CARBURETOR

16065-1005

Unavailable

25

HOLDER-CARBURETOR,NEEDLE JET

16065-1045

Unavailable

26

NUT,CABLE ADJUST LOCK

16003-004

$7.34

27

CAP,STARTER PLUNGER

16039-015

$6.88

28

RING-SNAP

92036-018

$3.89

29

CLAMP,E-TYPE

16008-010

$9.21

30

CLAMP,CABLE GUIDE

16008-011

Unavailable

31

CLAMP CABLE

92037-016

Unavailable

32

CLAMP,CARBURETOR HLDR

92037-116

$14.66

33

CLAMP,TUBE

92037-1184

$1.45

34

PIN,FLOAT

16032-008

$6.57

35

TUBE,7.5X12.5X225

92059-1123

Unavailable

36

TUBE,3.5X6.5X410

92059-1142

Unavailable

37

TUBE,3.5X6.5X350

92059-1224

$7.35

38

TUBE,3.5X6.5X450

92059-1225

$5.53

39

MAIN JET,#155R

92063-1025

Unavailable

39

MAIN JET NO 150R

92063-120

Unavailable

39

JET-MAIN NO 152.5R

92063-121

Unavailable

39

MAIN JET,#157.5R

92063-1026

Unavailable

39

MAIN JET,#160R

92063-1018

Unavailable

40

JET-PILOT NO 35

92064-023

$20.51

41

SPRING,THROTTLE VALVE

16006-028

$11.14

42

SPRING,PILOT AIR SCREW

16022-007

$8.13

43

SPRING,STARTER PLUNGER

92081-1181

$4.11

44

SPRING,THRTL STP SCRW

92081-1200

$9.28

45

BOLT-FLANGED,6X20

130G0620

$1.69

46

SCREW-PAN-CROS,3X8

220B0308

$0.59

47

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

48

SCREW-PAN-CROS

220B0535

$3.70

49

WASHER SPRING 3MM

461F0300

$0.46

50

WASHER SPRING 5MM

461F0500

$0.69

51

O RING,9MM

670B1509

$3.65
