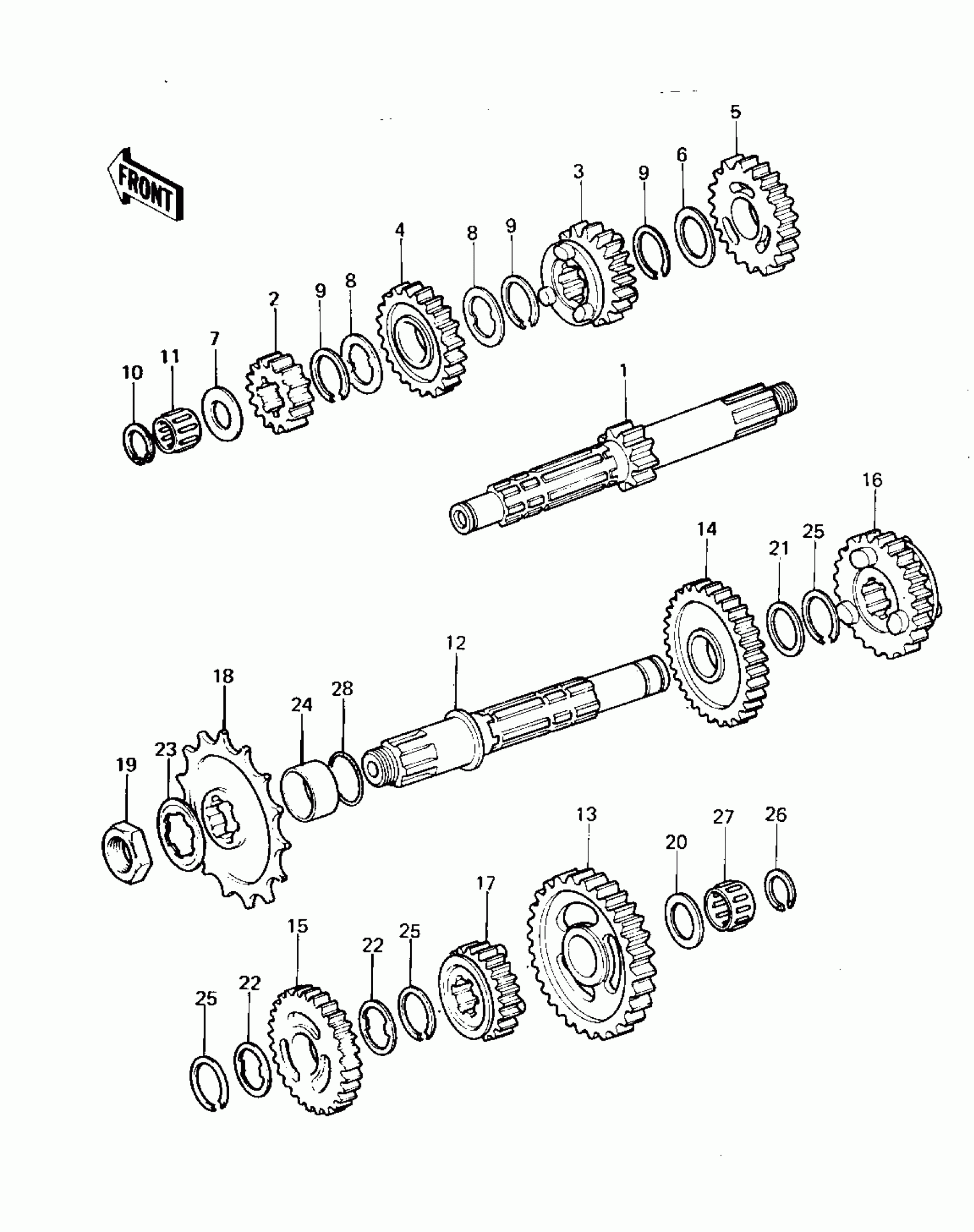

Kawasaki KDX420 TRANSMISSION Diagram

#

Description
Price

1

SHAFT,DRIVE,1ST

13127-1024

Unavailable

2

2ND GEAR,DRIVE,16T

13129-1173

Unavailable

3

3RD GEAR,DRIVE,20T

13129-1174

Unavailable

4

4TH GEAR,DRIVE,21T

13129-1175

Unavailable

5

TOP GEAR,DRIVE,24T

13129-1128

Unavailable

6

WASHER,22.3X27X0.5

92022-198

$5.52

7

WASHER,PLAIN

92022-281

Unavailable

8

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

9

RING-SNAP,20X25.5X1.2

92033-025

$4.96

10

RING-SNAP

92033-032

$4.96

11

BEARING-NEEDLE

92046-1184

$21.25

12

SHAFT,OUTPUT

13128-1023

Unavailable

13

LOW GEAR,OUTPUT,40T

13129-1176

Unavailable

14

2ND GEAR,OUTPUT,28T

13129-1177

Unavailable

15

3RD GEAR,OUTPUT,27T

13129-1178

Unavailable

16

4TH GEAR,OUTPUT,22T

13129-1179

Unavailable

17

TOP GEAR,OUTPUT,19T

13129-1133

Unavailable

18

SPROCKET,ENGINE,15T

13144-1026

Unavailable

18

ENGINE SPROCKET 13T

13144-055

Unavailable

18

ENGINE SPROCKET,14T

13144-1006

Unavailable

18

SPROCKET,ENGINE,16T

13144-1028

Unavailable

19

NUT BEARING ADJUST

42045-008

Unavailable

20

WASHER,20.5X30X1,STEEL

92022-112

$8.86

21

WASHER,25.3X30X0.5

92022-159

$8.58

22

WASHER,TOOTHED,22.5X31X0.5

92024-038

$6.22

23

WASHER,LOCK

92024-065

Unavailable

24

COLLAR,25X32X10.5

92143-1370

$14.50

25

RING-SNAP,24MM

92033-026

$8.79

26

RING-SNAP,18MM

92033-029

$9.82

27

BEARING-NEEDLE,KT202614

92046-1170

$18.16

28

RING-O

92055-035

$5.00
