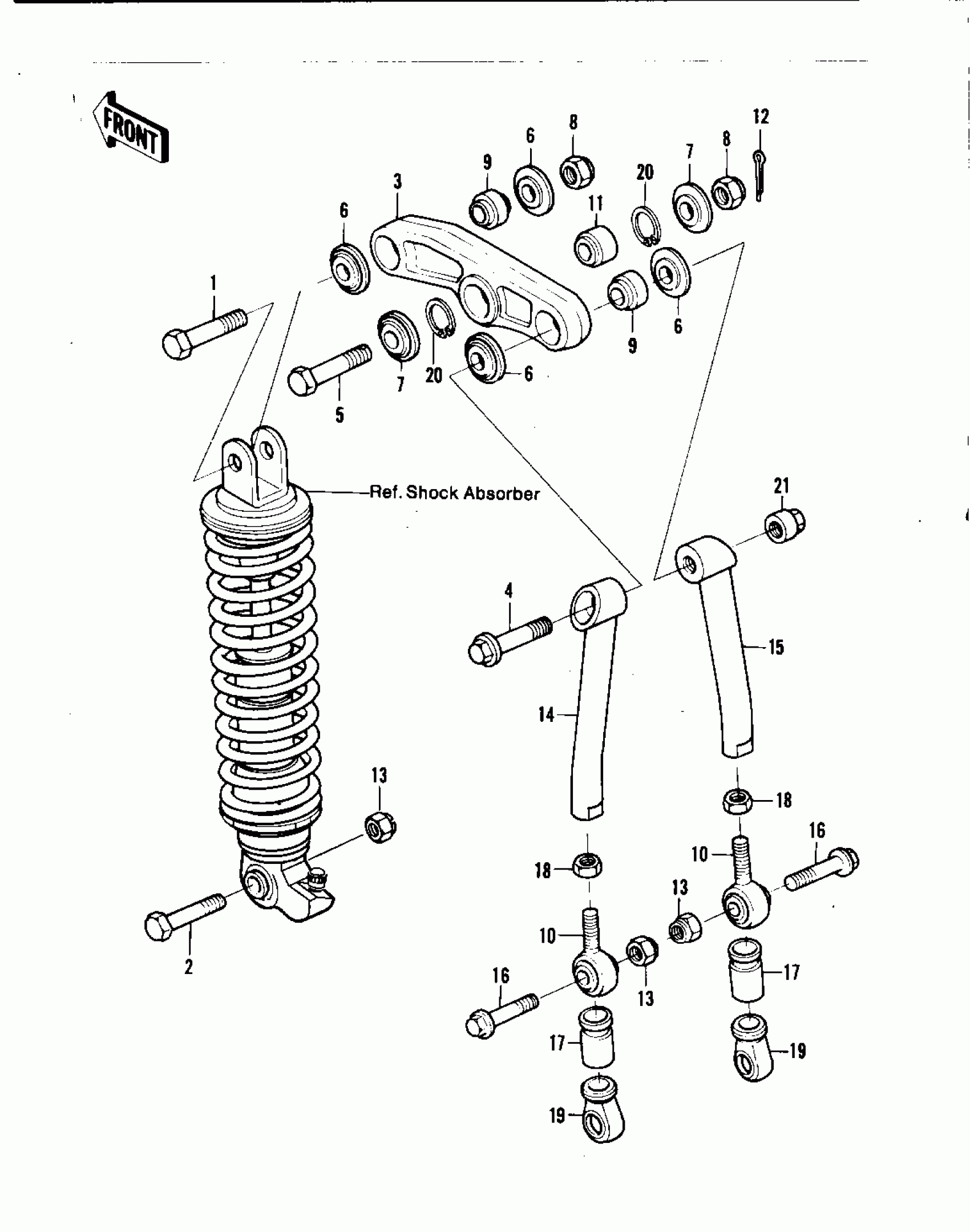

Kawasaki KDX420 REAR SUSPENSION Diagram

#

Description
Price

1

BOLT,HEX HEAD,14X50

92001-1317

Unavailable

2

BOLT,HEX HEAD,12X55

113P1255A

$6.40

3

ARM-SUSP

39007-4001

$85.68

4

BOLT,14X60

92001-1344

Unavailable

5

BOLT,HEX HEAD,14X60

92001-1335

Unavailable

6

CAP,SUSPENSION ARM

11012-1117

Unavailable

7

CAP,SUSPENSION ARM

11012-1168

Unavailable

8

NUT-LOCK,14MM

92019-011

Unavailable

8

NUT-LOCK,14MM

92019-011

Unavailable

9

NUT-LOCK,14MM

92019-011

Unavailable

10

JOINT,BALL,SUSPENSIO

59266-1001

$168.76

11

BUSHING,SUSPENSION A

92028-1087

Unavailable

12

PIN-COTTER,2.5X25

550D2525

$1.26

13

NUT-LOCK,12MM

92019-009

$7.29

14

ROD,UNI-TRAK,LH

46102-4002

$97.27

15

ROD,UNI-TRAK,RH

46102-4003

$97.27

16

BOLT,HEX HEAD,12X48

92001-1297

Unavailable

17

BOOT,BALL JOINT

49006-1045

Unavailable

18

NUT-HEX-FINE

315B1200

$0.93

19

BOOT,BALL JOINT

49006-1046

Unavailable

20

RING,SNAP

92033-1064

Unavailable

21

NUT,UNITRAK LINK

92015-1123

Unavailable
