Description

Price

1

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

2

SPRING-CONNECTOR

18071-003

$11.49

3

BODY-COMP-MUFFLER,BLK

18002-1136

$332.19

4

NUT,LOCK,8MM

92015-1124

$5.42

5

DAMPER,MUFFLER FITING

92075-1060

Unavailable

6

BOLT,FLANGED,8X30

130G0830

$1.92

7

WASHER,8.5X20X1.6

92022-1561

$4.31

8

MUFFLER,F.BLACK

18002-1163

$352.98

9

NUT,LOCK,8MM

92015-1124

$5.42

10

WASHER,8.5X35X2.3

92022-298

Unavailable

11

COLLAR,FUEL TANK FITT

92027-1134

$10.28

12

CLAMP

92037-177

Unavailable

13

DAMPER,MUFFLER

92075-1196

Unavailable

14

SEAL,MUFFLER

92093-1014

Unavailable

15

SCREW-PAN-CROS,5X25

220B0525

$3.67

16

WASHER SPRING 8MM

461F0800

$0.40

17

WASHER PLAIN 8MM

410B0800

$0.93

18

"0" RING,55MM,MUFFLER

92055-1057

$17.72

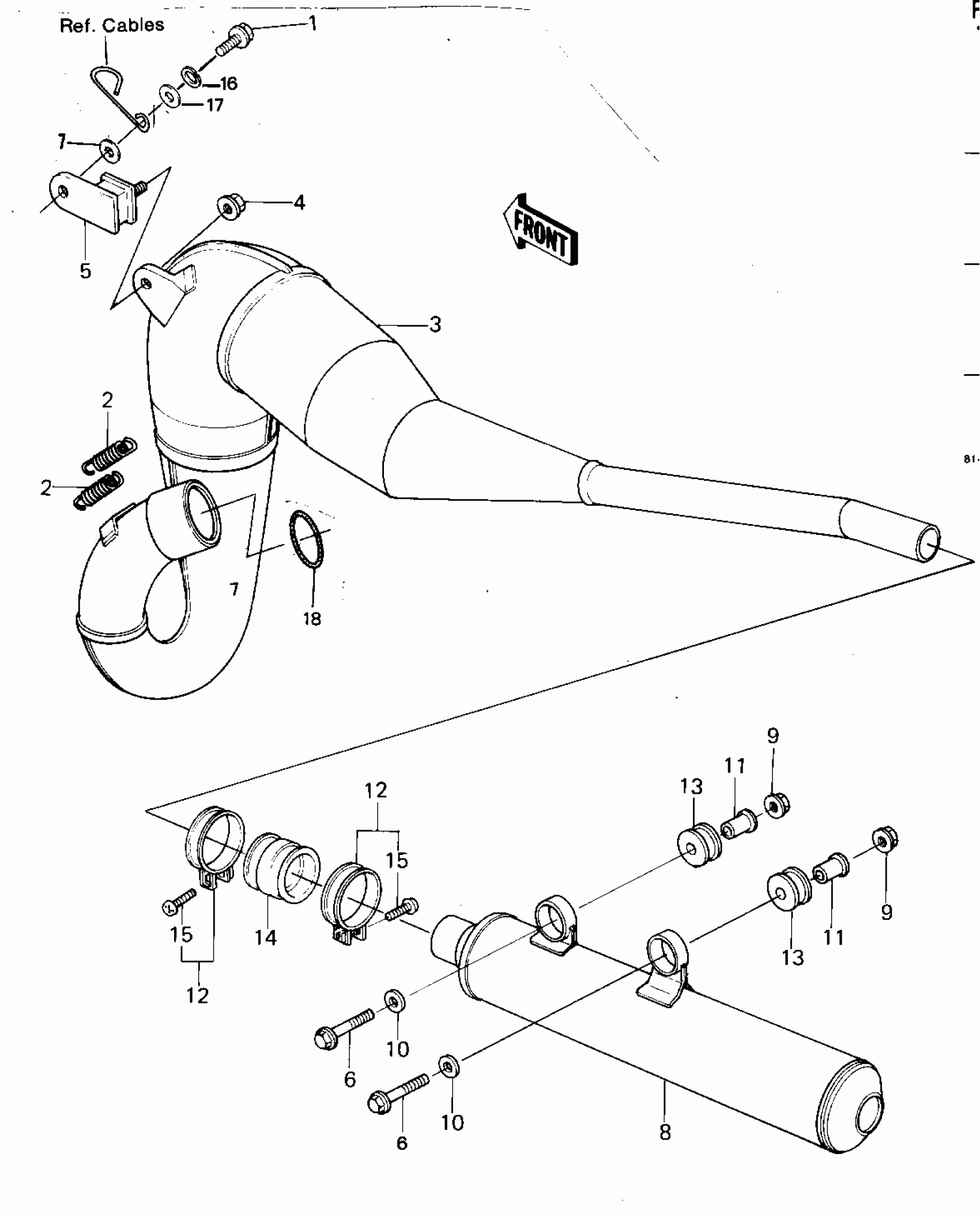

Kawasaki KDX420 MUFFLER Diagram

BOLT-SMALL-UPSET 8X25

SPRING-CONNECTOR

BODY-COMP-MUFFLER,BLK

NUT,LOCK,8MM

DAMPER,MUFFLER FITING

BOLT,FLANGED,8X30

WASHER,8.5X20X1.6

MUFFLER,F.BLACK

NUT,LOCK,8MM

WASHER,8.5X35X2.3

COLLAR,FUEL TANK FITT

CLAMP

DAMPER,MUFFLER

SEAL,MUFFLER

SCREW-PAN-CROS,5X25

WASHER SPRING 8MM

WASHER PLAIN 8MM

"0" RING,55MM,MUFFLER
