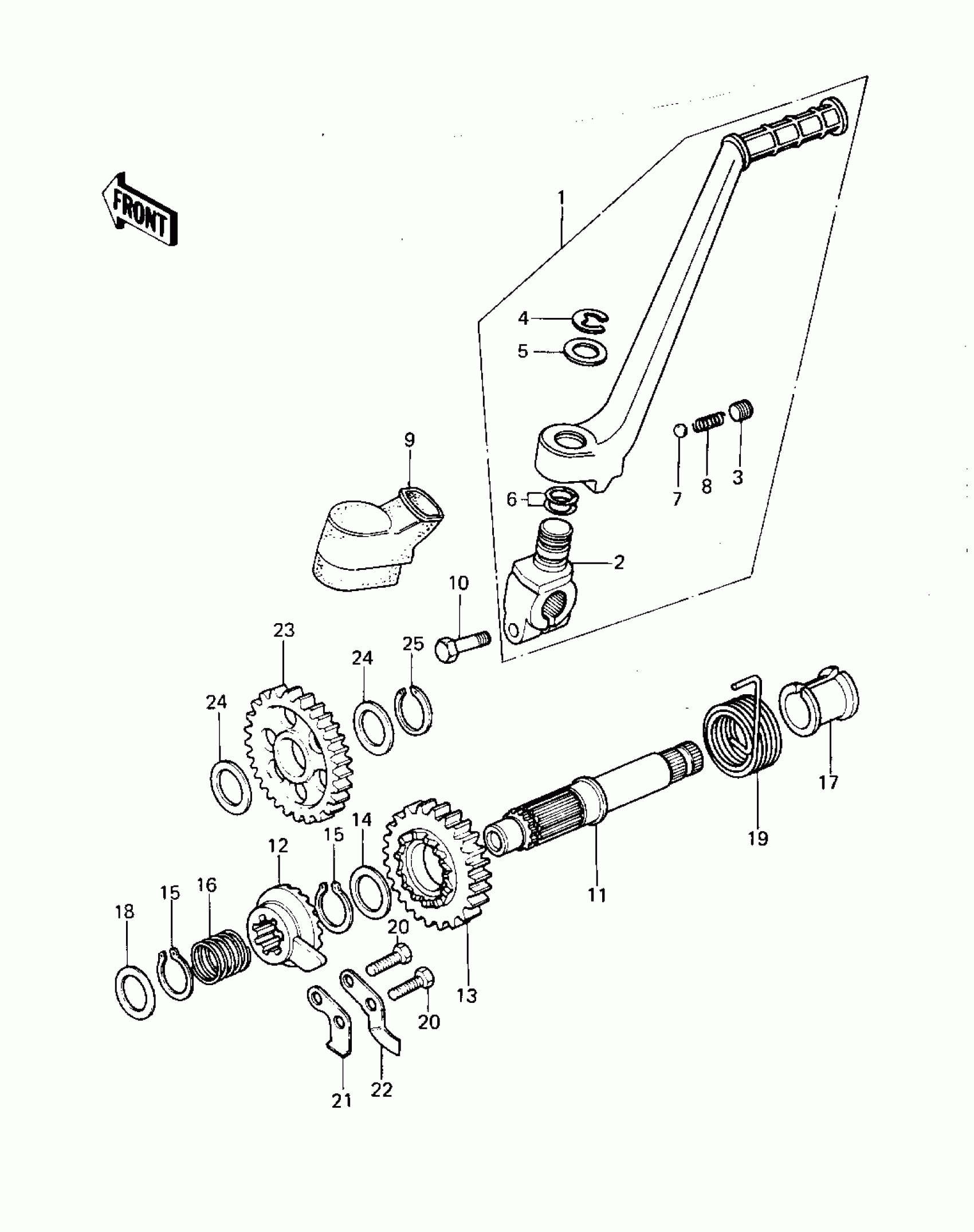

Kawasaki KDX420 KICKSTARTER MECHANISM Diagram
#
Description
Price
1
PEDAL ASSY,KICK
13064-5003
Unavailable
2
BOSS,KICKSTARTER
13061-1007
Unavailable
3
SCREW-SET-SOCKET,8X8
290Q0808
$4.78
4
CIR CLIP
482K0100
$0.70
5
WASHER,15.2X20X1
92022-1019
$5.23
6
O RING,15MM
670B2015
$1.42
7
BALL-STEEL,1/4
600A0800
$0.62
8
SPRING,KICK PEDAL
92081-020
$4.26
9
BOOT,KICKSTARTER
49006-1006
Unavailable
10
BOLT,8X28
92001-1042
$6.69
11
SHAFT,KICK
13066-1009
Unavailable
12
RATCHET
13078-007
$75.68
13
GEAR,KICKSTARTER,25T
59051-1016
$107.03
14
WASHER,25.3X30X0.5
92022-159
$8.58
15
RING-SNAP,24MM
92033-026
$8.79
16
SPRING
92081-097
$11.80
17
GUIDE,KICKSTARTER
13070-007
Unavailable
18
WASHER,20.5X25.5X0.5
92022-252
$6.22
19
SPRING,KICKSTARTER
92082-003
$28.46
20
BOLT-UPSET
112G0618
$1.01
21
STOPPER,KICKSTARTER
13072-014
$11.60
22
GUIDE-KICK
13206-1003
$9.93
23
GEAR,IDLE,27T
59051-1017
$107.03
24
WASHER,20.5X25.5X0.5
92022-252
$6.22
25
RING-SNAP,18MM
92033-029
$9.82
