Description

Price

1

LEVER ASSY,GEAR CHANG

13161-1012

Unavailable

2

PLATE,CHANGE DRUM

13169-1267

Unavailable

3

LEVER ASSY,GEAR CHANG

13236-007

Unavailable

4

LEVER, GEAR SET

13236-1013

Unavailable

5

SCREW-PAN-CROS,6X14

220B0614

$1.48

6

BOLT-UPSET,6X20

112G0620

$2.12

7

PEDAL ASSY,GEAR CHANG

13242-1025

Unavailable

8

BOLT,RETURN SPRING

92001-1401

$4.69

9

SCREW,6MM

92011-023

Unavailable

10

WASHER,PLAIN

92022-1053

$3.55

11

SPRING,CHANGE LEVER

92081-076

$5.46

12

SPRING-COIL

92081-077

Unavailable

13

SPRING

92081-119

Unavailable

14

SPRING,CHG PEDL RTRN

92083-028

Unavailable

15

FORK-SHIFT,LOW

13140-1023

$97.83

16

FORK-SHIFT,2ND&3RD

13140-1024

$97.83

17

FORK-SHIFT,4TH&TOP

13140-1025

Unavailable

18

ROD-SHIFT,L=93.7

49047-1003

Unavailable

19

DRUM ASSY,CHANGE

13239-1023

Unavailable

20

SCREW-PAN-CROS,6X14

220B0614

$1.48

21

PIN,CHANGE DRUM

92043-1060

$3.52

22

HOLDER,CHANGE DRUM PIN

13142-014

$20.79

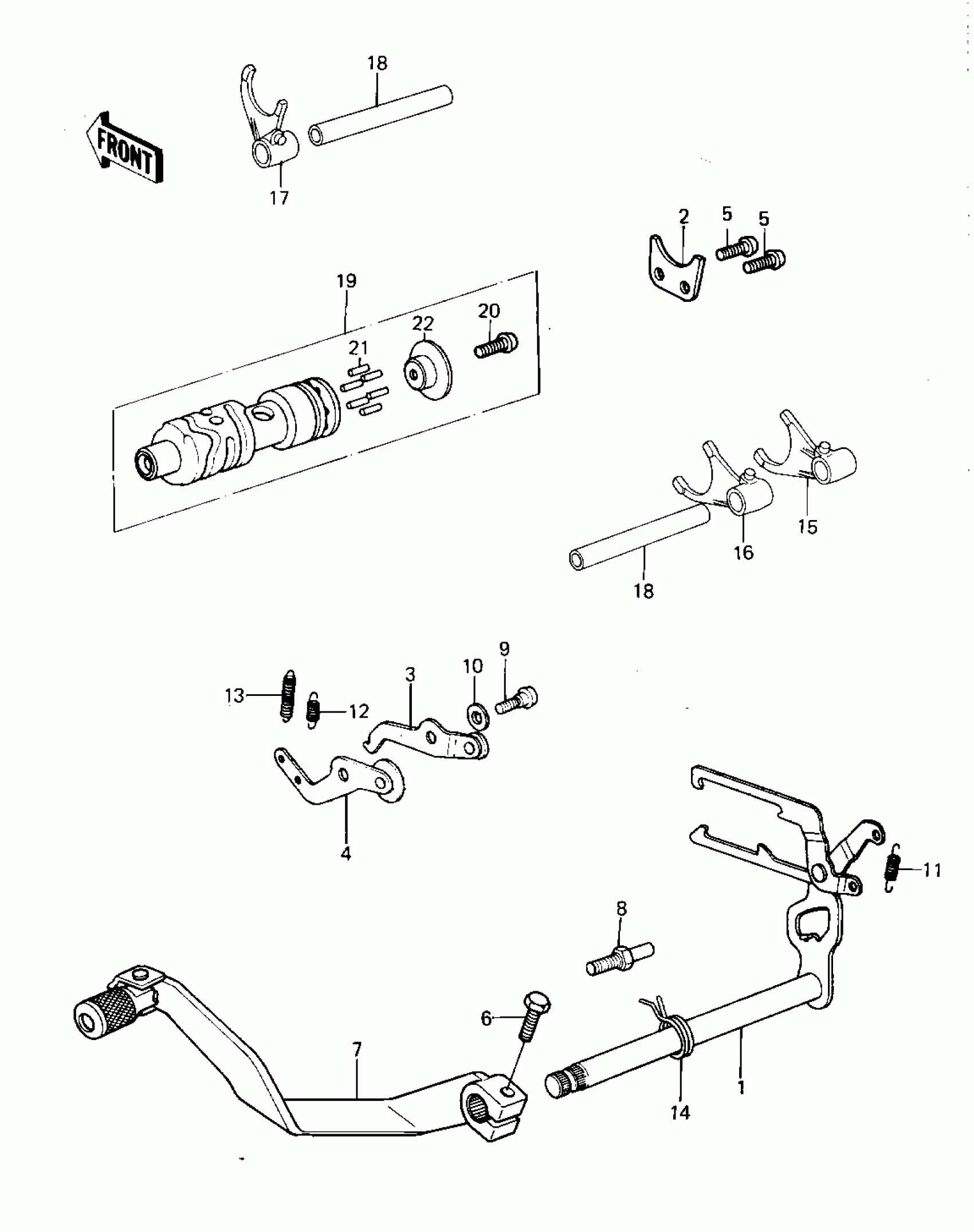

Kawasaki KDX420 GEAR CHANGE MECHANISM Diagram

LEVER ASSY,GEAR CHANG

PLATE,CHANGE DRUM

LEVER ASSY,GEAR CHANG

LEVER, GEAR SET

SCREW-PAN-CROS,6X14

BOLT-UPSET,6X20

PEDAL ASSY,GEAR CHANG

BOLT,RETURN SPRING

SCREW,6MM

WASHER,PLAIN

SPRING,CHANGE LEVER

SPRING-COIL

SPRING

SPRING,CHG PEDL RTRN

FORK-SHIFT,LOW

FORK-SHIFT,2ND&3RD

FORK-SHIFT,4TH&TOP

ROD-SHIFT,L=93.7

DRUM ASSY,CHANGE

SCREW-PAN-CROS,6X14

PIN,CHANGE DRUM

HOLDER,CHANGE DRUM PIN
