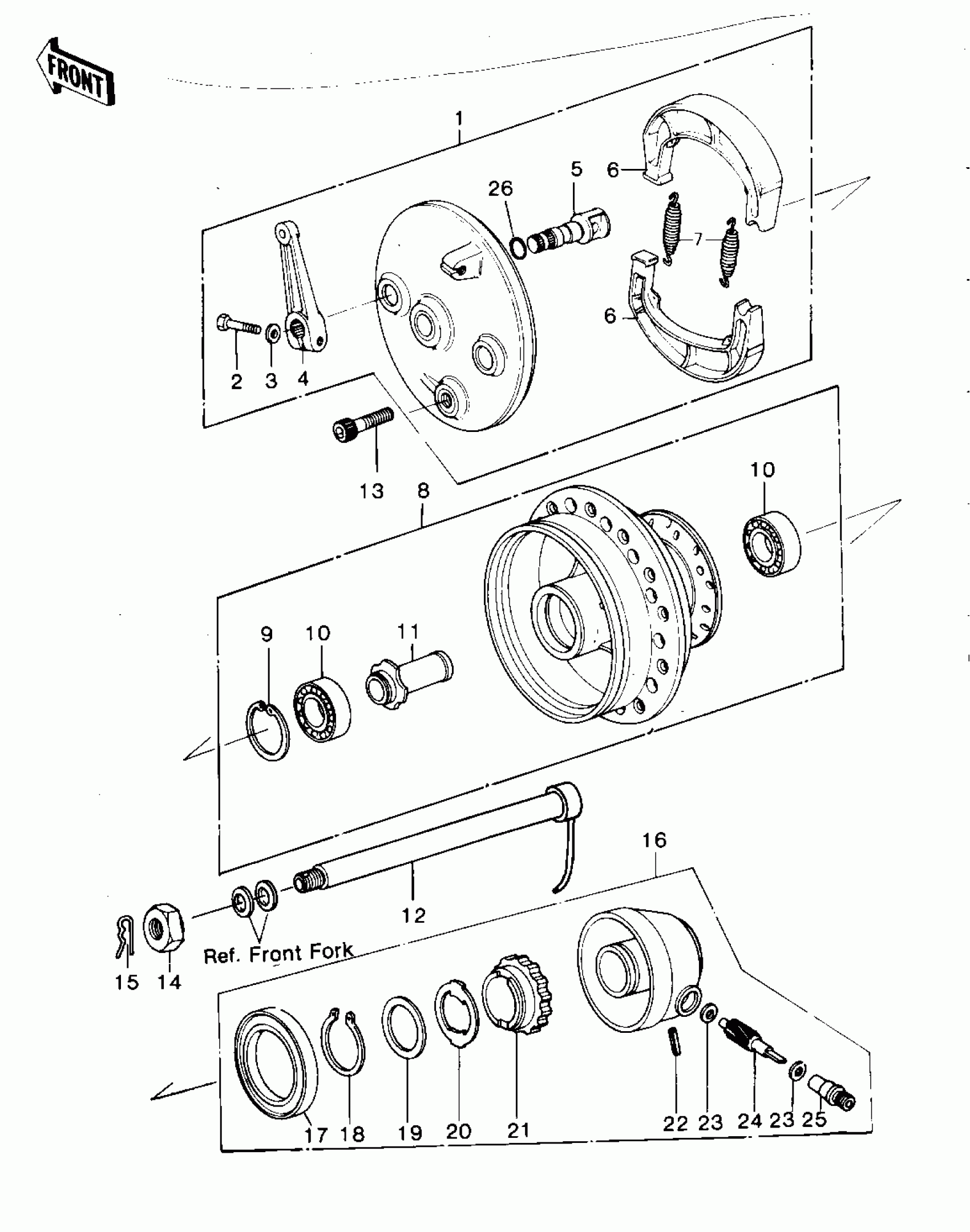

Kawasaki KDX420 FRONT HUB/BRAKE Diagram
#
Description
Price
1
PANEL-ASY,FR BRK
41035-1072
$307.50
2
BOLT-UPSET
112G0622
$3.48
3
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
4
LEVER,FRONT BRAKE CAM
41053-1003
$61.71
5
CAM SHAFT,BRAKE
41050-1002
Unavailable
6
SHOE-BRAKE
41048-1068
$27.31
7
SPRING,BRAKE SHOE
42020-004
$8.51
8
DRUM-ASSY,FR BRK
41034-4001
$260.11
9
RING-SNAP,42MM
92033-1041
$6.16
10
BEARING,FRONT DRUM
92045-033
Unavailable
11
COLLAR,FRONT BRAKE
92027-1034
$28.77
12
AXLE,FRONT
41068-4001
$52.53
13
BOLT,SOCKET,10X40
92001-4002
$4.87
14
NUT,CASTLE,14MM
42045-020
$9.91
15
PIN,COTTER
550D3230
$2.33
16
CASE-ASSY-METER GEAR
41078-011
Unavailable
17
OIL SEAL,#50659
654A506509
$17.29
18
CIRCLIP-TYPE-C,24MM
480J2400
$6.32
19
WASHER,24.5X32X0.8
41065-005
Unavailable
20
RECEIVER-SPEEDOMETER
41064-015
Unavailable
21
GEAR-METER SCREW
41059-027
Unavailable
22
PIN,SPRING
41082-001
$3.92
23
WASHER,5.1X9X0.4
41063-001
$4.69
24
GEAR-METER SCREW,8T
41060-015
Unavailable
25
BUSHING,SPEEDOMETER CABLE
41062-005
$19.48
26
O RING,15MM
670B2015
$1.42
