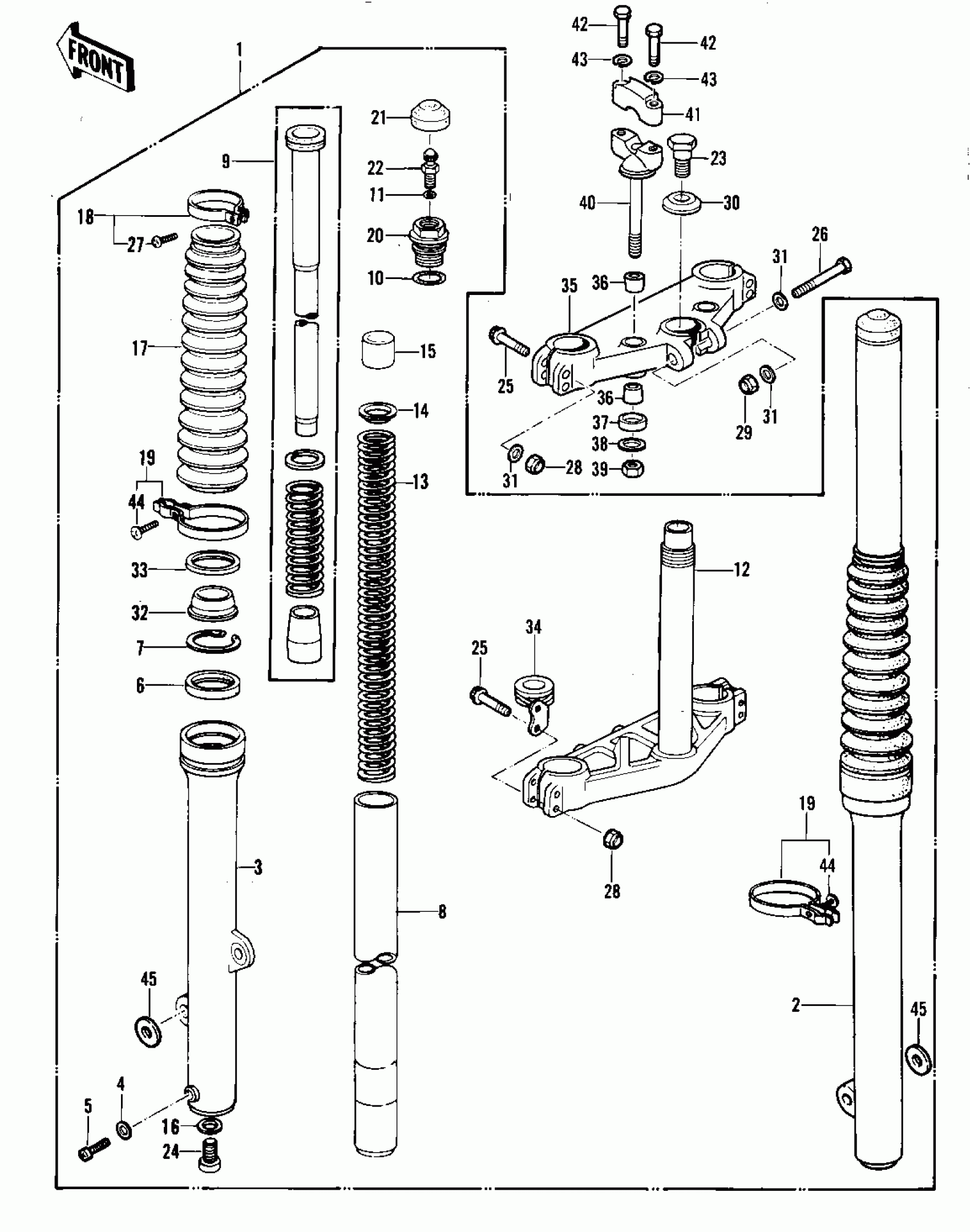

Kawasaki KDX420 FRONT FORK Diagram
#
1
FORK-FRONT
44001-4004
$980.59
2
TUBE,RH,FORK OUTER
44006-4001
$167.79
3
TUBE,LH,FORK OUTER
44005-4001
$158.87
4
GASKET,FORK DRAIN PLUG
44045-002
$5.18
5
SCREW PAN HEAD 4X8
220B0408
$0.67
6
OIL SEAL,FORK OUT TUB
92049-1042
Unavailable
7
SNAP RING,FORK OUT TU
92033-1035
Unavailable
8
TUBE,FORK INNER
44013-4001
$248.94
9
CYLINDER-FORK
44022-4001
$82.25
10
RING-O,FORK TOP CAP
92055-1050
$6.27
11
"0" RING,AIR VALVE
92055-1018
Unavailable
12
STEM,STEERING
44037-1065
$458.19
13
SPRING,FORK INNER
44026-4001
$48.79
14
GUIDE-FORK SPRING
44028-1003
$11.28
15
SPACER,FORK SPRING
92026-4002
$5.88
16
GASKET,FORK CYLINDER BOLT
11009-1127
$5.18
17
BOOT,FORK
49006-1174
Unavailable
18
BAND,BOOT
92072-1046
$10.04
19
CLAMP,BOOT,L.H
92072-1026
Unavailable
20
CAP,FORK TOP
44029-1008
Unavailable
21
CAP,RUBBER,FORK TOP
44029-1009
Unavailable
22
VALVE ASSY,AIR
16126-1003
Unavailable
23
BOLT,FORK TOP
44041-065
Unavailable
24
BOLT,FORK CYLINDER
92001-1186
$3.40
25
BOLT-FLANGED,8X55
130G0855
Unavailable
26
BOLT,HEX HEAD,8X57
92001-1141
Unavailable
27
SCREW-PAN-CROS
220B0420
$2.49
28
NUT,8M/M
44007-1002
Unavailable
29
NUT,LOCK,8MM
92015-1124
$5.42
30
WASHER
44043-052
$8.01
31
WASHER PLAIN 8MM
410B0800
$0.93
32
DUST SHIELD,FORK OUTR
92093-1035
$14.45
33
CASE,DUST SHIELD
32099-1013
Unavailable
34
CLAMP,CABLE
92072-1027
Unavailable
35
HEAD,STEERING STEM
44039-4004
$91.95
36
DAMPER RUBBER,HANDLE
92075-275
Unavailable
37
WASHER
92022-4012
$4.87
38
WASHER SPRING 10MM
461F1000
$0.67
39
NUT,LOCK,10MM
92019-021
$6.11
40
HOLDER-HANDLE,LWR
46012-010
$30.76
41
HOLDER-HANDLE,UPP
46012-008
$37.74
42
BOLT 8X38
92001-1405
$16.50
43
WASHER SPRING 8MM
461F0800
$0.40
44
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
45
WASHER,FORK
92022-4006
Unavailable
