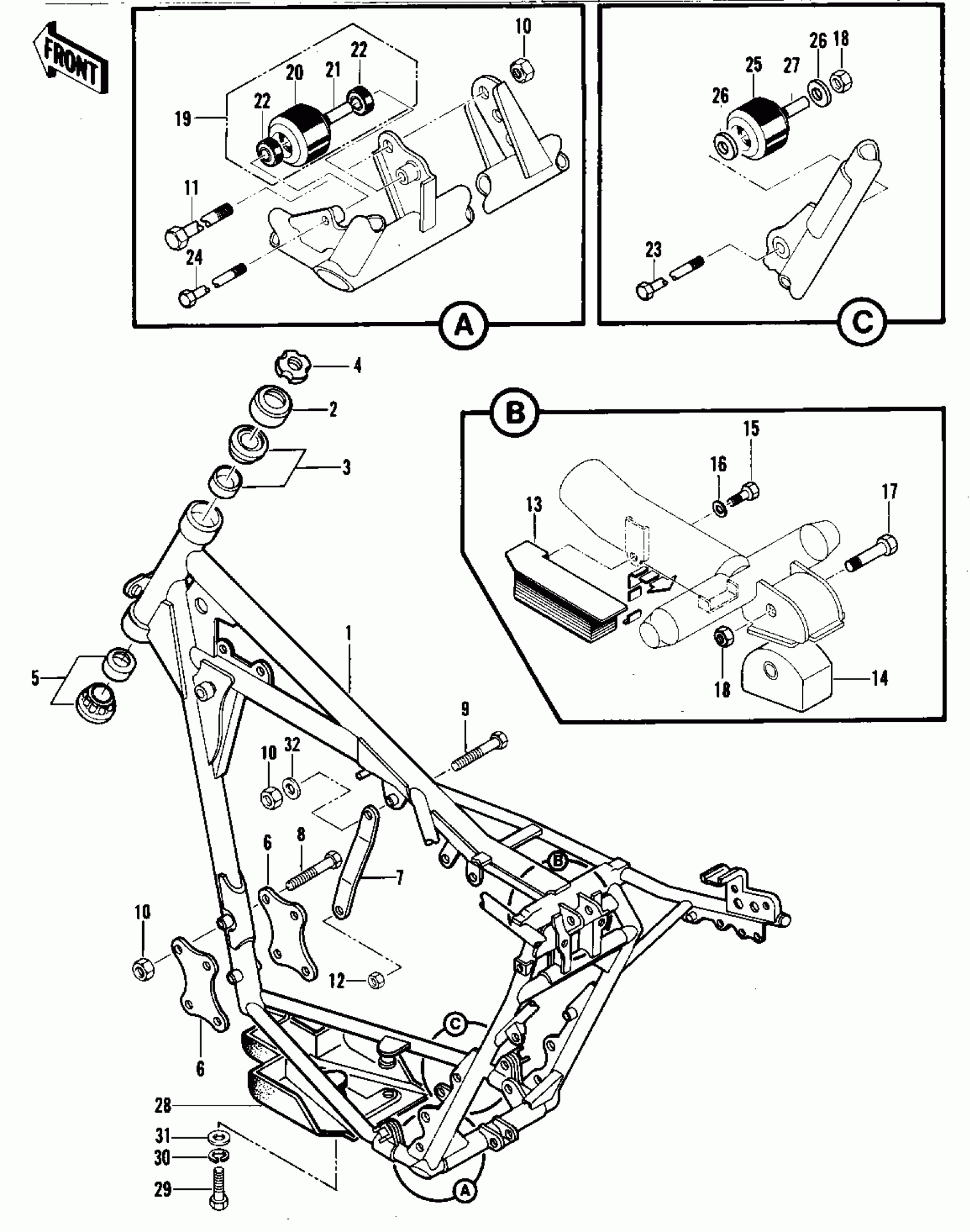

Kawasaki KDX420 FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

FRAME

32002-4006

$703.62

2

CAP,STEERING STEM

46098-015

Unavailable

3

RACE,ROLLER,32005JR RS

92047-017

$38.84

4

NUT,25MM,T=12

92015-1546

$19.66

5

BEARING-ROLLER,LWR,32006JR RS

92116-1008

$76.75

6

BRACKET,ENGINE

32029-1116

$13.47

7

BRACKET,ENGINE

32029-4010

Unavailable

8

BOLT HEX HEAD,10X66.5

92001-1033

Unavailable

9

BOLT

92001-1412

Unavailable

10

NUT,LOCK,10MM

92019-021

$4.59

11

BOLT,HEX HEAD,10X127

92001-4001

Unavailable

12

NUT,FLANGED,10MM

92015-1415

$3.57

13

DAMPER,REAR SHOCK

92075-1249

Unavailable

14

DAMPER

92075-4026

$51.58

15

BOLT SMALL

114G0812

Unavailable

16

WASHER SPRING 8MM

461F0800

Unavailable

17

BOLT,8X40

115G0840

Unavailable

18

NUT,LOCK,8MM

92015-1124

$4.10

19

ROLLER,CHAIN ADJUST

92122-4004

$38.01

20

ROLLER

92122-1014

Unavailable

21

SPACER,CHN GDE ROLLER

92027-4007

$7.95

22

BEARING-BALL,608LLU/2A

92045-1009

$35.89

23

BOLT-SMALL-UPSET

115G0855

$5.34

24

BOLT HEX HEAD 8X70

114B0870

Unavailable

25

ROLLER

92122-4002

$2.51

26

WASHER,8.5X20X1.6

92022-1561

$3.29

27

COLLAR

92027-4012

$5.25

28

SKID PLATE

55020-4003

Unavailable

29

BOLT-UPSET,6X16

112G0616

Unavailable

30

WASHER SPRING 6MM

461F0600

Unavailable

31

WASHER-PLAIN,7MM

92022-240

Unavailable

32

WASHER-PLAIN,10MM

411B1000

Unavailable
