1981 Kawasaki KDX420 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1981 Kawasaki KDX420, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

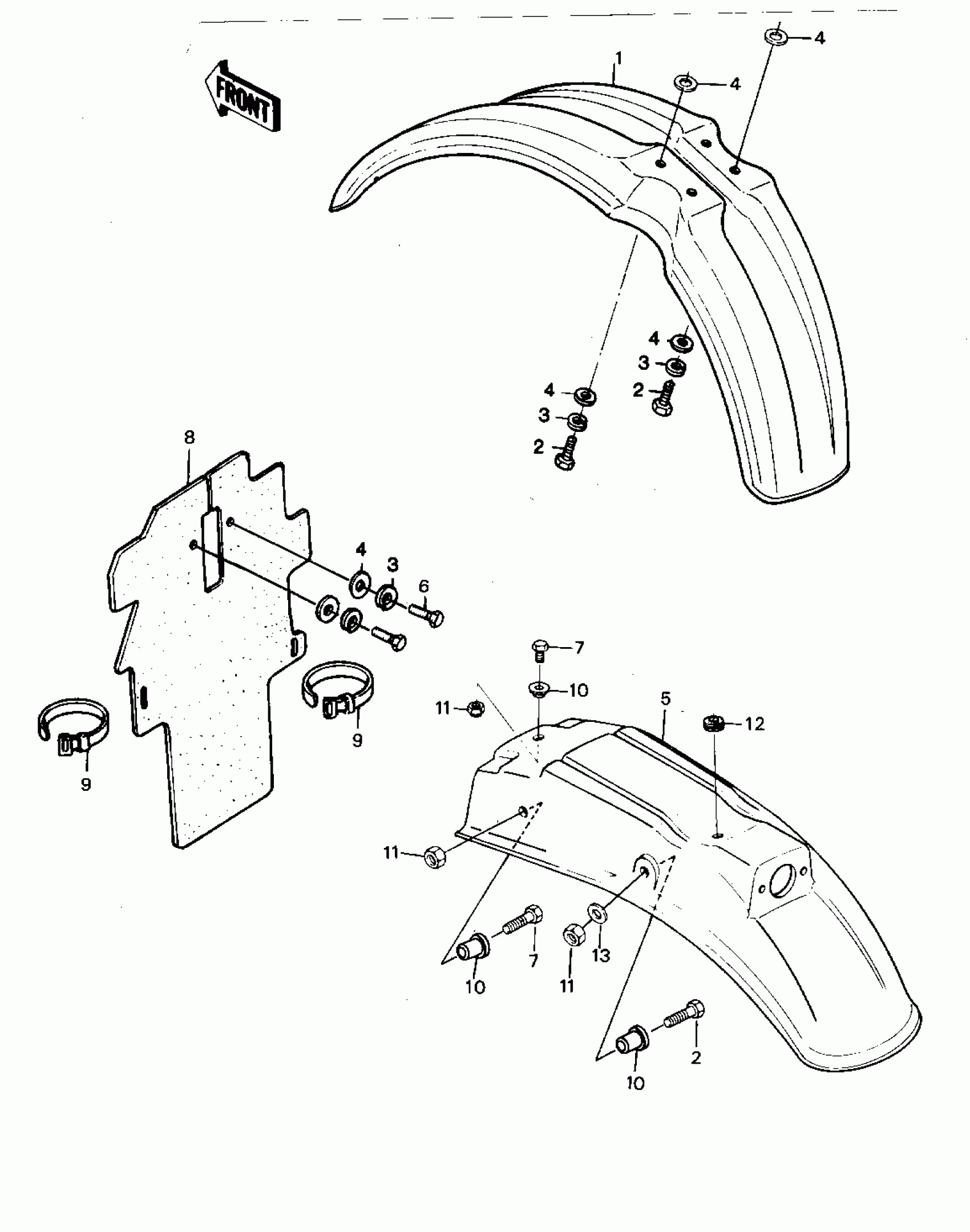

1981 Kawasaki KDX420 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER-FRONT,L.GREEN

35004-1233-6W

1
Out of stock

2

BOLT-UPSET,6X16

112G0616

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

WASHER,6.5X20X1.6

92022-125

1
Out of stock

5

FENDER-RR,L.GREEN

35022-1068-6W

1
Out of stock

6

BOLT-UPSET,6X12

112G0612

1
Out of stock

7

BOLT-UPSET 6X14

112B0614

1
Out of stock

8

FLAP

35019-1013

1
Out of stock

9

BAND

92072-3505

1
Out of stock

10

COLLAR,L=5.1

92027-1260

1
Out of stock

11

NUT,LOCK,6MM

92019-008

1
Out of stock

12

GROMMET

92071-024

1
Out of stock

13

WASHER PLAIN 6MM

411B0600

1
Out of stock
