Description

Price

1

GASKET,CLUTCH COVER

11009-1131

Unavailable

2

COVER,CLUTCH,F.BLACK

14032-1021

Unavailable

3

CAP-OIL FILLER

16115-018

$10.56

4

SCREW PAN HEAD 6X30

220B0630

$3.41

5

GAUGE,OIL LEVEL

52015-004

$48.05

6

PIN,DOWEL,10X14

92043-1037

$0.74

7

SEAL-OIL,SB20285

92049-012

$10.89

8

GASKET,MAGNETO COVER

11009-1132

Unavailable

9

COVER,MAGNETO,F.BLACK

14031-1035

Unavailable

10

SCREW PAN HEAD 6X30

220B0630

$3.41

11

COVER,FRONT CHAIN

14026-1012-21

Unavailable

12

SCREW PAN HEAD 6X35

220B0635

$1.63

13

SCREW PAN HEAD 6X40

220B0640

Unavailable

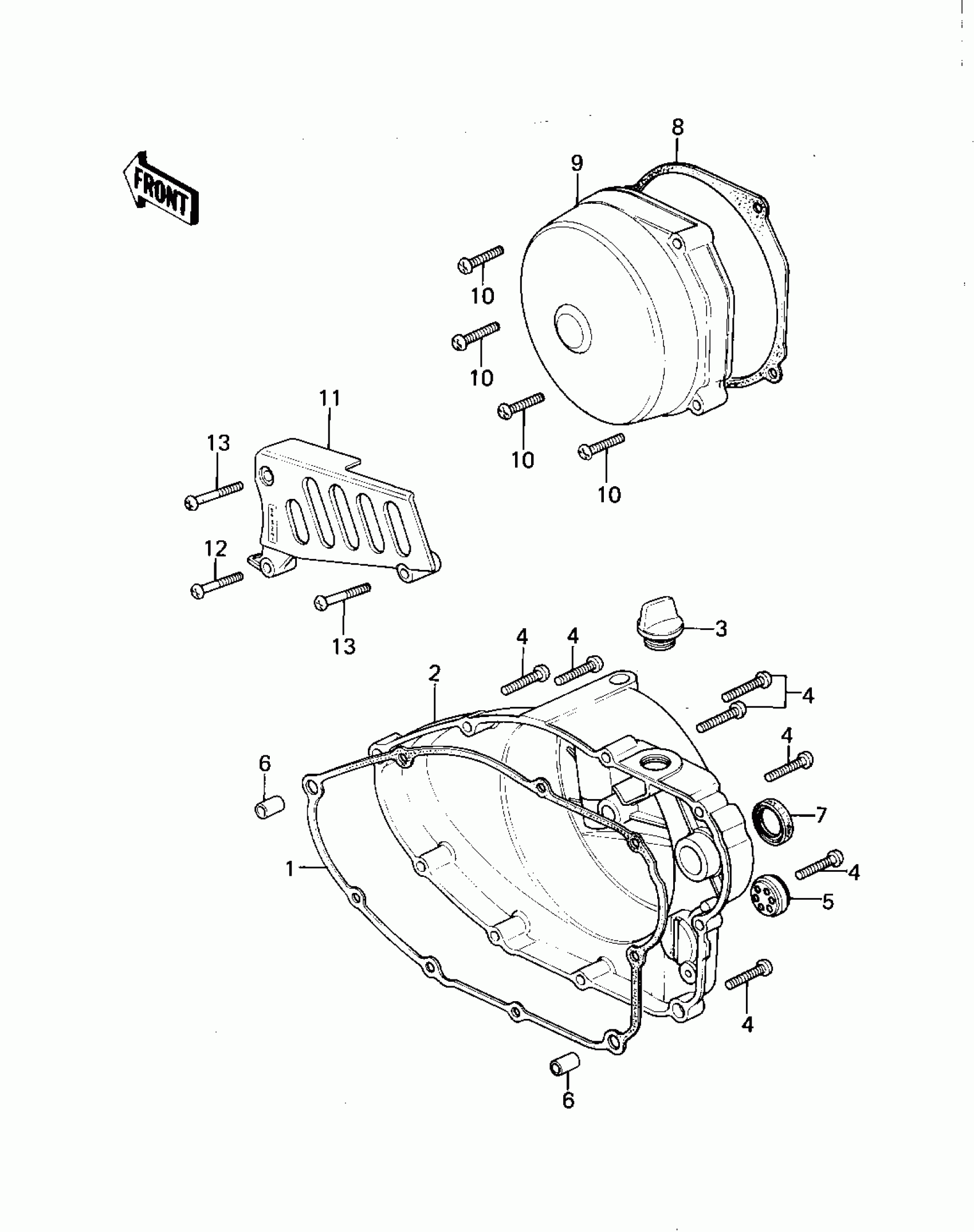

Kawasaki KDX420 ENGINE COVERS Diagram

GASKET,CLUTCH COVER

COVER,CLUTCH,F.BLACK

CAP-OIL FILLER

SCREW PAN HEAD 6X30

GAUGE,OIL LEVEL

PIN,DOWEL,10X14

SEAL-OIL,SB20285

GASKET,MAGNETO COVER

COVER,MAGNETO,F.BLACK

SCREW PAN HEAD 6X30

COVER,FRONT CHAIN

SCREW PAN HEAD 6X35

SCREW PAN HEAD 6X40
