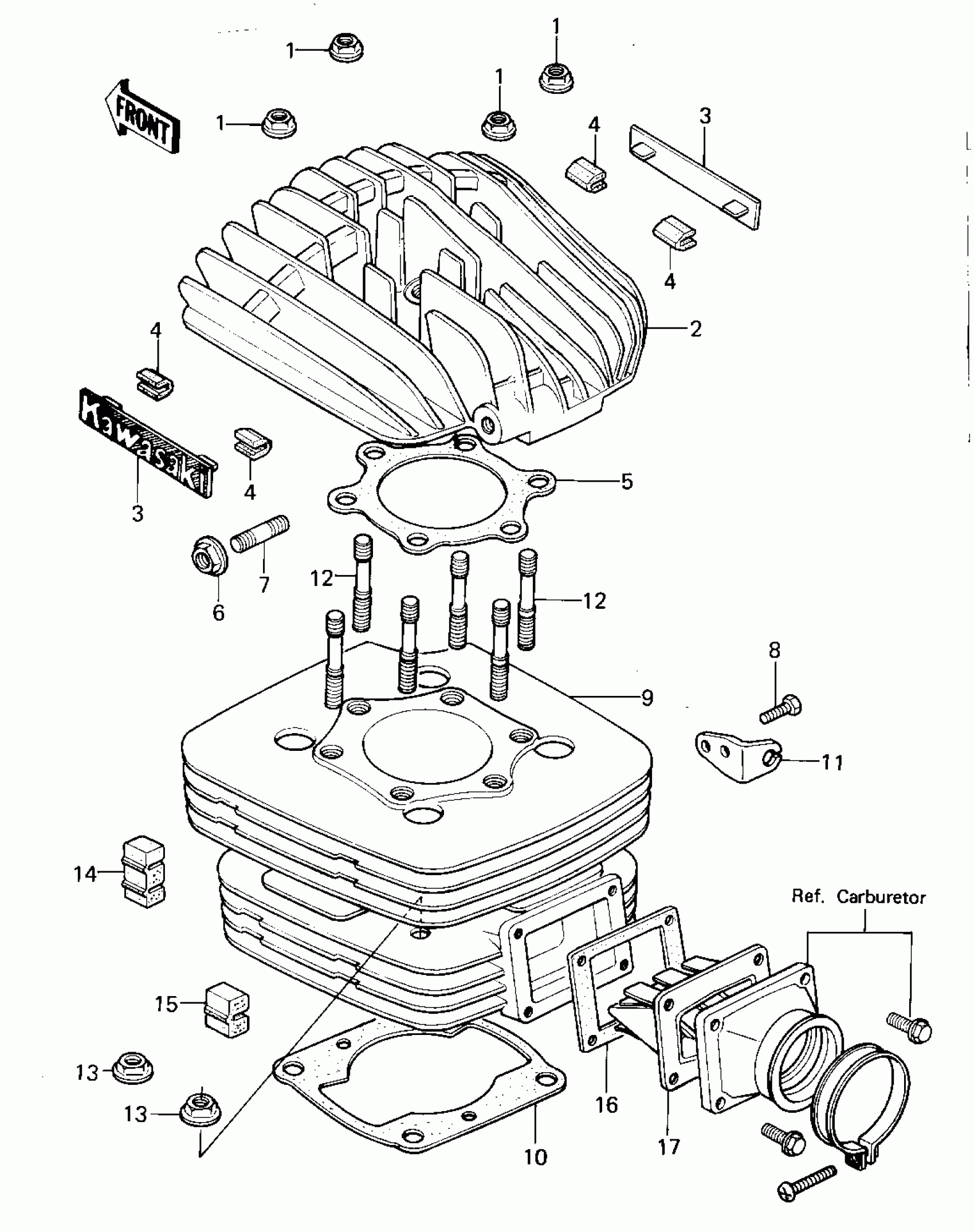

Kawasaki KDX420 CYLINDER HEAD/CYLINDER/REED VALVE Diagram

#

Description
Price

1

NUT,FLANGED,8MM

92015-1014

$0.65

2

HEAD,CYLINDER,F.BLACK

11001-1030

Unavailable

3

MARK,CYLINDER HEAD

56018-1101

Unavailable

4

DAMPER,CYLINDER HEAD

92075-1166

Unavailable

5

GASKET,HEAD,CYLINDER

11004-1015

Unavailable

6

NUT,FLANGED,10MM

92015-1415

$4.69

7

STUD,10X18

175G1018

$3.61

8

BOLT-UPSET

112G0618

$1.01

9

CYLINDER,ELECTRO-FUSE

11005-1068

Unavailable

10

GASKET,CYLINDER BASE

11009-1130

Unavailable

11

HOLDER

13091-1119

Unavailable

12

STUD,CYLINDER

92004-1022

Unavailable

13

NUT,FLANGED,10MM

92015-1415

$4.69

14

DAMPER,CYLINDER

92075-1160

Unavailable

15

DAMPER,CYLINDER

92075-1161

Unavailable

16

GASKET,REED VALVE

11009-1018

Unavailable

17

VALVE ASSY,REED

12021-1007

Unavailable
