Description

Price

1

PISTON-ENGINE

13001-1075

Unavailable

2

PIN-PISTON

13002-031

Unavailable

3

RING SET,PISTON

13008-5030

Unavailable

4

RING-SNAP,PISTON PIN

92036-008

$0.49

5

CRANKSHAFT ASSY

13031-1023

Unavailable

6

BEARING N,KT263322EGS

13034-1012

Unavailable

7

PIN,CRANK,12X26X62

13035-1003

Unavailable

8

CRANKSHAFT,R.H.

13037-1035

Unavailable

9

CRANKSHAFT,L.H.

13037-1037

Unavailable

10

WASHER,CONROD SIDE

92026-093

$26.41

11

BEARING-SMALL END,KTV192425

13033-1055

$30.91

12

GEAR,PRIMARY,26T

13097-1019

Unavailable

13

WASHER,LOCK,18M/M

464H1800

$3.34

14

WOODRUFF KEY

510A5100

$2.70

15

NUT,18MM

92015-019

$7.22

16

WASHER LOCK 18MM

92024-015

Unavailable

17

RING-O,30MM

92055-1047

$8.46

18

CONNECTING ROD ASSY

13044-5011

Unavailable

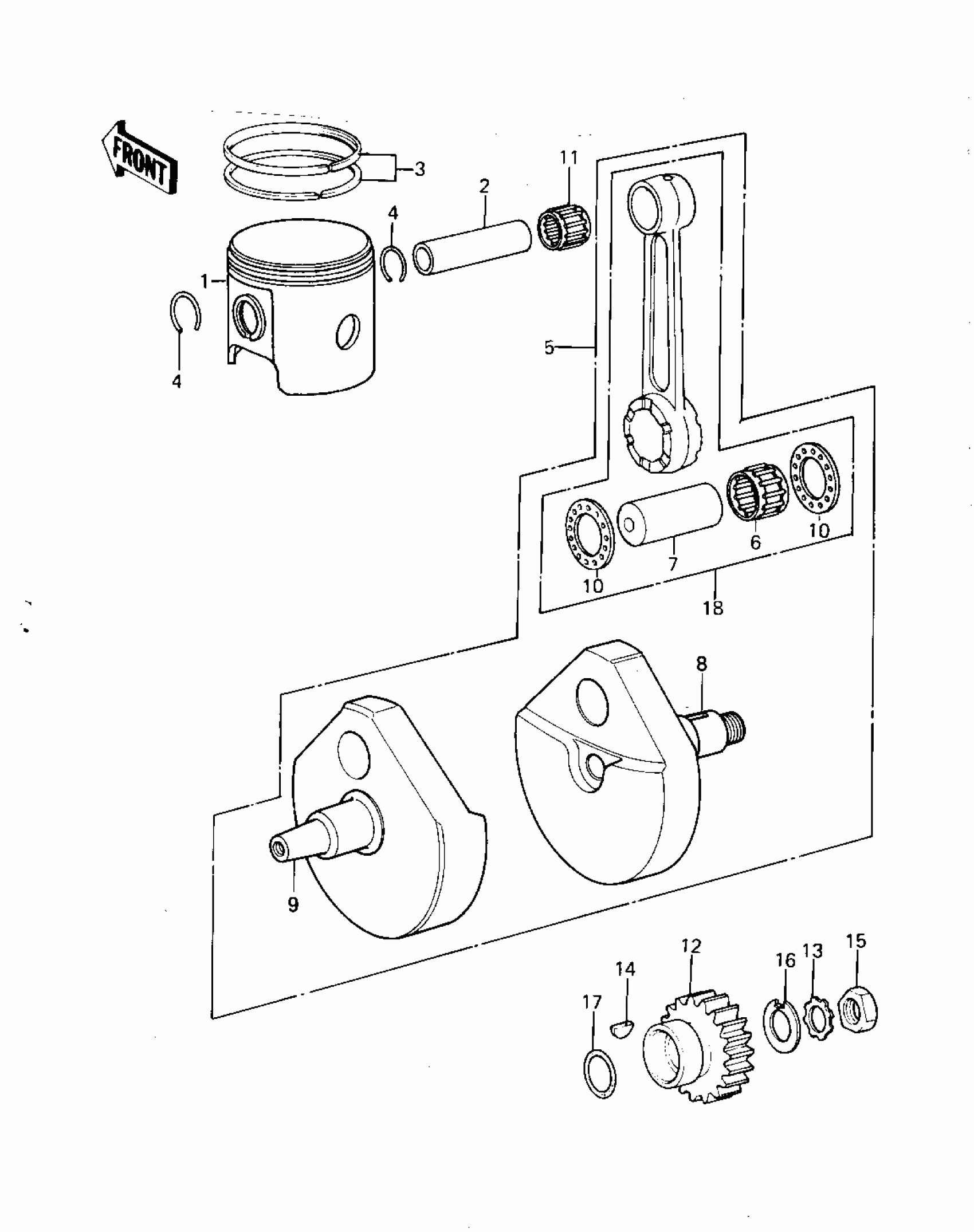

Kawasaki KDX420 CRANKSHAFT/PISTON Diagram

PISTON-ENGINE

PIN-PISTON

RING SET,PISTON

RING-SNAP,PISTON PIN

CRANKSHAFT ASSY

BEARING N,KT263322EGS

PIN,CRANK,12X26X62

CRANKSHAFT,R.H.

CRANKSHAFT,L.H.

WASHER,CONROD SIDE

BEARING-SMALL END,KTV192425

GEAR,PRIMARY,26T

WASHER,LOCK,18M/M

WOODRUFF KEY

NUT,18MM

WASHER LOCK 18MM

RING-O,30MM

CONNECTING ROD ASSY
