Description

Price

1

CLUTCH-ASSY

13081-1027

Unavailable

2

BOLT-UPSET,6X20

112G0620

$2.12

3

WHEEL,CLUTCH

13086-016

Unavailable

4

HUB,CLUTCH

13087-1012

Unavailable

5

PLATE,CLUTCH FRICTION

13088-041

Unavailable

6

PLATE,CLUTCH STEEL

13089-025

Unavailable

7

PLATE,CLUTCH SPRING

13091-016

Unavailable

8

SPRING,CLUTCH

92081-1151

Unavailable

9

HOUSING,CLUTCH

13095-1017

Unavailable

10

WASHER,CLUTCH THRUST

92022-282

Unavailable

11

BOLT-UPSET

112G0618

$1.01

12

SHAFT,CLUTCH RELEASE

13106-008

Unavailable

13

HOLDER,CLUTCH PUSHER

13091-1071

Unavailable

14

ROD,CLUTCH PUSH

13116-025

Unavailable

15

LEVER,CLUTCH RELEASE

13168-1010

Unavailable

16

O RING,10MM

670B2010

$1.50

17

BOLT,CLUTCH RELEASE

92003-130

$6.01

18

BEARING,BALL

92045-1005

$29.36

19

GASKET,6X14X0.8

92065-092

$4.34

20

WASHER,LOCK,16MM

464H1600

$3.89

21

NUT,16M/M

92015-1016

$5.28

22

WASHER,16.8X32X1.6

92022-1277

Unavailable

23

BUSHING,CLUT,20X25X40

92028-1067

$33.89

24

BEARING,NEEDLE

92046-1003

$14.10

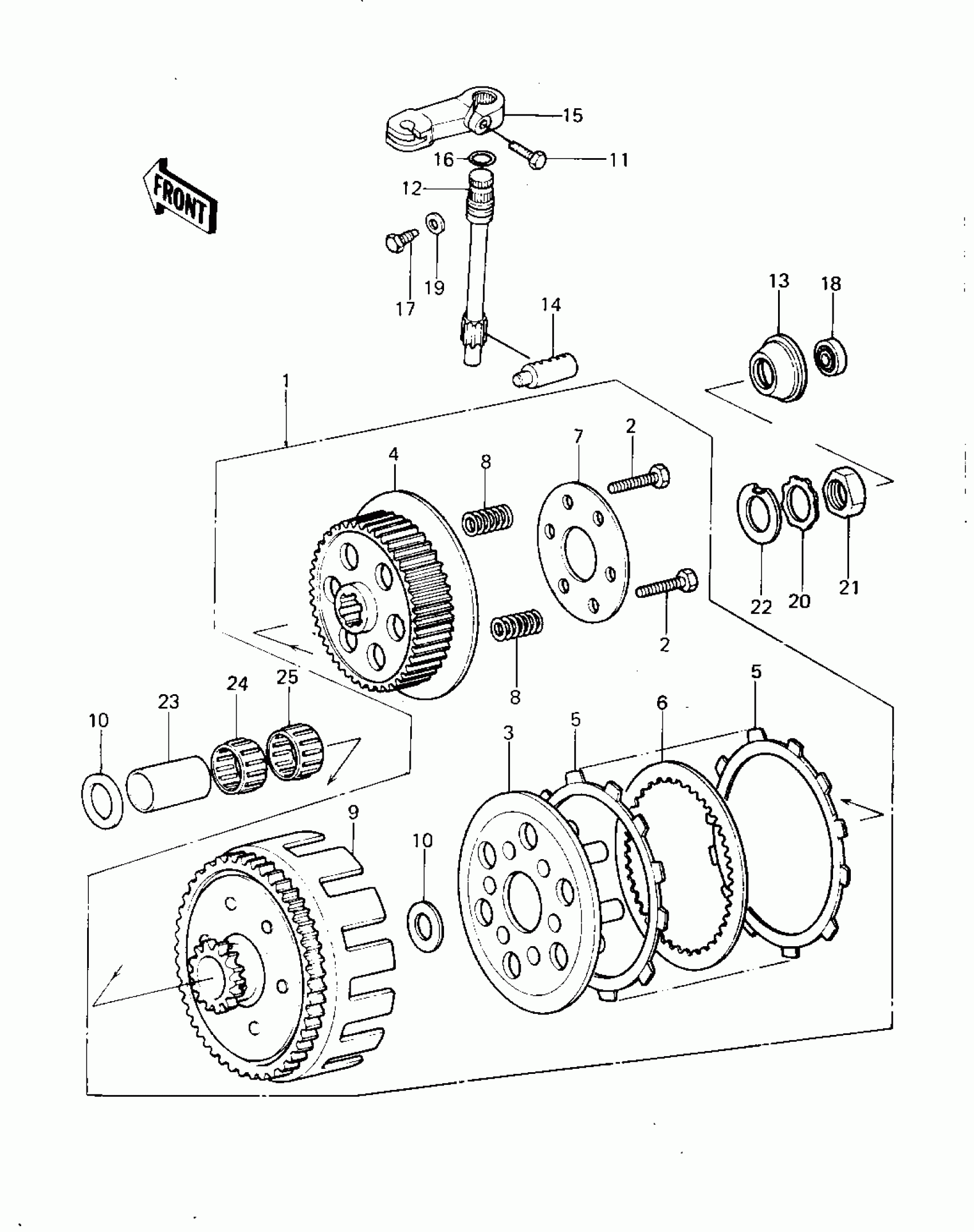

Kawasaki KDX420 CLUTCH Diagram

CLUTCH-ASSY

BOLT-UPSET,6X20

WHEEL,CLUTCH

HUB,CLUTCH

PLATE,CLUTCH FRICTION

PLATE,CLUTCH STEEL

PLATE,CLUTCH SPRING

SPRING,CLUTCH

HOUSING,CLUTCH

WASHER,CLUTCH THRUST

BOLT-UPSET

SHAFT,CLUTCH RELEASE

HOLDER,CLUTCH PUSHER

ROD,CLUTCH PUSH

LEVER,CLUTCH RELEASE

O RING,10MM

BOLT,CLUTCH RELEASE

BEARING,BALL

GASKET,6X14X0.8

WASHER,LOCK,16MM

NUT,16M/M

WASHER,16.8X32X1.6

BUSHING,CLUT,20X25X40

BEARING,NEEDLE
