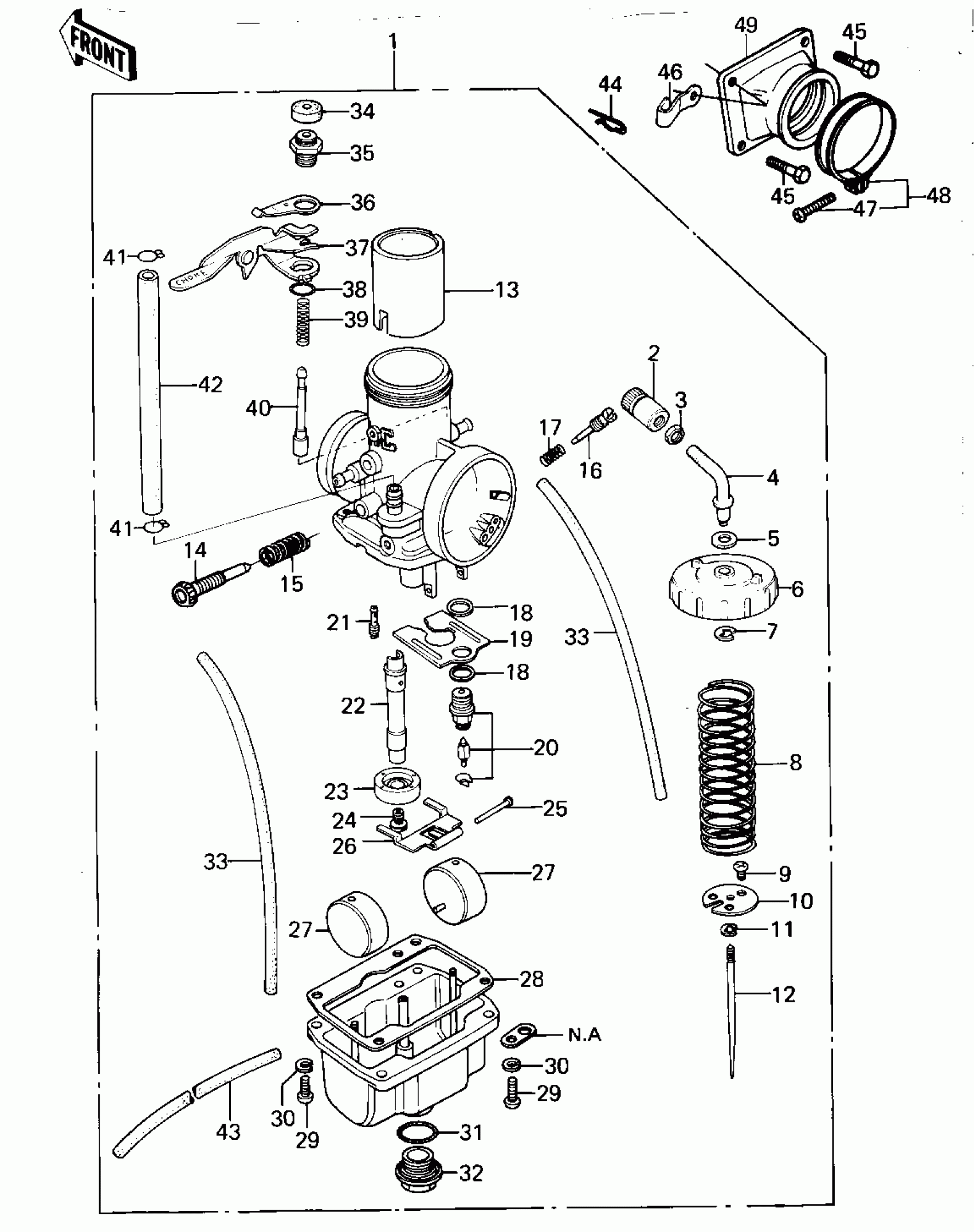

Kawasaki KDX420 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

16001-1389

$291.39

2

ADJUSTER-CABLE

16002-1006

Unavailable

3

NUT,CABLE ADJUST LOCK

16003-004

$7.34

4

GUIDE,CABLE

13070-1014

Unavailable

5

GASKET,CABLE GUIDE

11009-1191

Unavailable

6

TOP,MIXING CHAMBER

16004-1010

$36.19

7

CLAMP,CABLE GUIDE

16008-011

Unavailable

8

SPRING-THROTTLE VALV

16006-016

Unavailable

9

SCREW,4X5

92009-1037

$3.56

10

SEAT,THROTTLE VALVE

16007-1007

Unavailable

11

CLAMP,E-TYPE

16008-010

$9.21

12

JET NEEDLE,J8-6E02

16009-1082

$29.04

13

VALVE,THROTTLE CA,2.5

16025-1056

$89.72

14

SCREW,THROTTLE STOP

16021-1034

Unavailable

15

SPRING,THRTL STP SCRW

92081-1200

$9.28

16

SCREW

16014-006

$17.15

17

SPRING,PILOT AIR SCREW

16022-007

$8.13

18

GASKET,FLOAT VALVE

11009-1076

Unavailable

19

BAFFLE-CARB

16038-019

$18.24

20

FLOAT VALVE ASSY

16030-020

$82.44

21

PILOT JET,#50

92064-1005

$18.76

22

NEEDLE JET,R-4

16017-1083

$28.30

24

MAIN JET,#165R

92063-1020

Unavailable

25

PIN,FLOAT

16032-008

$6.57

26

ARM-FLOAT

16055-009

Unavailable

27

FLOAT

16031-029

$64.25

28

GASKET,FLOAT CHAMBER

16019-028

Unavailable

29

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

30

WASHER SPRING 5MM

461F0500

$0.69

31

GASKET,MAIN JET COVER

16038-009

Unavailable

32

COVER-MAIN JET

16049-006

Unavailable

33

HOSE,AIR VENT

92059-1185

$5.04

34

CAP,STARTER PLUNGER

16039-015

$6.88

35

CAP-STARTER PLUNGER

16012-019

$21.09

36

SPRING PLATE,STARTER

13169-1052

Unavailable

37

LEVER,STARTER PLUNGER

13168-1048

Unavailable

38

O RING,9MM

670B1509

$3.65

39

SPRING,STARTER PLUNGER

92081-1181

$4.11

40

PLUNGER ASSY,STARTER

16016-1008

$24.34

41

CLAMP,CARB CONECT HOS

92037-056

$6.60

42

HOSE,FUEL,6.5OX11.5O

92059-1026

Unavailable

43

TUBE,3.5X6.5X290,BRTH

92059-1017

Unavailable

44

RING-SNAP

92036-018

$3.89

45

BOLT-FLANGED,6X20

130G0620

$1.69

46

CLAMP,CARBURETOR HLDR

92037-116

$14.66

47

SCREW-PAN-CROS

220B0535

$3.70

48

CLAMP CABLE

92037-016

Unavailable

49

HOLDER,CARBURETOR

16065-1005

Unavailable
