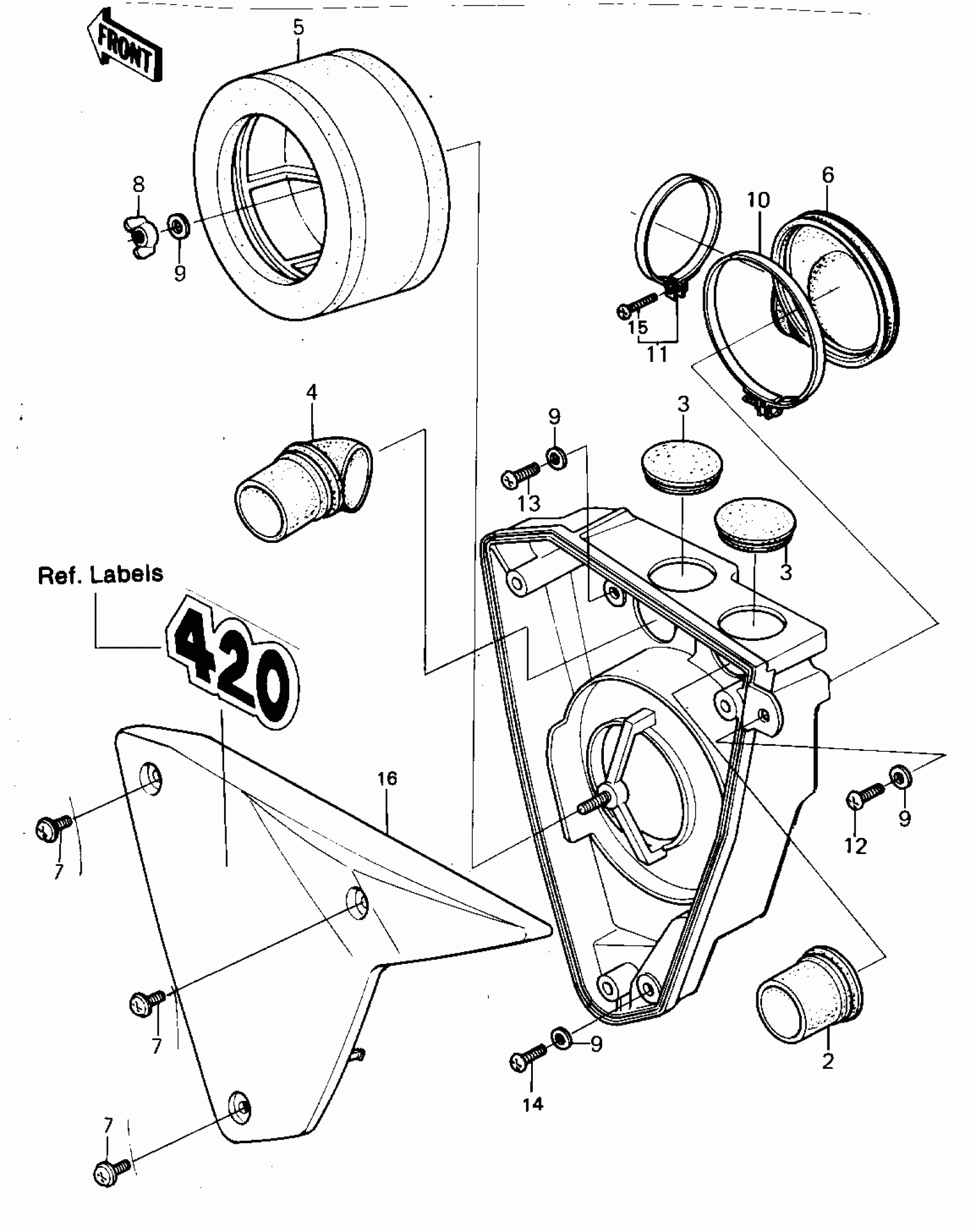

Kawasaki KDX420 AIR CLEANER Diagram

#

Description
Price

1

CASE AIR FILTER

11011-1082

Unavailable

2

CAP,AIR CLEANER

11012-1109

Unavailable

3

CAP,AIR CLEANER

11012-1111

Unavailable

4

CAP,AIR CLEANER

11012-1123

Unavailable

5

ELEMENT,AIR CLNR

11013-1036

Unavailable

6

DUCT,AIR CLEANER

14073-1038

$31.14

7

SCREW,6X14,WHITE

92009-1287

$2.55

8

NUT,AIR CLEANER CAP

92016-062

$4.78

9

WASHER,6.5X20X1.6

92022-125

$1.40

10

CLAMP,AIR CLANER DUC

92037-1186

Unavailable

11

CLAMP

92037-068

$11.91

12

SCREW PAN HEAD 6X12

220B0612

Unavailable

13

SCREW PAN HEAD 6X18

220B0618

$3.67

14

SCREW PAN HEAD 6X22

220B0622

$3.71

15

SCREW PAN HEAD 6X35

220B0635

$1.63

16

COVER,SIDE,LH,L.GREEN

36001-1087-6W

Unavailable
