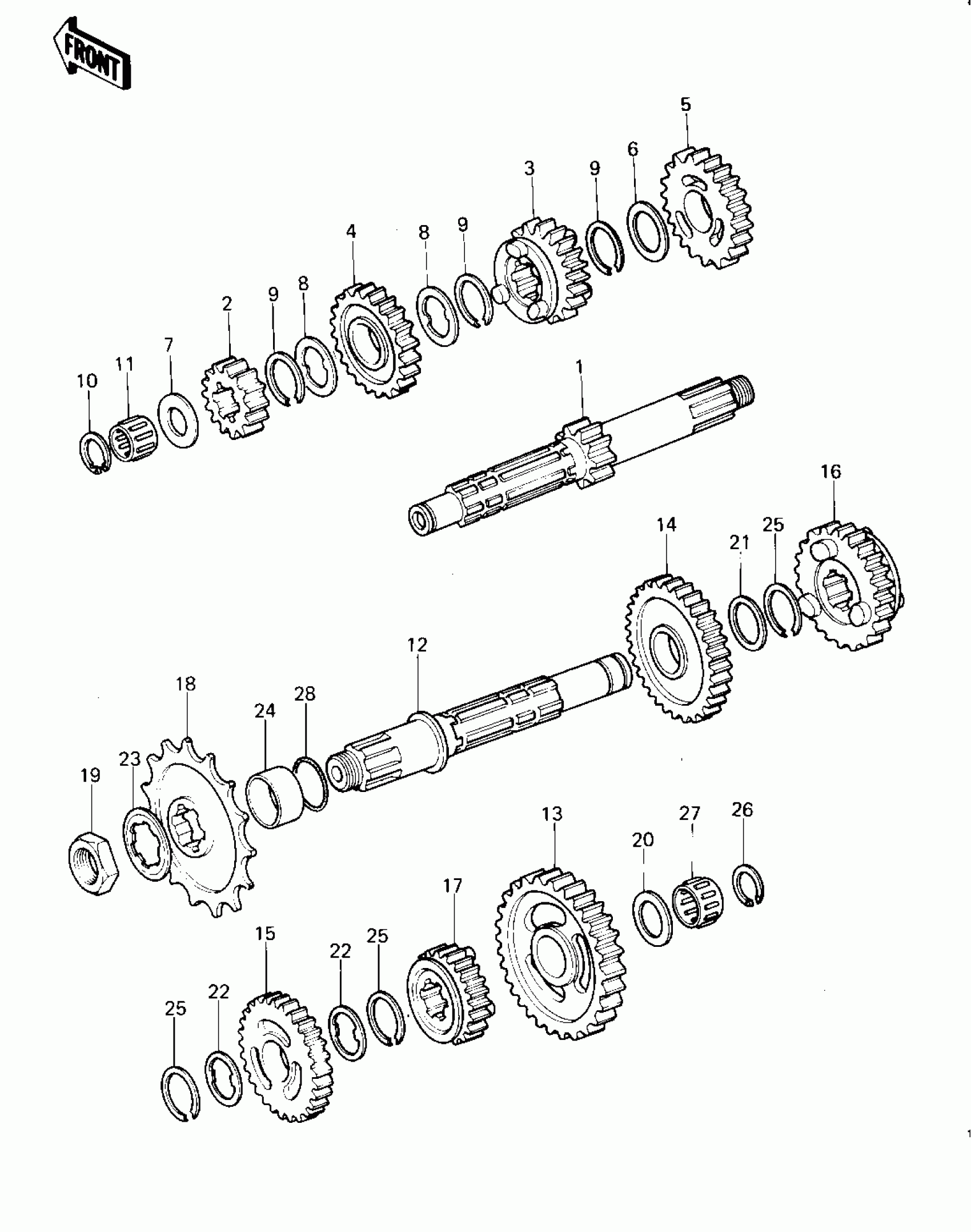

Kawasaki KDX400 TRANSMISSION Diagram
#
Description
Price
1
SHAFT,DRIVE,1ST
13127-1024
Unavailable
2
2ND GEAR,DRIVE,16T
13129-1173
Unavailable
3
3RD GEAR,DRIVE,20T
13129-1174
Unavailable
4
4TH GEAR,DRIVE,21T
13129-1175
Unavailable
5
TOP GEAR,DRIVE,24T
13129-1128
Unavailable
6
WASHER,22.3X27X0.5
92022-198
$5.52
7
WASHER,PLAIN
92022-281
Unavailable
8
WASHER,TOOTHED,22.5X27X0.5
92024-039
$6.27
9
RING-SNAP,20X25.5X1.2
92033-025
$4.96
10
RING-SNAP
92033-032
$4.96
11
BEARING-NEEDLE
92046-1184
$21.25
12
SHAFT,OUTPUT
13128-1023
Unavailable
13
LOW GEAR,OUTPUT,40T
13129-1176
Unavailable
14
2ND GEAR,OUTPUT,28T
13129-1177
Unavailable
15
3RD GEAR,OUTPUT,27T
13129-1178
Unavailable
16
4TH GEAR,OUTPUT,22T
13129-1179
Unavailable
17
TOP GEAR,OUTPUT,19T
13129-1133
Unavailable
18
SPROCKET,ENGINE,15T
13144-1026
Unavailable
18
ENGINE SPROCKET 13T
13144-055
Unavailable
18
ENGINE SPROCKET,14T
13144-1006
Unavailable
18
SPROCKET,ENGINE,16T
13144-1028
Unavailable
19
NUT BEARING ADJUST
42045-008
Unavailable
20
WASHER,20.5X30X1,STEEL
92022-112
$8.86
21
WASHER,25.3X30X0.5
92022-159
$8.58
22
WASHER,TOOTHED,22.5X31X0.5
92024-038
$6.22
23
WASHER,LOCK
92024-065
Unavailable
24
COLLAR,25X32X10.5
92143-1370
$14.50
25
RING-SNAP,24MM
92033-026
$8.79
26
RING-SNAP,18MM
92033-029
$9.82
27
BEARING-NEEDLE,KT202614
92046-1170
$18.16
28
RING-O
92055-035
$5.00
