1980 Kawasaki KDX400 Swing Arm/shock Absorbers Diagram

← All diagrams

Find the part on the Swing Arm/shock Absorbers diagram for your 1980 Kawasaki KDX400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

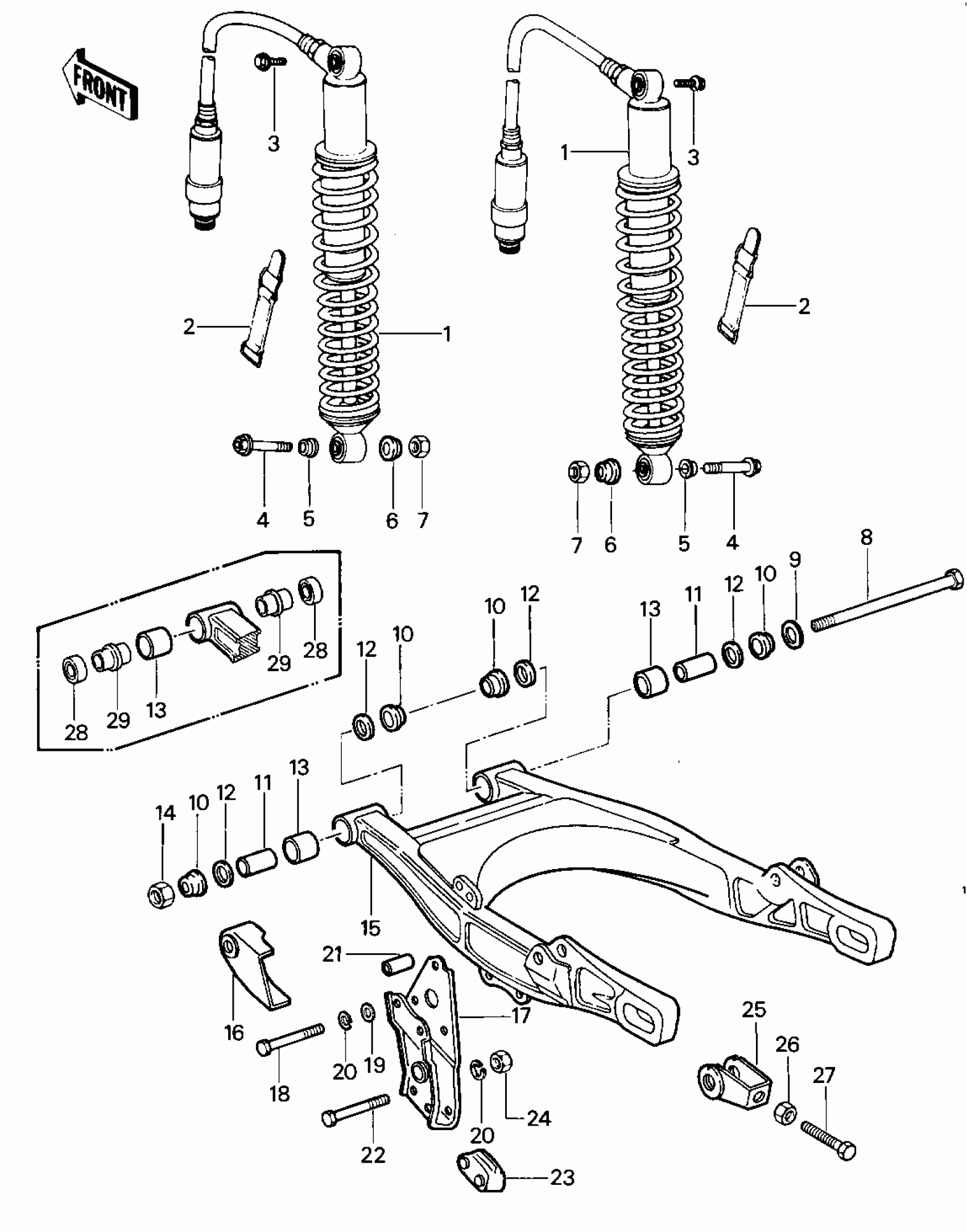

1980 Kawasaki KDX400 Swing Arm/shock Absorbers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ABSBR RR

45014-4004

1
Out of stock

2

BAND,FUEL TANK

92072-076

1
Out of stock

3

BOLT,FLANGED,6X10

92001-1034

1
Out of stock

4

BOLT,HEX HEAD,10X48

92001-1029

1
Out of stock

5

COLLAR

92027-1029

1
Out of stock

6

COLLAR

92027-1030

1
Out of stock

7

NUT,LOCK,10MM

92019-021

1
Out of stock

8

SHAFT,SWING ARM

33032-4001

1
Out of stock

9

WASHER PLAIN 14MM

411B1400

1
Out of stock

10

CAP,SWING ARM

11012-1099

1
Out of stock

11

SLEEVE,SWING ARM

42036-4002

1
Out of stock

12

SHIM,SWING ARM

92025-1116

1
Out of stock

13

BUSHING,SWING ARM

92028-4001

1
Out of stock

14

NUT-LOCK,14MM

92019-011

1
Out of stock

15

SWING ARM

33001-4001

1
Out of stock

16

GUIDE,CHAIN

12053-1047

1
Out of stock

17

CHAIN GUIDE

55020-4001

1
Out of stock

18

BOLT-UPSET

112G0660

1
Out of stock

19

WASHER PLAIN 6MM

411B0600

1
Out of stock

20

WASHER SPRING 6MM

461F0600

1
Out of stock

21

COLLAR

92027-4003

1
Out of stock

22

BOLT 6X35

110R0635

1
Out of stock

23

GUIDE,CHAIN,REAR

12053-1011

1
Out of stock

24

NUT 6MM

311B0600

1
Out of stock

25

ADJUSTER,CHAIN

33040-4001

1
Out of stock

26

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

27

BOLT,CHAIN ADJUSTER

92001-1027

1
Out of stock
