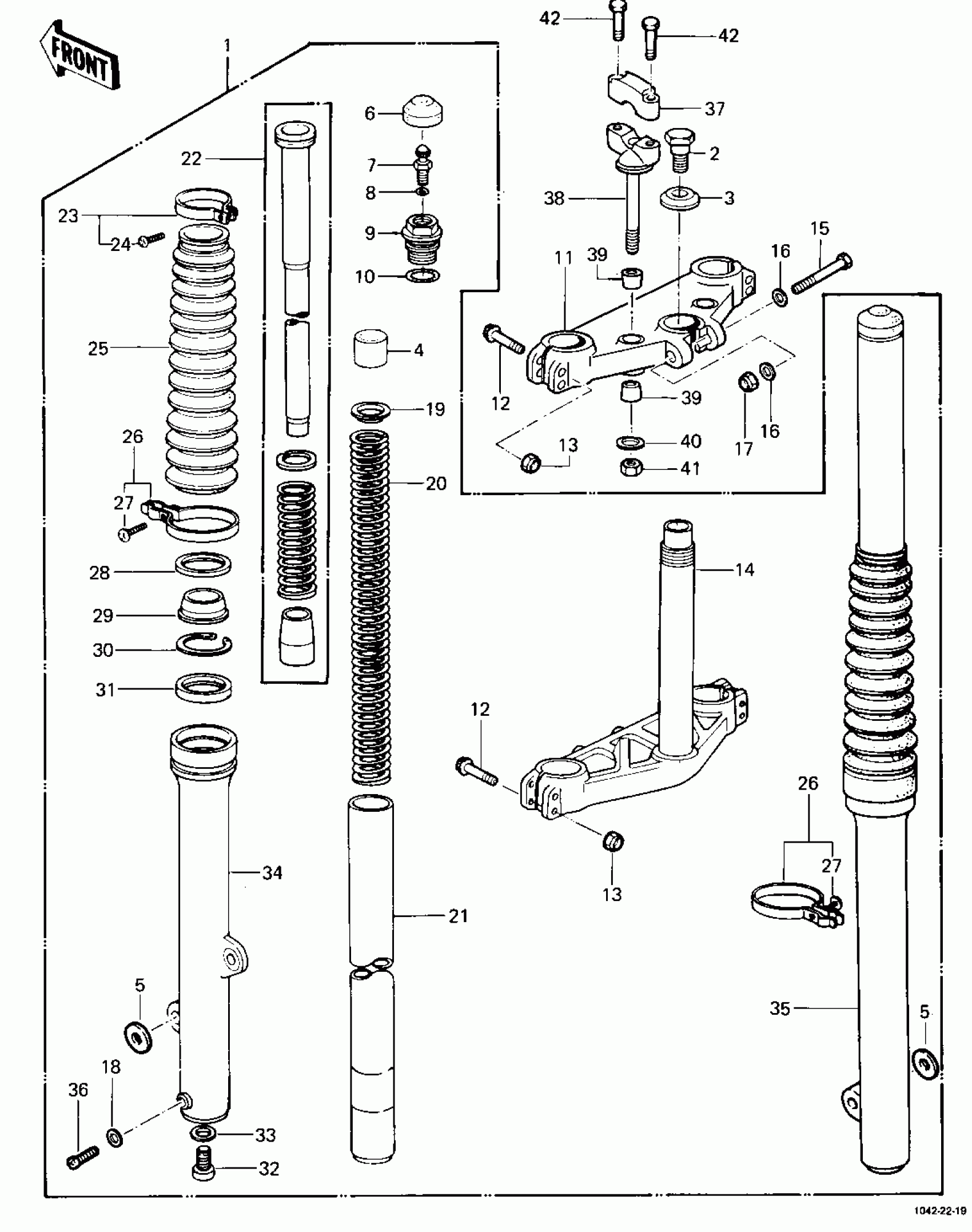

Kawasaki KDX400 FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT

44001-4001

$983.00

2

BOLT,FORK TOP

44041-065

Unavailable

3

WASHER

44043-052

$7.47

4

SPACER,FORK SPRING

92026-4002

$5.14

5

WASHER,FORK

92022-4006

Unavailable

6

CAP,RUBBER,FORK TOP

44029-1009

Unavailable

7

VALVE ASSY,AIR

16126-1003

Unavailable

8

"0" RING,AIR VALVE

92055-1018

Unavailable

9

CAP,FORK TOP

44029-1008

Unavailable

10

RING-O,FORK TOP CAP

92055-1050

$4.71

11

HEAD,STEERING STEM

44039-4004

$93.57

12

BOLT,HEX HEAD,8X53

92001-1060

Unavailable

13

NUT,8M/M

44007-1002

Unavailable

14

HOLDER-FORK UNDER

44037-1066

$492.31

15

BOLT,HEX HEAD,8X57

92001-1141

Unavailable

16

WASHER PLAIN 8MM

410B0800

Unavailable

17

NUT,LOCK,8MM

92015-1124

$4.10

18

GASKET,FORK DRAIN PLUG

44045-002

$3.95

19

GUIDE-FORK SPRING

44028-1003

Unavailable

20

SPRING,FORK INNER

44026-4001

$49.25

21

TUBE,FORK INNER

44013-4001

$251.51

22

CYLINDER-FORK

44022-4001

$80.98

23

BAND,BOOT

92072-1008

$11.32

24

SCREW-PAN-CROS

220B0420

Unavailable

25

BOOT,FORK

49006-4002

$51.80

26

CLAMP,BOOT,L.H

92072-1026

Unavailable

27

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

28

CASE,DUST SHIELD

32099-1010

Unavailable

29

DUST SHIELD,FORK OU T

92093-1022

Unavailable

30

SNAP RING,FORK OUT TU

92033-1035

Unavailable

31

OIL SEAL,FORK OUT TUB

92049-1042

Unavailable

32

BOLT,FORK CYLINDER

92001-1186

$2.66

33

GASKET,FORK CYLINDER BOLT

11009-1127

$3.95

34

TUBE,LH,FORK OUTER

44005-4001

$161.13

35

TUBE,RH,FORK OUTER

44006-4001

$170.05

36

SCREW PAN HEAD 4X8

220B0408

Unavailable

37

HOLDER-HANDLE,UPP

46012-008

$33.69

38

HOLDER-HANDLE,LWR

46012-010

$31.36

40

WASHER-HANDLEBAR FIT

92022-196

Unavailable

41

NUT,LOCK,10MM

92019-021

$4.59

42

BOLT 8X38

92001-1405

$12.52
