Description

Price

1

BOLT-FLANGED,8X14

130G0814

$2.12

2

BODY,MUFFLER,F.BLACK

18001-1110

$439.80

3

SPRING-CONNECTOR

18071-003

$11.49

4

NUT,FLANGED,8MM

92015-1014

$0.65

5

"0" RING,55MM,MUFFLER

92055-1057

$17.72

6

DAMPER,MUFFLER FITING

92075-1060

Unavailable

8

BOLT-FLANGED,8X35

130G0835

$1.42

9

BOLT-FLANGED,8X55

130G0855

Unavailable

10

MUFFLER ASSY,F.BLACK

18001-1109

$219.88

11

BOLT-FLANGED,6X8

130B0608

$0.67

12

BAFFLE PIPE,MUFFLER

49099-1011

$110.68

16

NUT,LOCK,8MM

92015-1124

$5.42

17

WASHER,8.5X35X2.3

92022-298

Unavailable

18

COLLAR,FUEL TANK FITT

92027-1134

$10.28

19

CLAMP

92037-177

Unavailable

20

DAMPER,MUFFLER

92075-1196

Unavailable

21

SEAL,MUFFLER

92093-1014

Unavailable

22

SCREW-PAN-CROS,5X25

220B0525

$3.67

23

NUT,LOCK,8MM

92015-1124

$5.42

24

WASHER,8.5X35X2.3

92022-298

Unavailable

26

"0" RING,50.8MM,MUFL

92055-1077

Unavailable

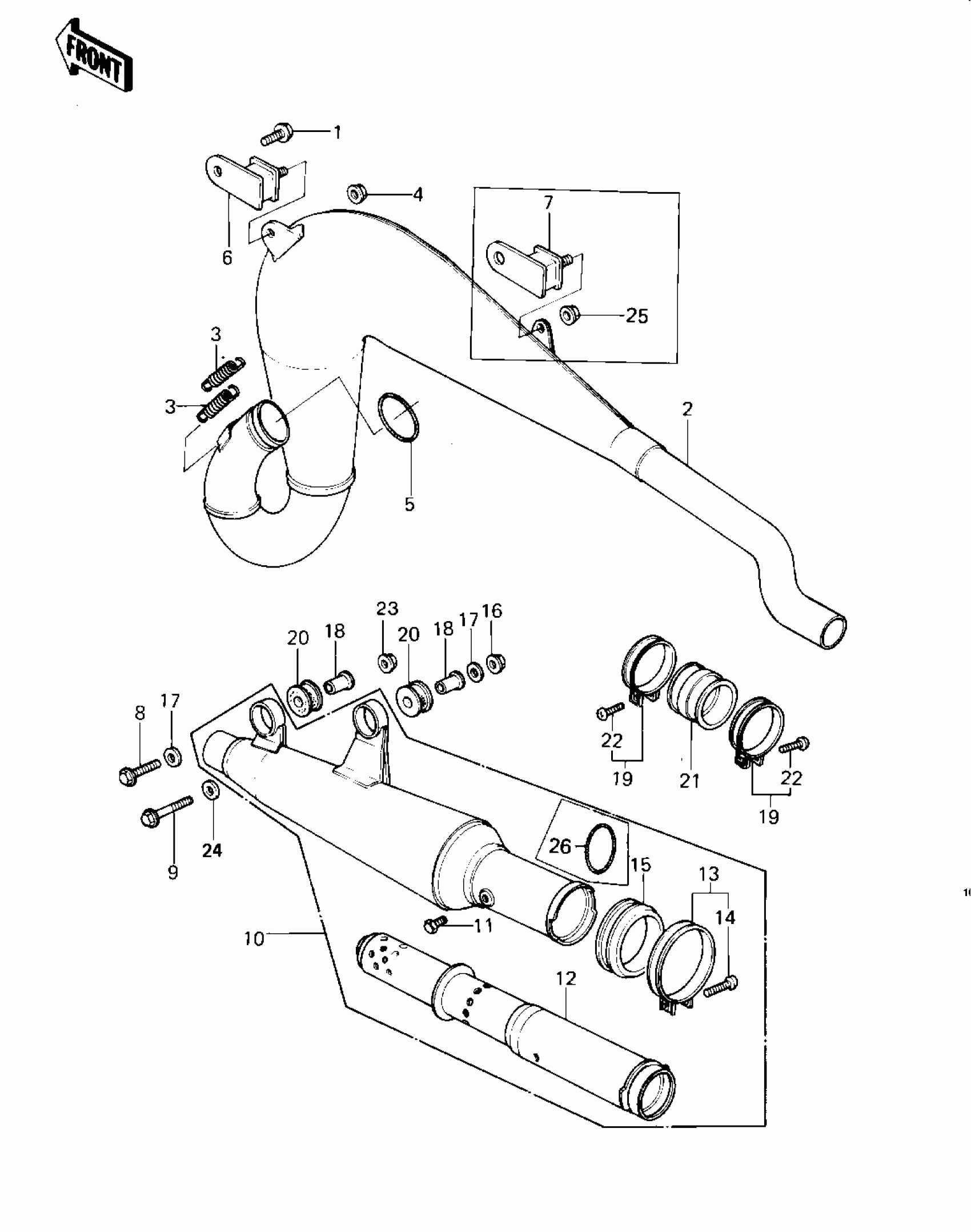

Kawasaki KDX400 MUFFLER Diagram

BOLT-FLANGED,8X14

BODY,MUFFLER,F.BLACK

SPRING-CONNECTOR

NUT,FLANGED,8MM

"0" RING,55MM,MUFFLER

DAMPER,MUFFLER FITING

BOLT-FLANGED,8X35

BOLT-FLANGED,8X55

MUFFLER ASSY,F.BLACK

BOLT-FLANGED,6X8

BAFFLE PIPE,MUFFLER

NUT,LOCK,8MM

WASHER,8.5X35X2.3

COLLAR,FUEL TANK FITT

CLAMP

DAMPER,MUFFLER

SEAL,MUFFLER

SCREW-PAN-CROS,5X25

NUT,LOCK,8MM

WASHER,8.5X35X2.3

"0" RING,50.8MM,MUFL
