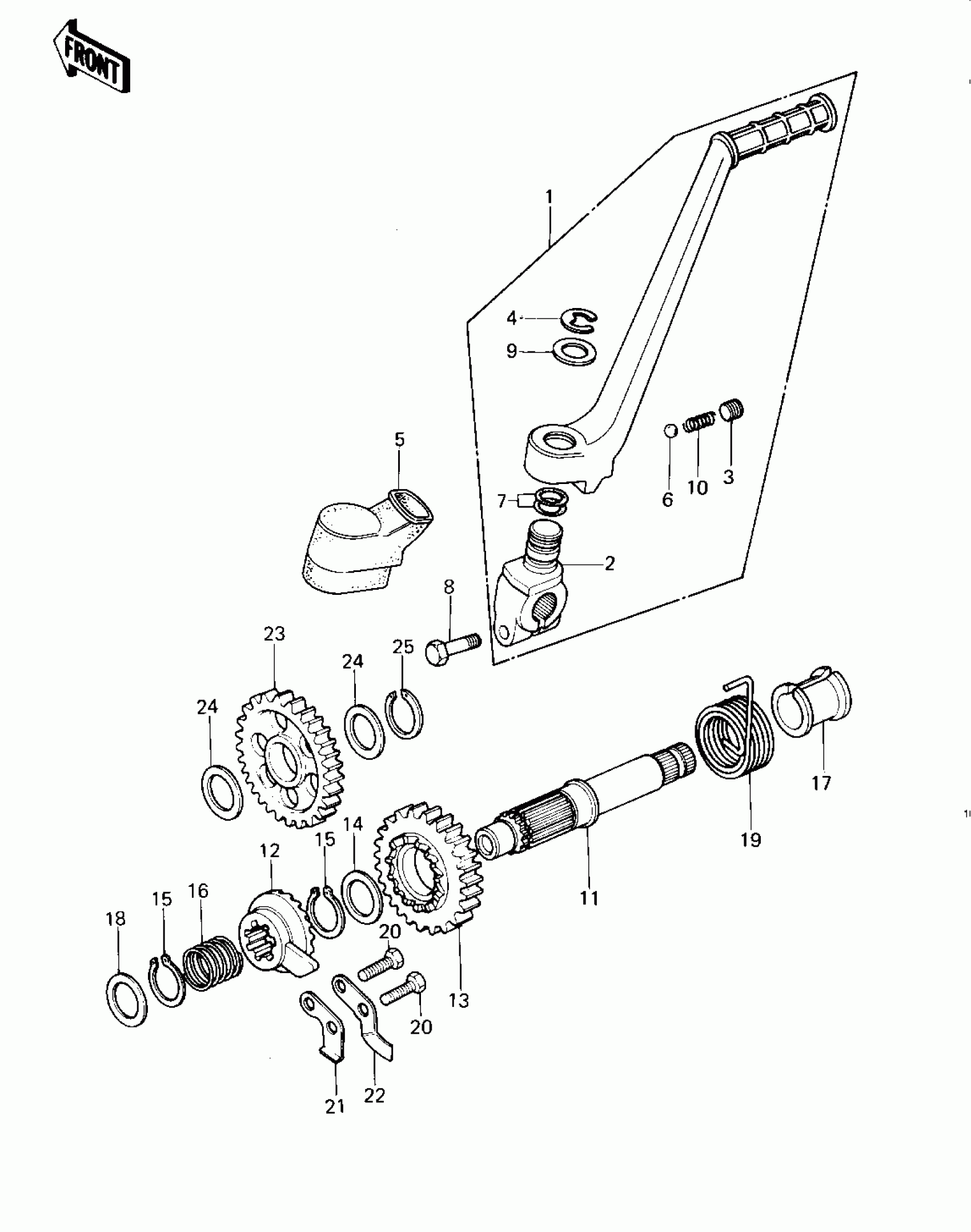

Kawasaki KDX400 KICKSTARTER MECHANISM Diagram

#

Description
Price

1

PEDAL ASSY,KICK

13064-5003

Unavailable

2

BOSS,KICKSTARTER

13061-1007

Unavailable

3

SCREW-SET-SOCKET,8X8

290Q0808

$4.78

4

CIR CLIP

482K0100

$0.70

5

BOOT,KICKSTARTER

49006-1006

Unavailable

6

BALL-STEEL,1/4

600A0800

$0.62

7

O RING,15MM

670B2015

$1.42

8

BOLT,8X28

92001-1042

$6.69

9

WASHER,15.2X20X1

92022-1019

$5.23

10

SPRING,KICK PEDAL

92081-020

$4.26

11

SHAFT,KICK

13066-1009

Unavailable

12

RATCHET

13078-007

$75.68

13

GEAR,KICKSTARTER,25T

59051-1016

$107.03

14

WASHER,25.3X30X0.5

92022-159

$8.58

15

RING-SNAP,24MM

92033-026

$8.79

16

SPRING

92081-097

$11.80

17

GUIDE,KICKSTARTER

13070-007

Unavailable

18

WASHER,20.5X25.5X0.5

92022-252

$6.22

19

SPRING,KICKSTARTER

92082-003

$28.46

20

BOLT-UPSET

112G0618

$1.01

21

STOPPER,KICKSTARTER

13072-014

$11.60

22

GUIDE-KICK

13206-1003

$9.93

23

GEAR,IDLE,27T

59051-1017

$107.03

24

WASHER,20.5X25.5X0.5

92022-252

$6.22

25

RING-SNAP,18MM

92033-029

$9.82
