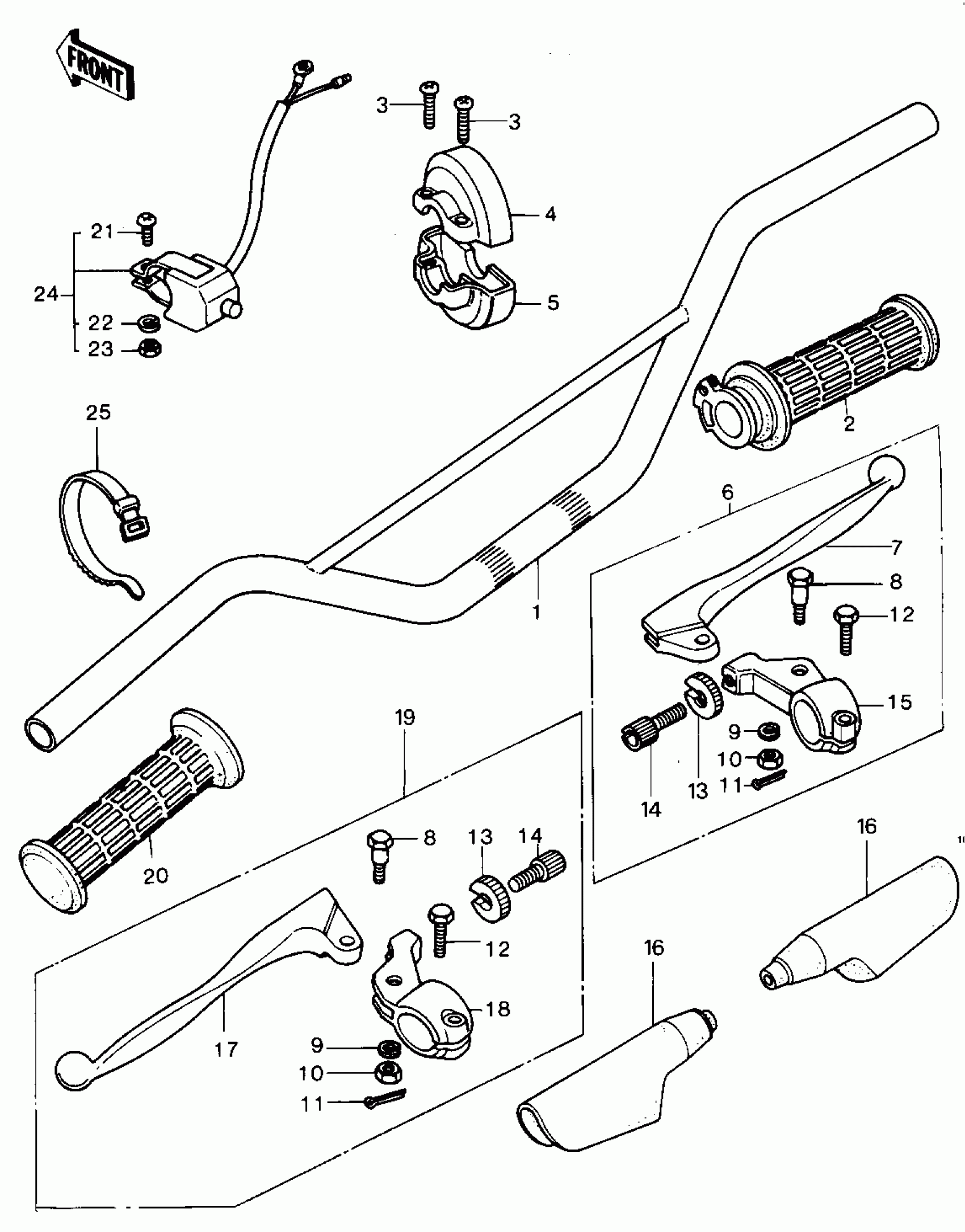

Kawasaki KDX400 HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

46003-4001

Unavailable

2

GRIP ASSY,THROTTLE

46019-1002

Unavailable

3

SCREW-PAN-CROS

220B0520

$0.68

6

LEVER ASSY,FRONT BRA

46076-1003

Unavailable

7

FRONT BRAKE LEVER

46058-018

$57.72

8

BOLT,HEX HEAD,6MM

92001-140

Unavailable

9

WASHER SPRING 6MM

461F0600

$0.69

10

NUT,LOCK,6MM

92019-008

$4.26

11

PIN-COTTER,1.6X15

550D1615

$2.51

12

BOLT-UPSET

112N0620

$2.12

13

NUT,CABLE ADJUST

46056-006

$8.94

14

SCREW,CABLE ADJUST,8MM

46055-009

$19.07

15

HOLDER,F.BRAKE LEVER

46060-010-21

$69.29

16

DUST COVER

46071-003

Unavailable

17

LEVER, CLUTCH

46092-021

Unavailable

18

HOLDER,CLUTCH LEVER

46094-014-21

$60.89

19

LEVER ASSY,CLUTCH

46076-1004

Unavailable

20

GRIP ASSY,L.H GRIP

46075-031

Unavailable

21

SCREW PAN HEAD 3X14

220E0314A

Unavailable

22

WASHER SPRING 3MM

461F0300

$0.46

23

NUT-HEX

311B0300

$0.40

24

SWITCH,ASSY,ENG STOP

27010-1018

Unavailable

25

BAND

92072-3505

Unavailable
