Description

Price

1

FENDER-FR,LIME GREEN

35004-4001-7F

Unavailable

2

BOLT-UPSET

112G0618

$1.01

3

WASHER SPRING 6MM

461F0600

$0.69

4

WASHER,6.5X20X1.6

92022-125

$1.40

5

FENDER-RR,L.GREEN

35022-4001-7F

Unavailable

6

BOLT-UPSET,6X20

112G0620

$2.12

7

COLLAR

92027-194

$5.52

8

DAMPER,CASE

92075-222

$7.34

9

NUT,LOCK,6MM

92019-008

$4.26

10

BOLT

114G0836

Unavailable

11

WASHER CHNG DRUM LEV

92022-091

Unavailable

12

NUT,LOCK,8MM

92015-1124

$5.42

13

FLAP,FENDER

35019-4001

Unavailable

14

BOLT-UPSET,6X12

112G0612

$1.45

15

WASHER-PLAIN,7MM

92022-240

Unavailable

16

WASHER SPRING 6MM

461F0600

$0.69

17

NUT 6MM

311B0600

$0.93

18

COVER,AIR BOX

14025-4005

Unavailable

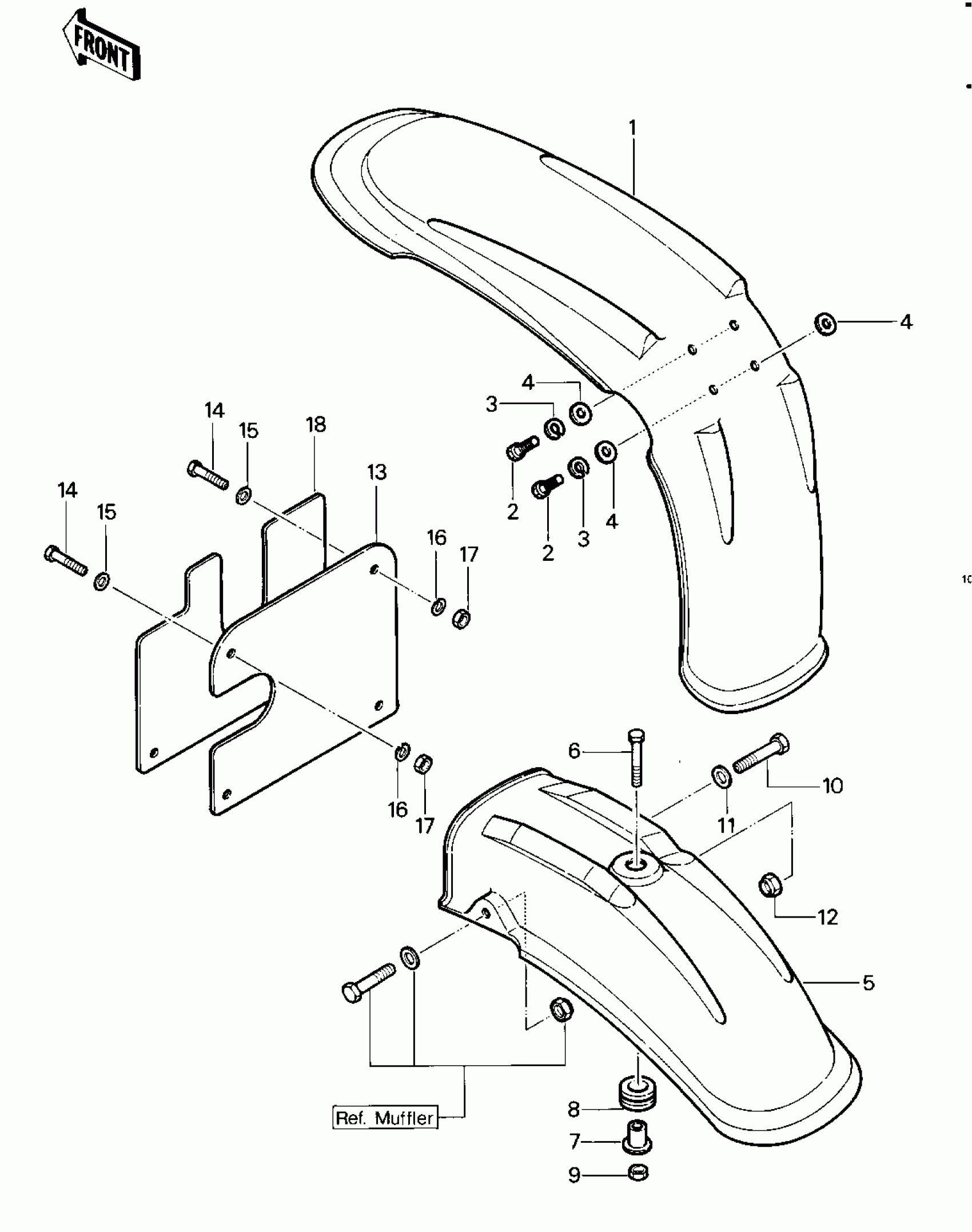

Kawasaki KDX400 FENDERS Diagram

FENDER-FR,LIME GREEN

BOLT-UPSET

WASHER SPRING 6MM

WASHER,6.5X20X1.6

FENDER-RR,L.GREEN

BOLT-UPSET,6X20

COLLAR

DAMPER,CASE

NUT,LOCK,6MM

BOLT

WASHER CHNG DRUM LEV

NUT,LOCK,8MM

FLAP,FENDER

BOLT-UPSET,6X12

WASHER-PLAIN,7MM

WASHER SPRING 6MM

NUT 6MM

COVER,AIR BOX
